Festo 191315 Double Solenoid Valve
Gebraucht
Auf Lager2 EinheitenVersandbereit

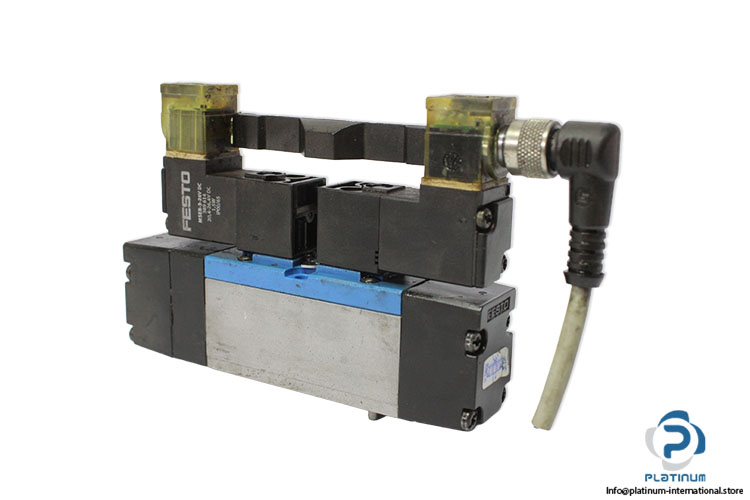

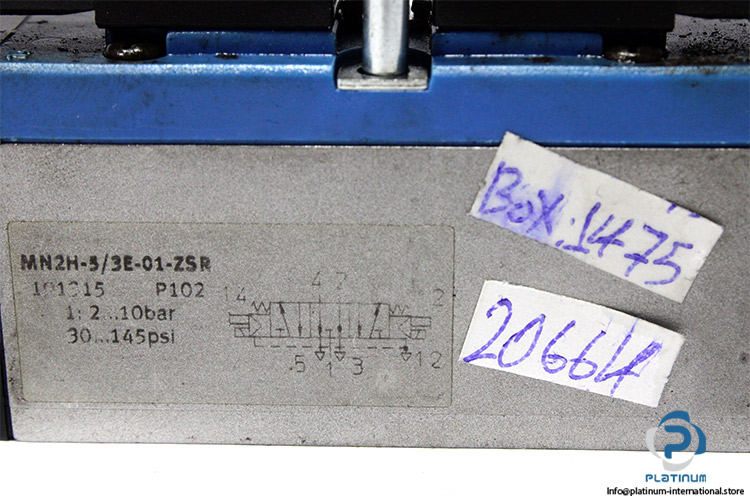

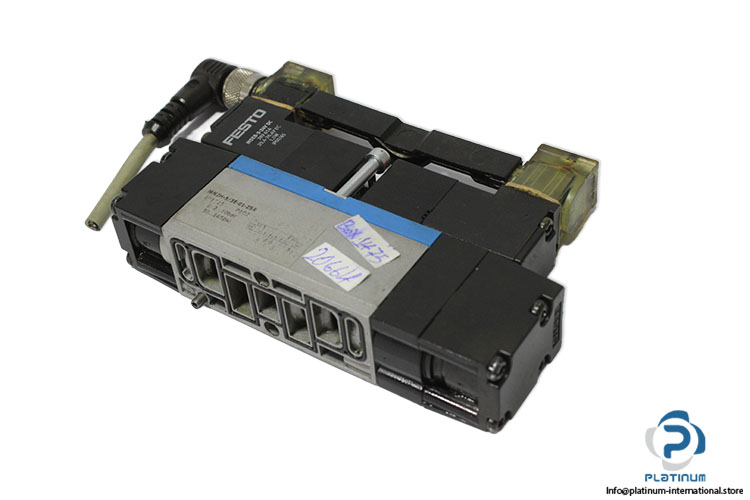

Double Solenoid Valve The FESTO MN2H-5/3E-D-01-ZSR is a 5/3-way pneumatic double solenoid valve with 1,000 l/min flow rate, supplied with FESTO 389614 solenoid coils.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 191315 |
| Fluid | Air |
| Design | Piston Slide |
| Nominal Size | 8 mm |
| Function | 5/3 Way Exhausted |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 10 bar |
| Flow Rate | 1,000 l/min |
| Pneumatic Connection | Sub-Base |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -10 … 50 °C |

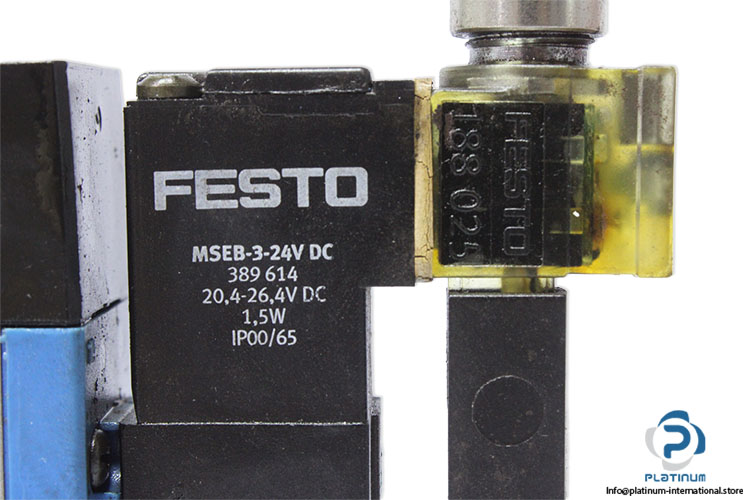

| Attachment | FESTO 389614 SOLENOID COIL |
| Solenoid Coil Manufacturer | FESTO |
| Attachment Type | Solenoid Coil |
| Solenoid Coil Model | MSEB-3-24V DC |
| Solenoid Coil Part No. | 389614 |
| Solenoid Coil Voltage | 20,4 ... 26,4 V DC |
| Solenoid Coil Power Consumption | 1,5 W |
| Solenoid Coil Protection Class | IP00/IP65 |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1103224 |
| Weight | 0,35 |
