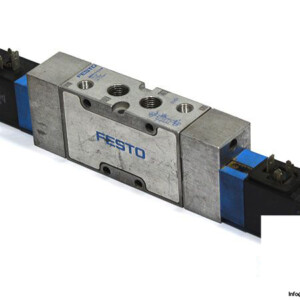

Festo 19136 Double Solenoid Valve
Neu
Auf Lager10 EinheitenVersandbereit
95,00$
DOUBLE SOLENOID VALVE
FESTO JMVH-5-1/4-B 5/2 valve with MSV-3 coil offers fast response, robust aluminium body, and reliable electrical actuation for pneumatic air systems.5/2AircoilControlDoubleElectricalFestoflowG1/4HighIndustrialJMVH-5-1/4-BMSV-3PneumaticsolenoidsolutionValve
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

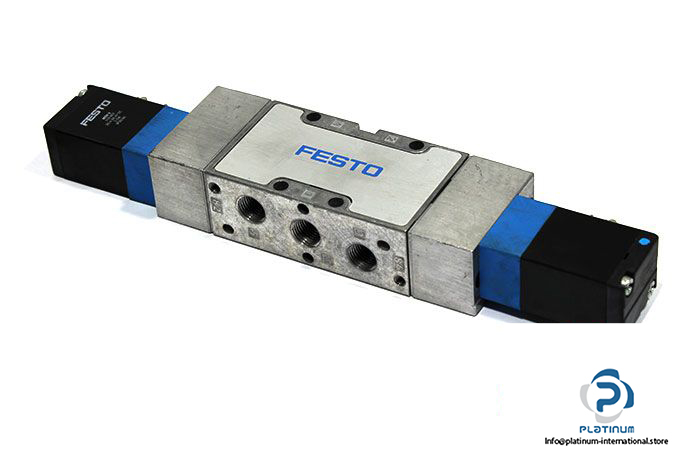

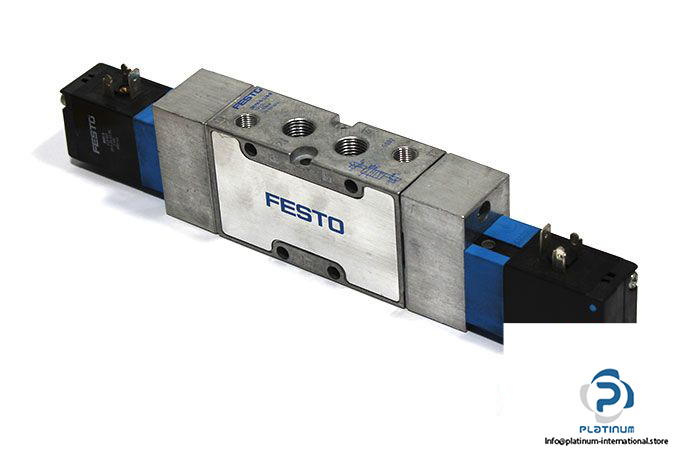

FESTO JMVH-5-1/4-B DOUBLE SOLENOID VALVE WITH MSV-3 COIL
The FESTO JMVH-5-1/4-B is a high-performance 5/2 double solenoid valve designed for precise pneumatic applications. With a piston gate design and durable aluminium housing, it delivers reliable switching and fast airflow response. Supplied with the FESTO MSV-3 solenoid coil for optimal electrical control.
Manufacturer: FESTO
Type: Double Solenoid Valve

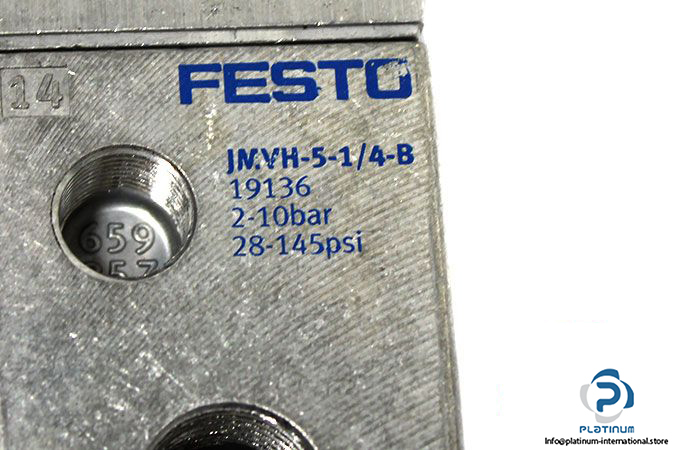

Model: JMVH-5-1/4-B
Part No.: 19136
Valve Technical Information
- Fluid: Air
- Design: Piston gate valve

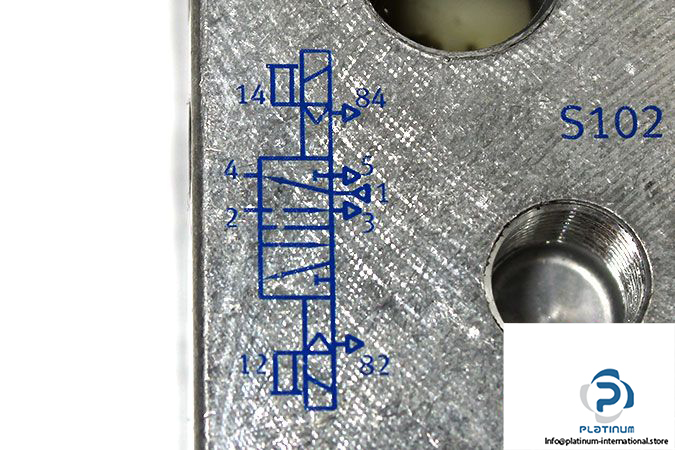

- Function: 5/2 double solenoid
- Type of Actuation: Electrically
- Operating Pressure: 2 … 10 bar
- Nominal Flow Rate: 1600 l/min
- Pneumatic Connection: G1/4
- Material: Die-cast aluminium
- Ambient Temperature: -5 / 50 °C

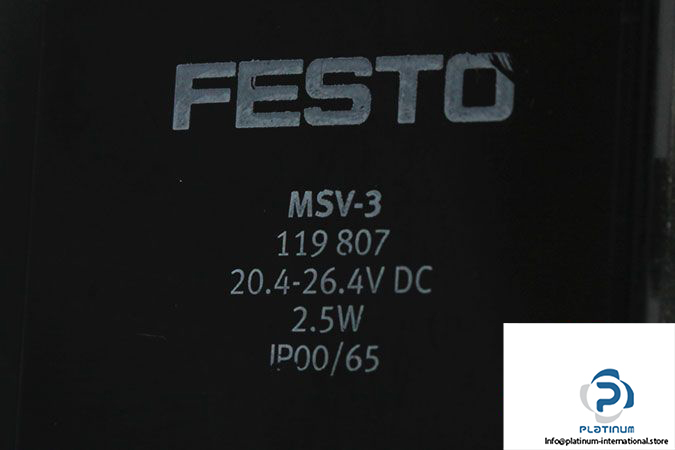

Attachment: FESTO MSV-3 SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSV-3
Part No.: 119807
Coil Technical Information
- Supply Voltage: 20.4 … 26.4 V DC
- Power Consumption: 2.5 W
- Protection Class: IP00 / IP65
