Festo 19170 25X25 Linear Drive Unit
Gebraucht
Auf Lager1 EinheitVersandbereit
Linear Drive Unit
Festo FEN-25-25-GF with sliding guide, 25 mm stroke and G1/8 ports, supplied with DSNU-25-25-PPV-A ISO cylinder for double-acting motion in precision automation systems.ActingActuatorCylinderDoubleDriveDSNU-25-25-PPV-AFEN-25-25-GFFestoG1/8GuideIndustrialISOLinearPneumaticSlidingUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

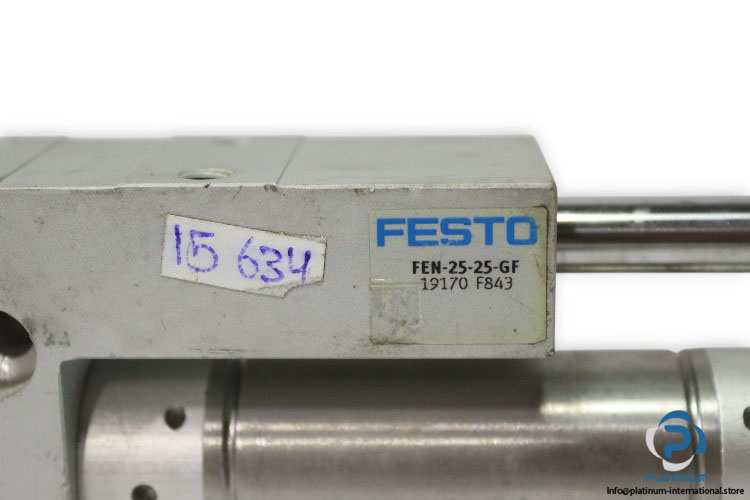

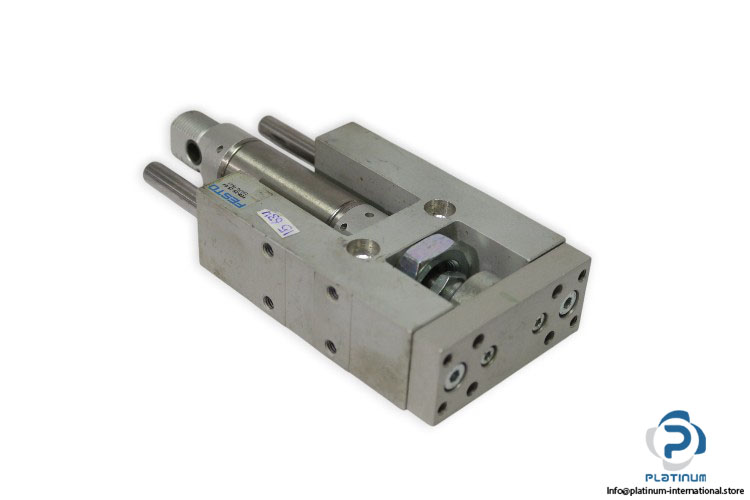

Festo FEN-25-25-GF Linear Drive Unit with ISO Cylinder DSNU-25-25-PPV-A
The Festo FEN-25-25-GF Linear Drive Unit is a compact, high-performance solution for precise linear motion in industrial automation systems. With a sliding guide design, robust structural construction, and flexible mounting options, it ensures reliability in a wide range of applications. Delivered with a Festo DSNU-25-25-PPV-A ISO cylinder for double-acting operation, it offers consistent force output and smooth motion control.
Manufacturer: Festo
Type: Linear Drive Unit
Model: FEN-25-25-GF
Part No.: 19170
Ref. Code: F843
Technical Information “ Linear Drive Unit
- Diameter: 25 mm
- Stroke: 25 mm
- Mounting Position: Any
- Guide: Sliding Guide
- Structural Design: Guide
- Ambient Temperature: -20 °C to 80 °C
- Port Size: G1/8

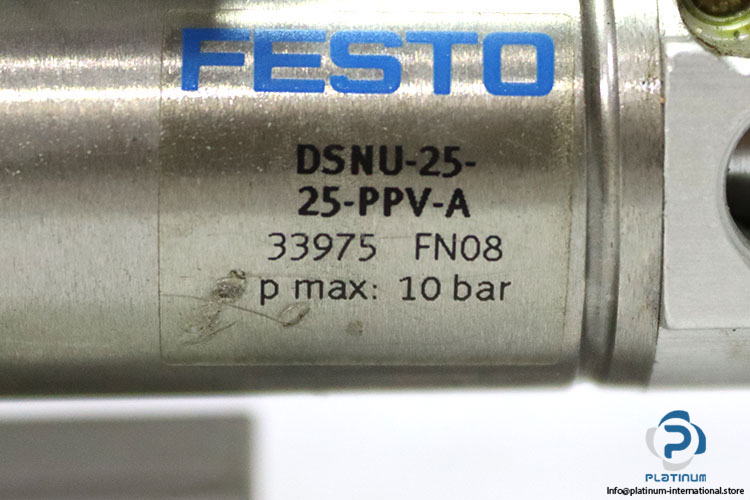

Attachment “ ISO Cylinder
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-25-PPV-A
Part No.: 33975
Ref. Code: FN08
- Mode of Operation: Double-Acting
- Piston Diameter: 25 mm
- Stroke: 25 mm
- Pressure: 10 bar max.
- Connection: G1/8
