Festo 19198 ISO Cylinder
Neu
Auf Lager2 EinheitenVersandbereit
Iso Cylinder
The FESTO DSNU-16-10-P-A ISO cylinder features a 10 mm stroke, 16 mm piston diameter, and double-acting operation, ideal for precision industrial pneumatic systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

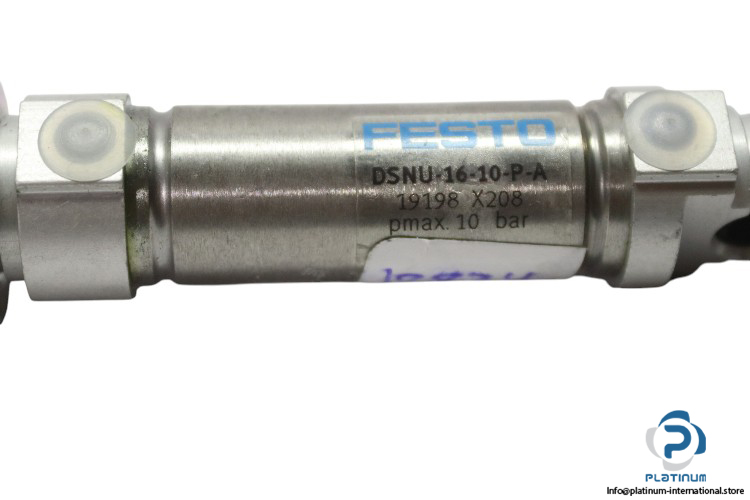

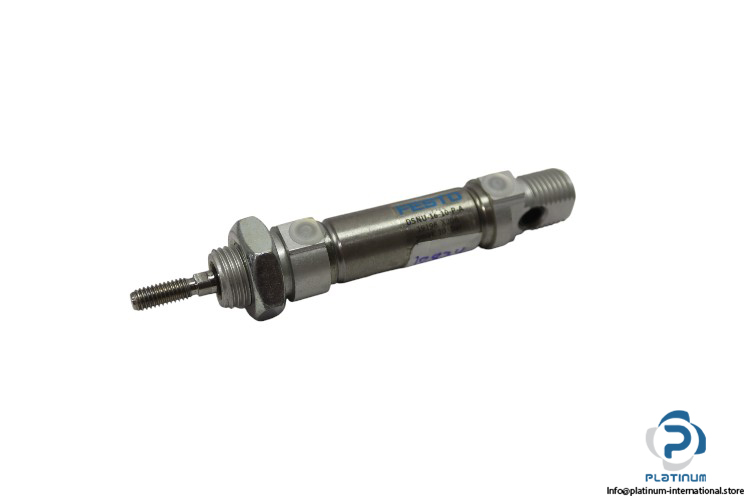

FESTO DSNU-16-10-P-A ISO Cylinder
The FESTO DSNU-16-10-P-A (Part No. 19198) is a high-performance ISO cylinder designed for compact and reliable motion control. Featuring elastic cushioning, proximity sensor compatibility, and a robust construction, it is ideal for precision industrial pneumatic applications.
Manufacturer: FESTO
Type: Iso Cylinder
Model: DSNU-16-10-P-A
Part No.: 19198
| Stroke | 10 mm |
| Piston Diameter | 16 mm |
| Piston Rod Thread | M6 |
| Pneumatic Connection | M5 |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Piston Rod End | External thread |
| Structural Design | Piston, Piston rod, Cylinder barrel |
| Position Sensing | For proximity sensor |
| Variants | Piston rod at one end |
| Operating Pressure | 0.1 MPa...1 MPa / 1 bar...10 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air |
| Ambient Temperature | -20 ... 80 °C |
