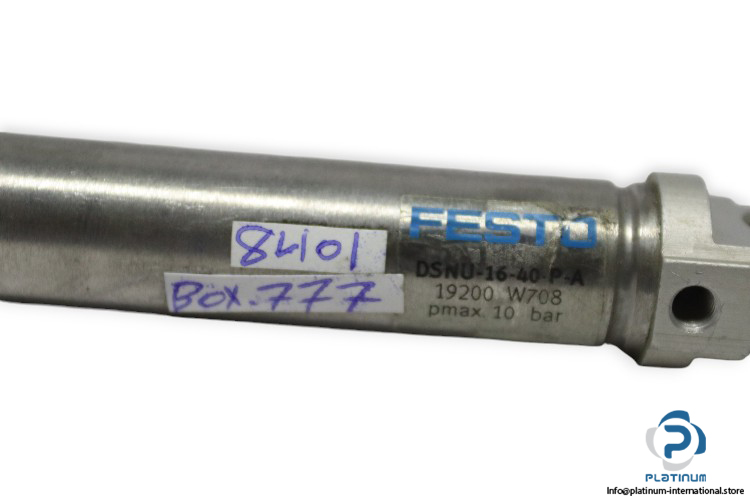

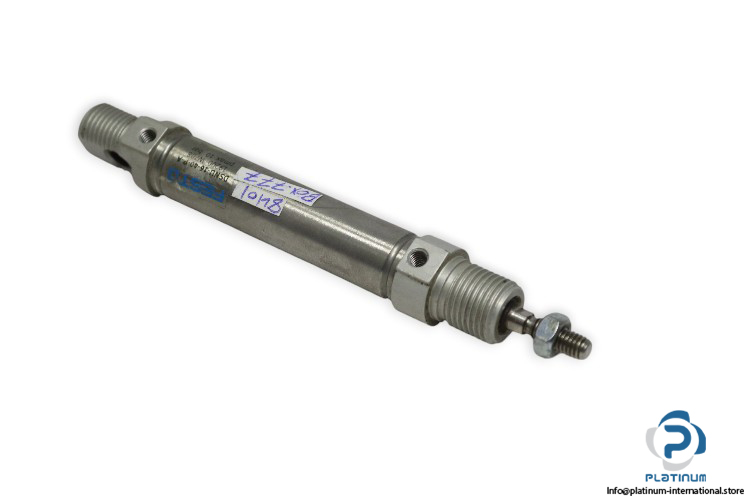

Festo 19200 ISO Cylinder

Manufacturer: FESTO
Type: ISO cylinder
Model: DSNU-16-40-P-A
Part No.: 19200

Stroke Length: 40 mm
Piston Diameter: 16 mm
Piston rod thread: M6
Theoretical force at 6 bar, advancing: 120.6 N
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Variant: Piston rod at one end
Pneumatic Connection: 5 mm
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: High-alloy stainless steel
Temperature: -20 … 80 °C
