Festo 19210 ISO Cylinder
Neu
Auf Lager1 EinheitVersandbereit
ISO Cylinder
FESTO DSNU-20-50-P-A ISO Cylinder is a double-acting pneumatic actuator with a 20 mm piston diameter, 50 mm stroke, and G1/8 port size. Built with a high-alloy stainless steel cylinder barrel, it provides excellent corrosion resistance and smooth operation for industrial automation applications.20ActuatorAirAutomationControlCylinderdouble-actingDsnuFestoHigh-AlloyIndustrialmmMotionPistonPneumaticSeriesstainlessSteel
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

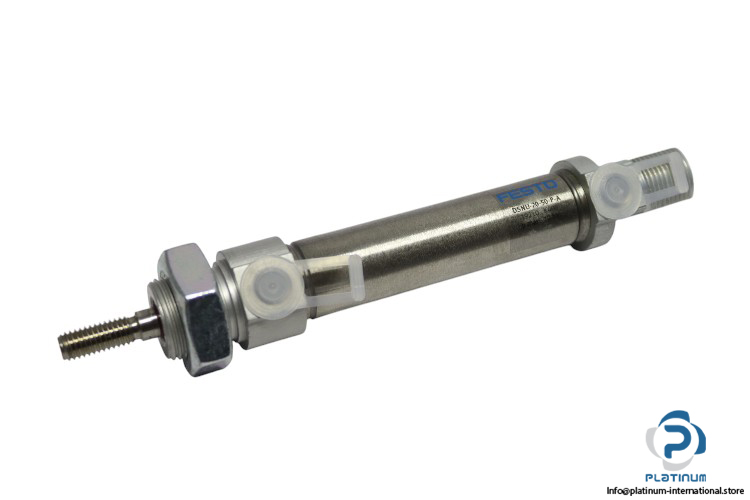

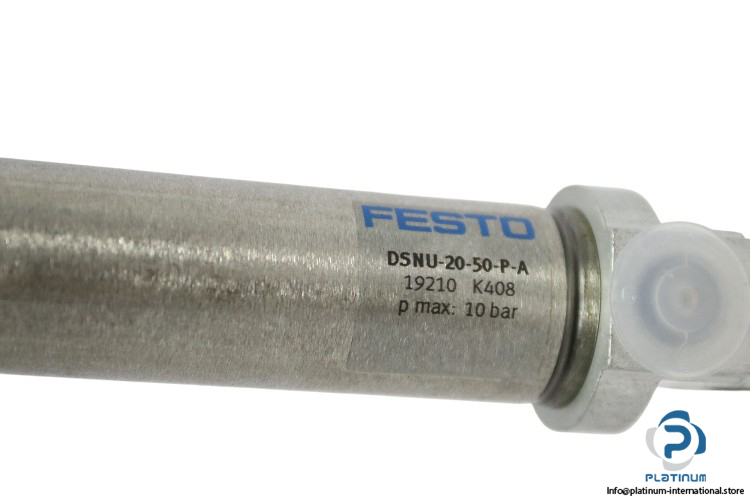

FESTO DSNU-20-50-P-A ISO Cylinder
The FESTO DSNU-20-50-P-A ISO Cylinder is a high-quality pneumatic actuator designed for precision and durability. Engineered with a high-alloy stainless steel cylinder barrel, it offers excellent corrosion resistance and long service life. This double-acting cylinder features elastic cushioning rings at both ends for smooth operation, making it ideal for industrial automation and motion control applications.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSNU-20-50-P-A
- Part No.: 19210
Technical Specifications
- Piston Diameter: 20 mm
- Stroke: 50 mm
- Rod Diameter: 8 mm
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensor
- Operating Pressure: 1 bar … 10 bar
- Ambient Temperature: -20 °C … 80 °C
- Mode of Operation: Double acting
- Material of Cylinder Barrel: High-alloy stainless steel
- Port Size: G1/8
