Festo 19220 ISO Cylinder
Gebraucht
Auf Anfrage verfügbar
ISO Cylinder
The Festo DSNU-25-40-P-A is a double-acting ISO cylinder with a 25 mm bore and 40 mm stroke, featuring elastic end cushioning and stainless steel construction for reliable pneumatic performance.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

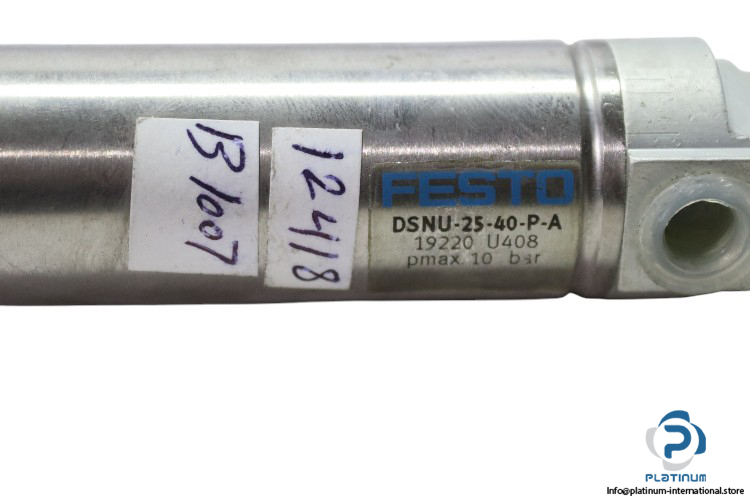

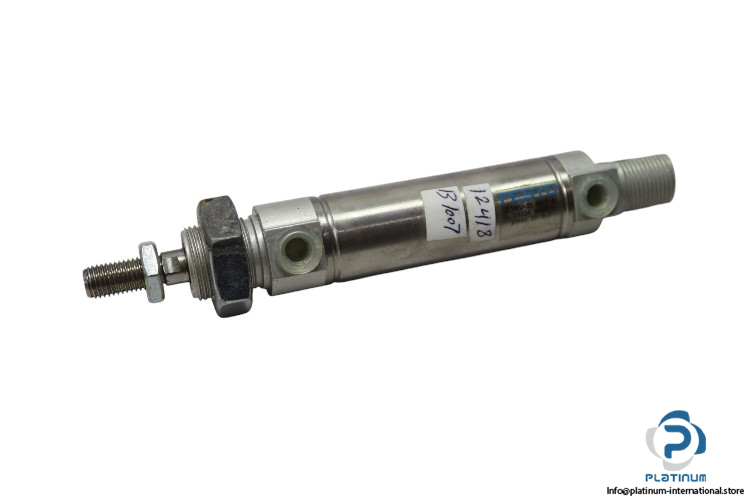

Festo DSNU-25-40-P-A “ ISO Cylinder
The Festo DSNU-25-40-P-A is a robust ISO cylinder designed for reliable pneumatic actuation in automated systems. Featuring a stainless steel piston rod and barrel, this double-acting cylinder provides precise and durable performance under various industrial conditions.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-25-40-P-A
Part No.: 19220
| Bore Diameter | 25 mm |
| Stroke | 40 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Variants | Piston rod at one end |
| Mode of Operation | Double-acting |
| Shape | Circular |
| Max. Operating Pressure | 10 bar |
| Ambient Temperature | -20 to 80 °C |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR |
| Material Piston Rod | High-alloy stainless steel |
| Material Cylinder Barrel | High-alloy stainless steel |
