Festo 1922630 ISO Cylinder
Neu
Auf Lager1 EinheitVersandbereit
ISO Cylinder
FESTO DNC-50-30-PPV-A ISO Cylinder is a high-precision pneumatic actuator with a 50 mm bore and 30 mm stroke. Designed for industrial applications, it features a double-acting operation, G 1/4 pneumatic connection, and a robust square shape for reliable performance.1/430mm50mmActuatorAirAutomationboreCompressedconnectioncontCylinderDNC-50-30-PPV-Adouble-actingFestoGhigh-pressureIndustrialISOMotionPneumaticStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

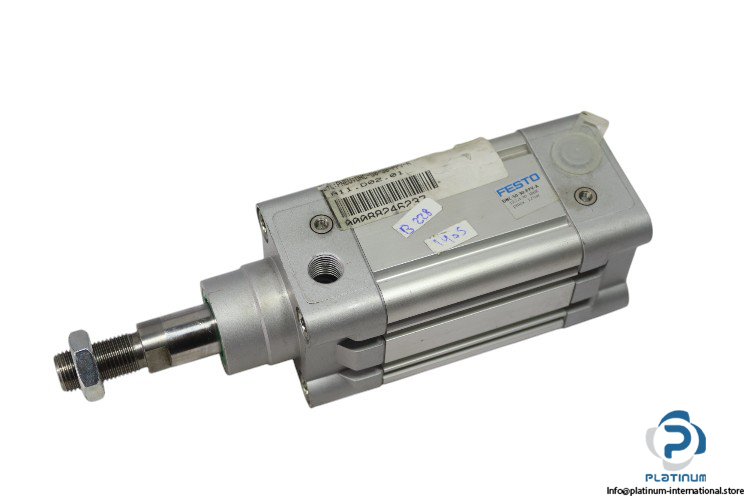

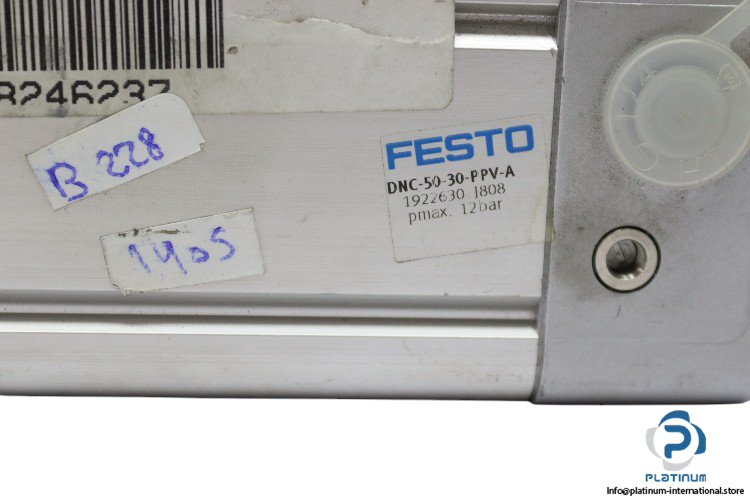

FESTO DNC-50-30-PPV-A ISO Cylinder
The FESTO DNC-50-30-PPV-A ISO Cylinder is a high-precision pneumatic actuator designed for industrial automation and motion control applications. Built to ISO standards, it offers reliability, durability, and efficient performance in demanding environments.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNC-50-30-PPV-A
Part No.: 1922630
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 30 mm |
| Bore x Stroke | 50 x 30 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 64 x 165 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
