Festo 19232 ISO Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
ISO Cylinder
The Festo DSNU-16-100-PPV-A pneumatic ISO cylinder features a 16 mm piston, 100 mm stroke, and double-acting design for reliable, precise motion control in automation systems.100mm16mmActingActuatorAirAutomationCompressedCylinderDoubleDsnuDSNU-16-100-PPV-AFestoIndustrialISOPistonPneumaticSeriesStroke
Neu
Auf Anfrage verfügbar
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

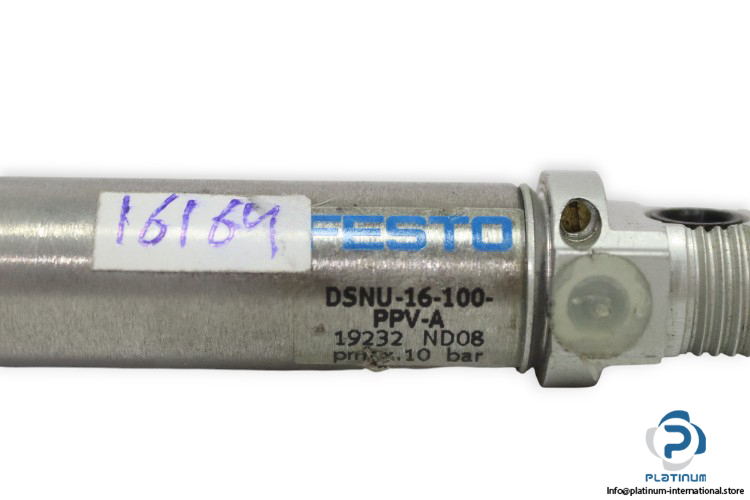

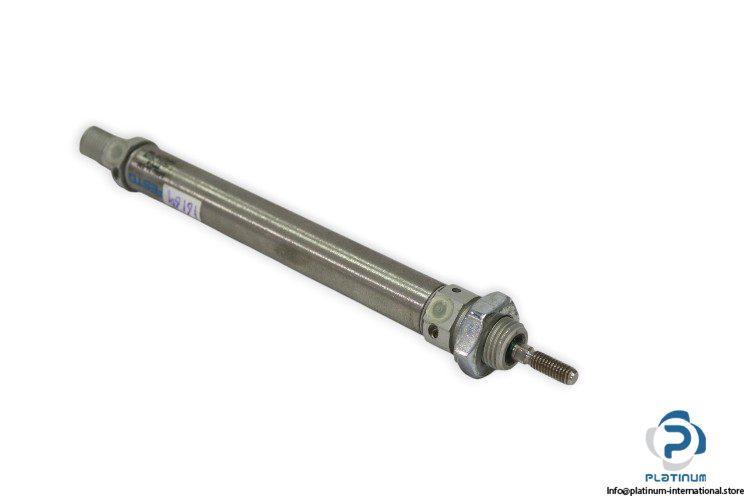

Festo DSNU-16-100-PPV-A ISO Cylinder
The Festo DSNU-16-100-PPV-A is a high-quality ISO pneumatic cylinder designed for precise and efficient motion control. With durable construction and double-acting operation, it ensures smooth performance and long service life in industrial automation applications.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-16-100-PPV-A
Part No.: 19232
| Piston Diameter | 16 mm |
| Stroke | 100 mm |
| Port Size | 5 mm |
| Mode of Operation | Double Acting |
| Operating Medium | Compressed Air |
| Maximum Operating Pressure | 10 bar |
| Shape | Circular |
| Ambient Temperature | -20 to 80 °C |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
| Material for Cover | Wrought Aluminum Alloy |
| Material for Seals | NBR |
| Material for Piston Rod | High Alloy Steel, Non-Corrosive |
| Material for Cylinder Barrel | High Alloy Steel, Non-Corrosive |
