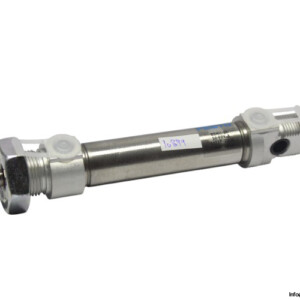

Festo 19237 ISO Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
Festo DSNU-20-50-PPV-A ISO Cylinder “ Double-acting pneumatic cylinder with 20 mm piston and 50 mm stroke. Features G1/8 port, adjustable cushioning, and high-strength stainless steel components.
20ActingActuatorAdjustableAutomationconnectionCushioningCylinderDoubleDSNU-20-50-PPV-AFestoG1/8IndustrialISOmmPistonPneumaticPneumaticsstainlessSteel
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

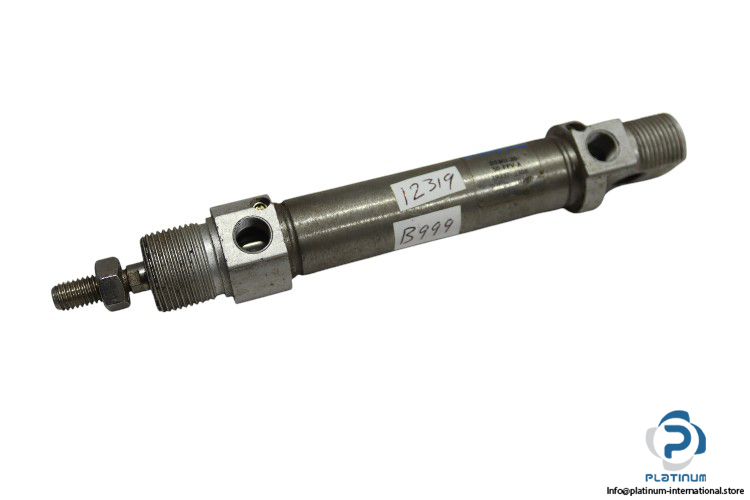

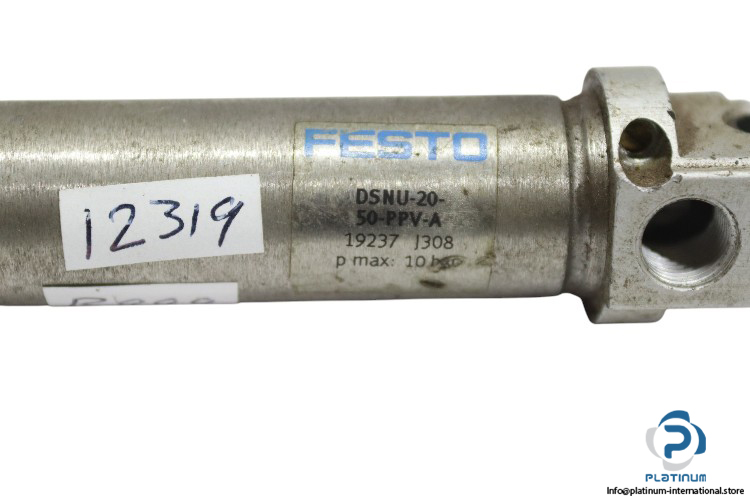

Festo DSNU-20-50-PPV-A ISO Cylinder “ Part No. 19237
The Festo DSNU-20-50-PPV-A is a compact ISO-standard pneumatic cylinder designed for double-acting operation in industrial automation applications. Built with durable materials and adjustable pneumatic cushioning, it ensures reliable and efficient linear motion under high pressure.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSNU-20-50-PPV-A
Part No.: 19237
| Stroke | 50 mm |
| Piston Diameter | 20 mm |
| Connection | G1/8 |
| Fluid | Compressed Air |
| Working Pressure | Max. 10 bar |
| Piston-Rod End | Male Thread |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Mode of Operation | Double-Acting |
| Ambient Temperature | -20 to 80 °C |
| Material “ Cover | Wrought Aluminum Alloy |
| Material “ Seals | NBR |
| Material “ Piston Rod | High-Alloy Stainless Steel |
| Material “ Cylinder Barrel | High-Alloy Stainless Steel |
