Festo 193541 Vacuum Generated
Gebraucht
Auf Lager1 EinheitVersandbereit
VACUUM GENERATOR
Festo VN-07-M-T3-PQ2-VQ2-RO1 inline vacuum generator with T-shape design, high vacuum capacity, and durable nickel-plated housing.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

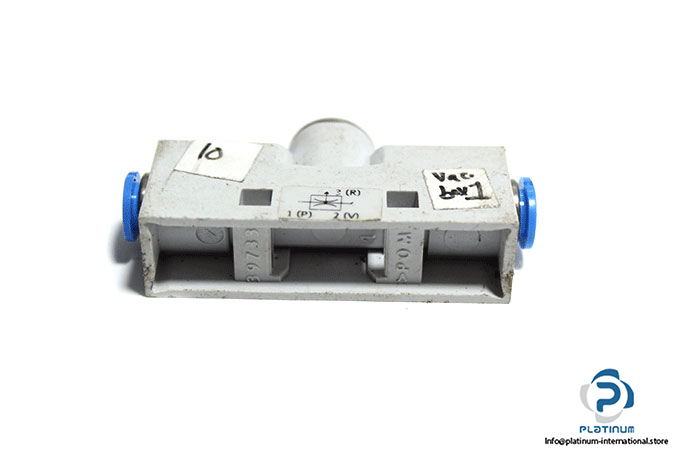

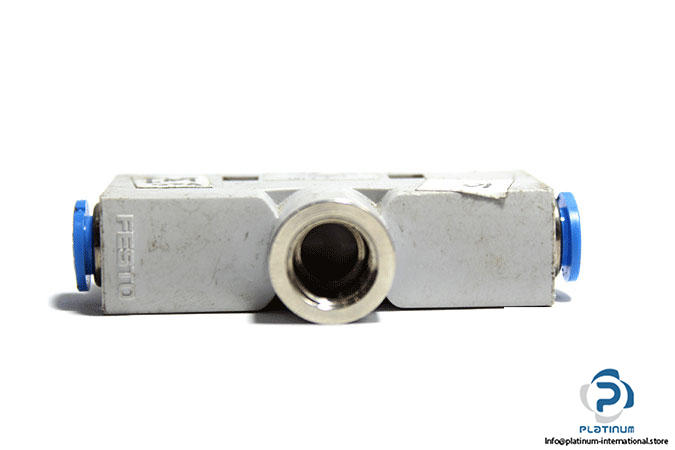

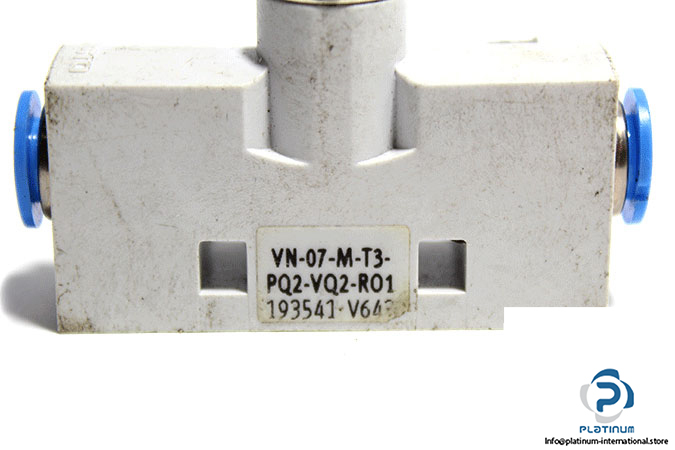

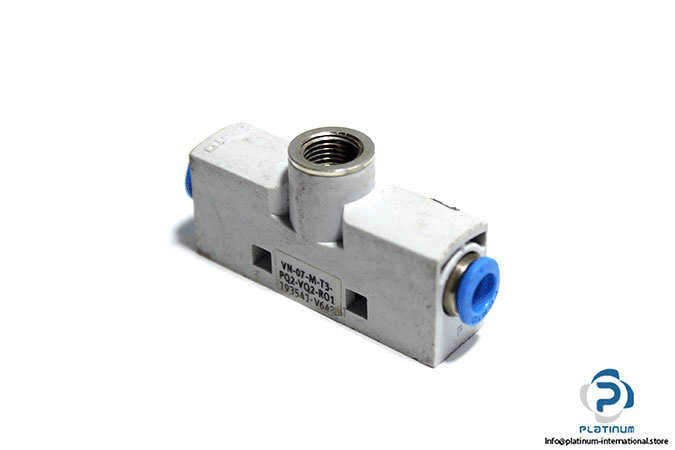

FESTO VN-07-M-T3-PQ2-VQ2-RO1 VACUUM GENERATOR
The Festo VN07MT3PQ2VQ2RO1 is a high-efficiency vacuum generator designed in a compact T-shape configuration, optimized for reliable inline operation in industrial pneumatic systems. Built with nickel-plated housing for durability and precision.
Manufacturer: FESTO
Type: Vacuum Generator
Model: VN-07-M-T3-PQ2-VQ2-RO1
Part No.: 193541
| Design | T-Shape |
| Operating Pressure | 1 / 8 bar |
| Vacuum Max. | 86% |
| Nominal Width of Laval Nozzle | 0.7 mm |
| Ejector Characteristics | High Vacuum In Line |
| Pneumatic Connection 1 | 6 mm |
| Pneumatic Connection 3 | 6 mm |
| Vacuum Connection | G1/8 |
| Housing Material | Nickel-Plated |
| Medium Temperature | -20 / 80 °C |
