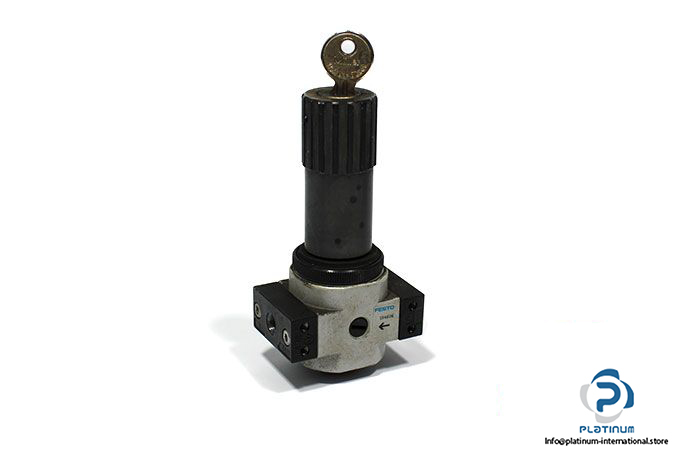

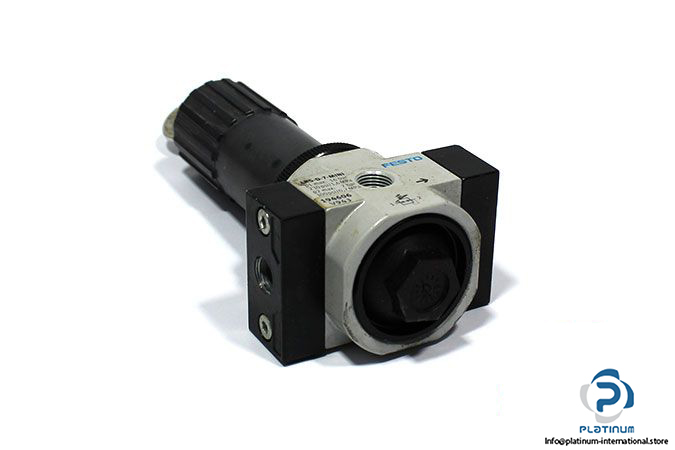

Festo 194606 Pressure Regulator

Manufacturer: FESTO
Type: Pressure Regulator

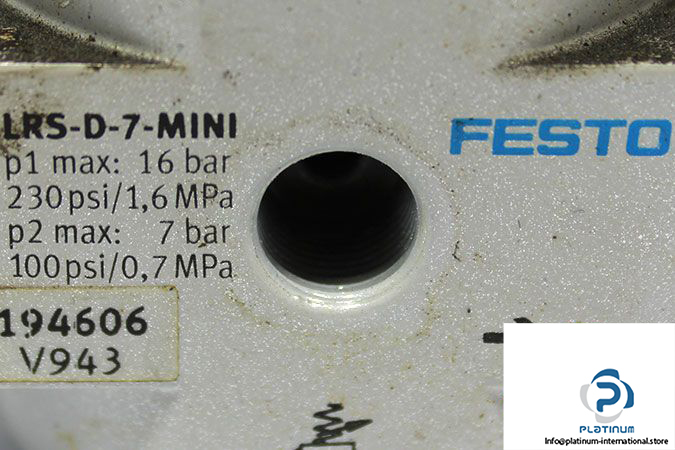

Model: LRS-D-7-MINI

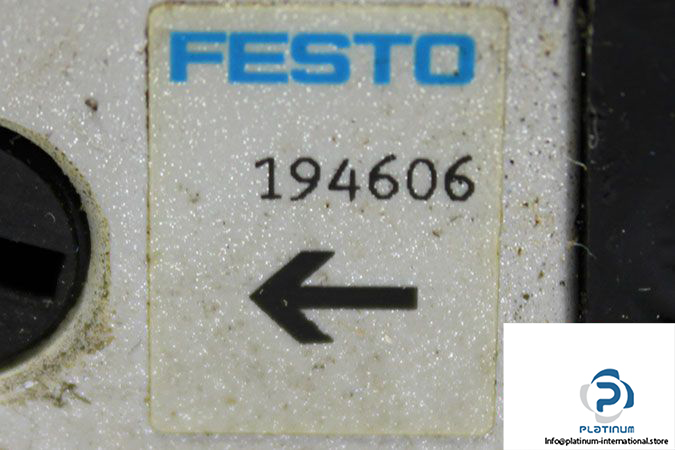

Part No.: 194606

Fluid: Air
Actuator lock: Rotary knob with integrated lock
Operating Pressure: 1 bar … 16 bar
Pressure Regulation Range: 0.5 bar … 7 bar
Pressure gauge: G1/8
Standard Nominal Flow: 1000 l/min
Housing material: Die-cast zinc
Temperature of Medium: -10 °C … 60 °C
Pneumatic Connection: G1/8
