Festo 194611 Pressure Regulator
Neu
Auf Lager1 EinheitVersandbereit
Pressure Regulator
The FESTO LRS-1/4-D-I-MINI Pressure Regulator offers reliable control for **compressed air** and **inert gas** with a **pressure range of 0.5 … 12 bar** and **nominal flow rate of 1500 l/min**. Ideal for industrial applications.AirAmbientComponentsCompressedconnectiondie-castFestoflowGasIndustrialInertLRS-1/4-D-I-MINIMiniNominalPneumaticPressureRangeRateRegulationregulatorTemperatureZinc
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

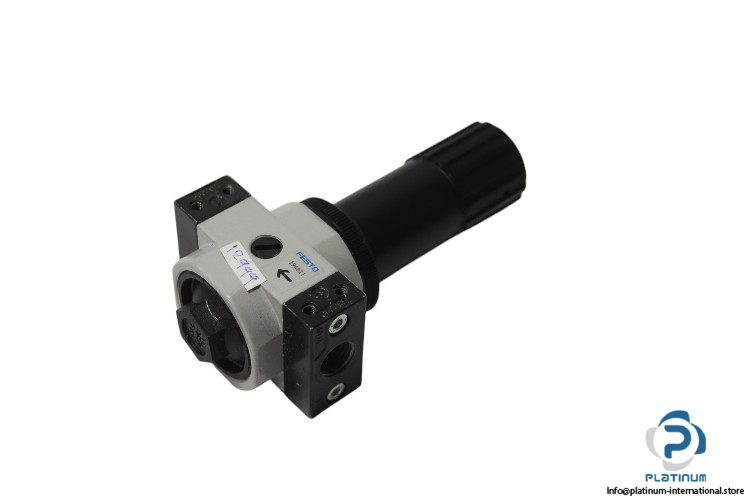

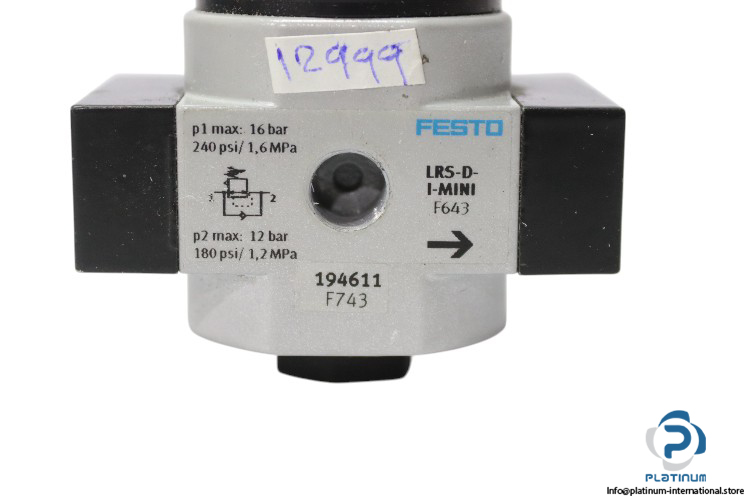

FESTO LRS-D-I-MINI Pressure Regulator
The FESTO LRS-1/4-D-I-MINI Pressure Regulator ensures precise control of air and inert gas pressure. With a robust die-cast zinc body, it supports a wide pressure regulation range, making it ideal for a variety of industrial applications.
Manufacturer: FESTO
Type: Pressure Regulator
Model: LRS-1/4-D-I-MINI
Part No.: 194611
| Size | MINI |
| Fluid | Compressed Air / Inert Gas |
| Pressure Regulation Range | 0.5 ... 12 bar |
| Operating Pressure Max. | 16 bar |
| P1 Max. | 16 bar / 240 PSI / 1.6 MPa |
| P2 Max. | 12 bar / 180 PSI / 1.2 MPa |
| Nominal Flow Rate | 1500 l/min |
| Pneumatic Connection | G 1/4 |
| Material | Die-Cast Zinc |
| Ambient Temperature | -10 ... 60 °C |
