Festo 195982 Round Cylinder
Neu
Auf Lager2 EinheitenVersandbereit
Round Cylinder
Festo DSNU-32-50-P-A round cylinder with 50 mm stroke and 32 mm piston diameter. Double-acting, robust pneumatic cylinder with elastic cushioning and high-alloy steel piston rod for precise automation performance.3250ActingActuatorAutomationCylinderDoubleDSNU-32-50-P-AFestoIndustrialmmPistonPneumaticRODRoundStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

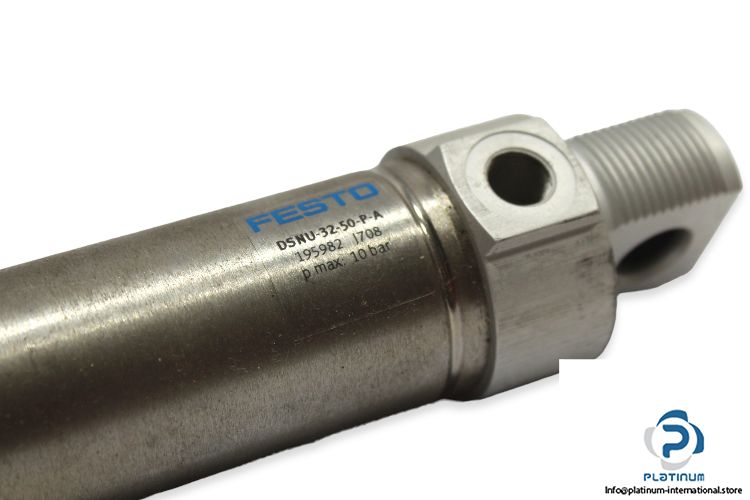

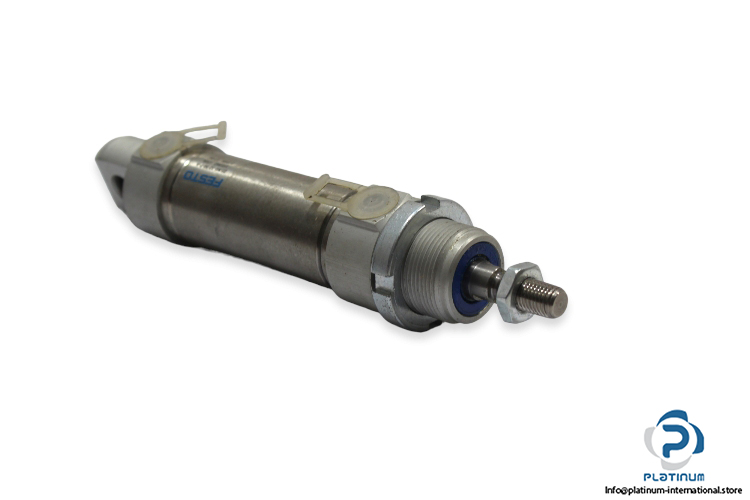

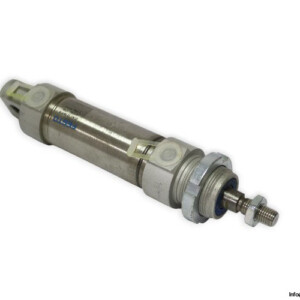

Festo DSNU-32-50-P-A Round Cylinder
The Festo DSNU-32-50-P-A is a high-performance pneumatic round cylinder designed for reliable operation in automation and industrial applications. With a 50 mm stroke length and 32 mm piston diameter, this double-acting cylinder ensures precise motion control, durability, and long service life under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder / Piston Rod Cylinder
Model: DSNU-32-50-P-A
Part No.: 195982
Ref. Code: J708
Series: DSNU
| Stroke Length | 50 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | M10x1.25 |
| Pneumatic Connection | G1/8 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-acting |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy steel |
| Ambient Temperature | -20 to 80 °C |
