Festo 196043 Round Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
Pneumatic Round Cylinder
The Festo DSNU-50-80-PPV-A Round Cylinder offers a 50 mm bore, 80 mm stroke, double-acting operation, and adjustable pneumatic cushioning, ideal for industrial automation applications.1960435080ActingAutomationboreCylinderDoubleDsnuDSNU-50-80-PPV-AFestoIndustrialmmPneumaticPneumaticsRoundSeriesStrokeWO08
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

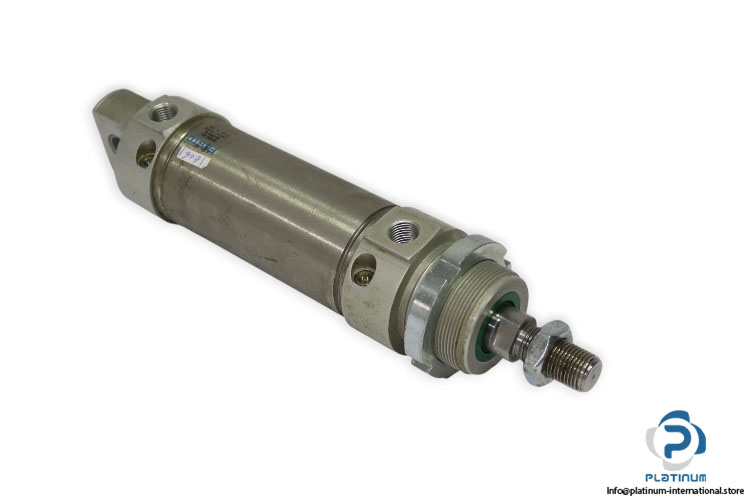

Festo DSNU-50-80-PPV-A Round Cylinder
The Festo DSNU-50-80-PPV-A is a high-performance pneumatic round cylinder designed for reliable and efficient operation in industrial automation. With a 50 mm bore size, 80 mm stroke length, and robust materials, it delivers precision and durability even in demanding environments. Its adjustable pneumatic cushioning at both ends ensures smooth motion and extended service life.
Manufacturer: Festo
Type: Round Cylinder
Model: DSNU-50-80-PPV-A
Part No.: 196043
Code: WO08
Series: DSNU
| Media | Compressed Air |
| Pressure Rating | Max. 10 bar |
| Bore Size | 50 mm |
| Stroke Length | 80 mm |
| Bore x Stroke | 50×80 mm |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mode of Operation | Double |
| Shape | Circular |
| Ambient Temperature | -20 °C to 80 °C |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy steel |
| Material Cylinder Barrel | High-alloy stainless steel |
| Connection | G1/4 |
