Festo 196051 Round Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
Round Cylinder
The Festo DSNU-63-40-PPV-A Round Cylinder is a double-acting pneumatic actuator with 63 mm bore and 40 mm stroke, featuring adjustable cushioning and stainless steel barrel for precise and durable performance.63x40ActingconnectionCushioningCylinderDoubleDsnuDSNU-63-40-PPV-AFestoG3/8IndustrialmmPneumaticPneumaticsPPVRoundSeries
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

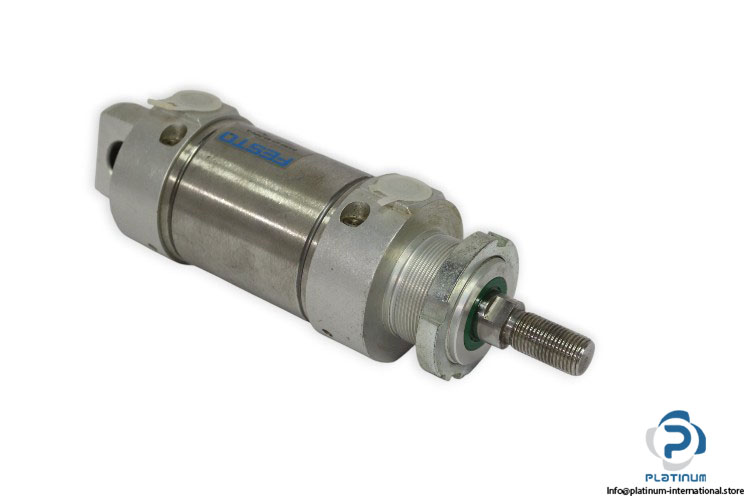

Festo DSNU-63-40-PPV-A Round Cylinder
The Festo DSNU-63-40-PPV-A is a compact, high-precision pneumatic cylinder designed for reliable linear motion in industrial automation systems. It features double-acting operation and adjustable pneumatic cushioning at both ends for smooth and controlled movement. Engineered with durable stainless steel and aluminum components, it ensures long-lasting performance even under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder

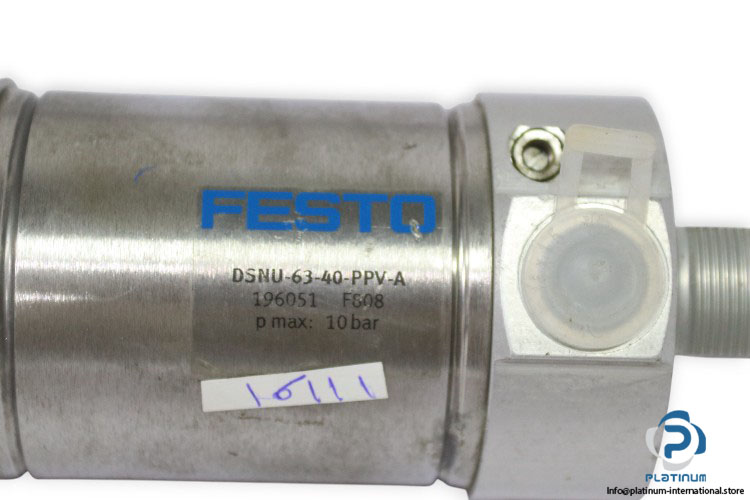

Model: DSNU-63-40-PPV-A
Part No.: 196051
Code: F808
Series: DSNU
| Media | Compressed Air |
| Pressure Rating | Max. 10 bar |
| Bore Size | 63 mm |
| Stroke Length | 40 mm |
| Bore x Stroke | 63x40 mm |
| Mode of Operation | Double |
| Shape | Circular |
| Cushioning | Pneumatic cushioning adjustable at both ends (PPV) |
| Ambient Temperature | -20 °C to 80 °C |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy steel |
| Material Cylinder Barrel | High-alloy stainless steel |
| Connection | G3/8 |
