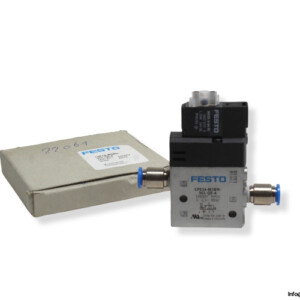

Festo 196887 AIR Solenoid Valve
Gebraucht
Auf Lager4 EinheitenVersandbereit
AIR SOLENOID VALVE
FESTO CPE14-M1BH-3GL-QS-6 air solenoid valve with MSZE-3-24V DC coil offers precise 3/2-way control with a durable aluminium body and 510 l/min flow rate.
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

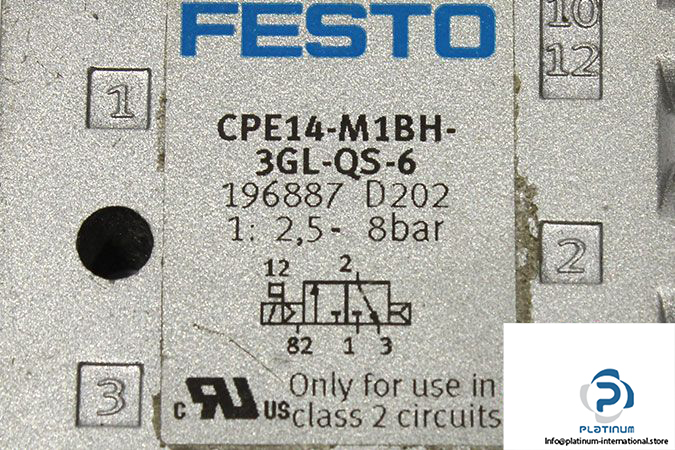

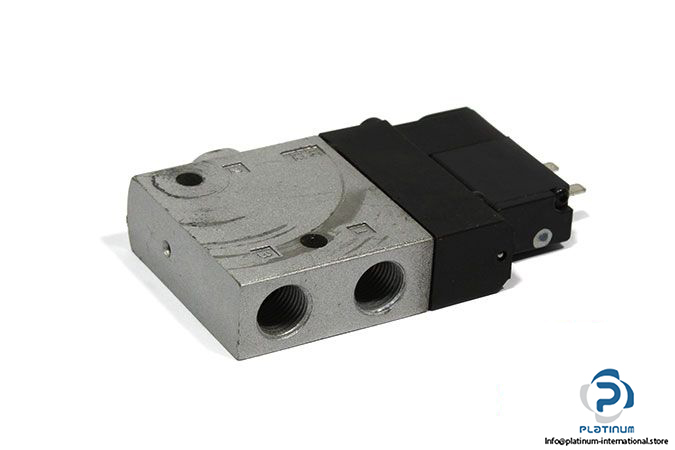

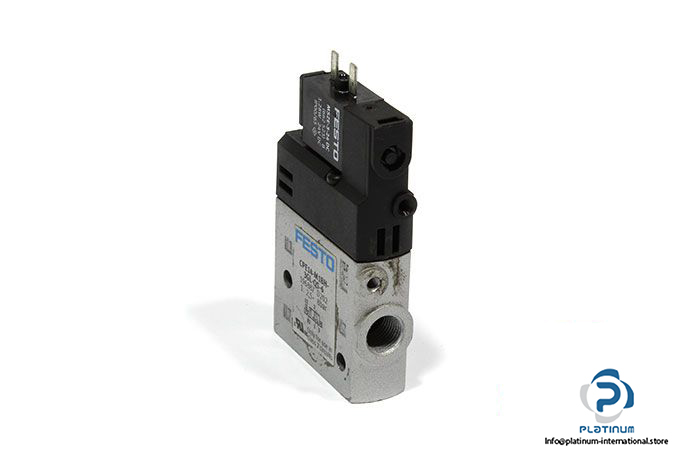

FESTO CPE14-M1BH-3GL-QS-6 AIR SOLENOID VALVE WITH MSZE-3-24V DC COIL
The FESTO CPE14-M1BH-3GL-QS-6 is a high-performance air solenoid valve engineered for fast, reliable control in pneumatic systems. Featuring a 3/2-way, monostable function with piston gate design, this valve is ideal for precision air flow regulation. Paired with the FESTO MSZE-3-24V DC solenoid coil, it ensures efficient operation under varying industrial conditions.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPE14-M1BH-3GL-QS-6
Part No.: 196887
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 to 10 bar |
| Nominal Flow Rate | 510 l/min |
| Pneumatic Connection | QS-6 |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 to 50 °C |

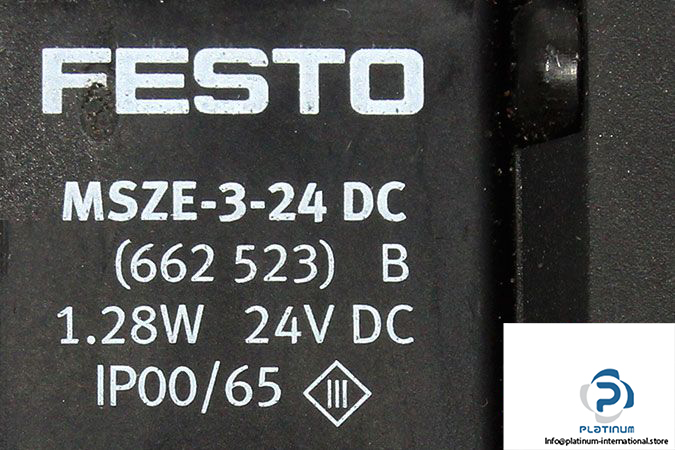

| Solenoid Coil Attachment | FESTO MSZE-3-24V DC |
| Part No. | 662523 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.28 W |
| Protection Class | IP00 / IP65 |
