Festo 196891 Single Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
25,00$
SINGLE SOLENOID VALVE
FESTO CPE14-M1BH-3OL-QS-6 valve with MSZE-3-24 DC coil, features 3/2 open monostable function, 510 l/min flow, and durable die-cast aluminum body.24v3/2AluminumBodycoilControlCPE14-M1BH-3OL-QS-6dcFestoflowHighIndustrialMSZE-3-24PneumaticRateSinglesolenoidValve
Neu
Auf Lager 45,00$
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

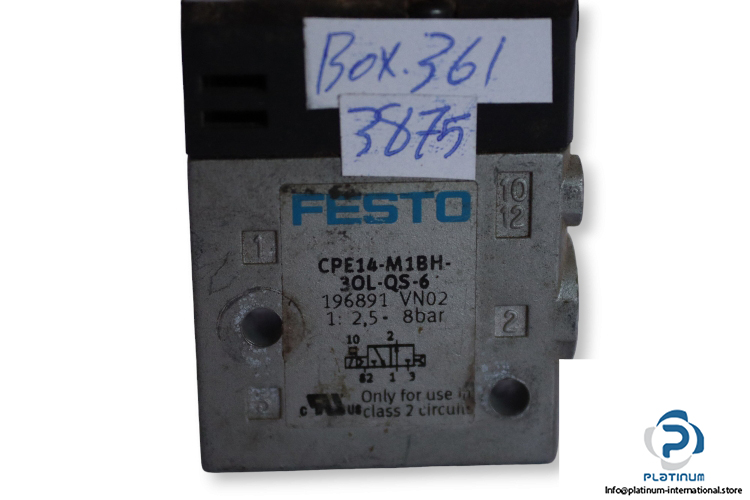

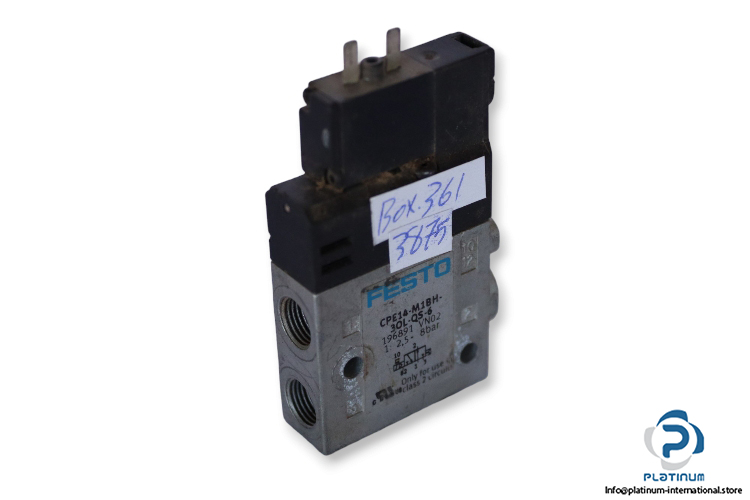

FESTO CPE14-M1BH-3OL-QS-6 SINGLE SOLENOID VALVE WITH COIL
The FESTO CPE14-M1BH-3OL-QS-6 is a high-performance single solenoid valve designed for precise pneumatic control. Built with a durable piston gate design and paired with the FESTO MSZE-3-24 DC solenoid coil, it offers reliable functionality in demanding environments.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE14-M1BH-3OL-QS-6
Part No.: 196891
| Fluid | Air |
| Design | Piston Gate Valve |
| Valve Function | 3/2 Open, Monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 to 8 bar |
| Nominal Flow Rate | 510 l/min |
| Pneumatic Connection | QS-6 |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -5 to 50 °C |

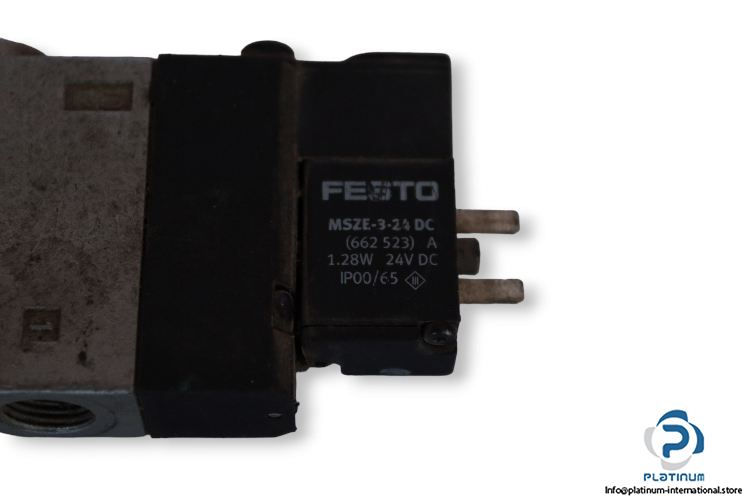

| Solenoid Coil Attachment | FESTO MSZE-3-24 DC |
| Part No. | 662523 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.28 W |
| Protection Class | IP00 / IP65 |
