Festo 196908 Double Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
60,00$
DOUBLE SOLENOID VALVE
FESTO CPE14-M1BH-5J-QS-8 5/2 bistable double solenoid valve with 24 V DC MSZE-3 coil, featuring QS-8 pneumatic connection and die-cast aluminum body.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

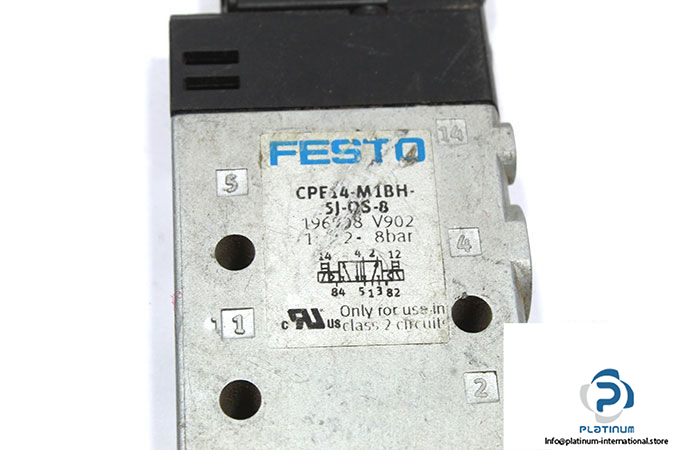

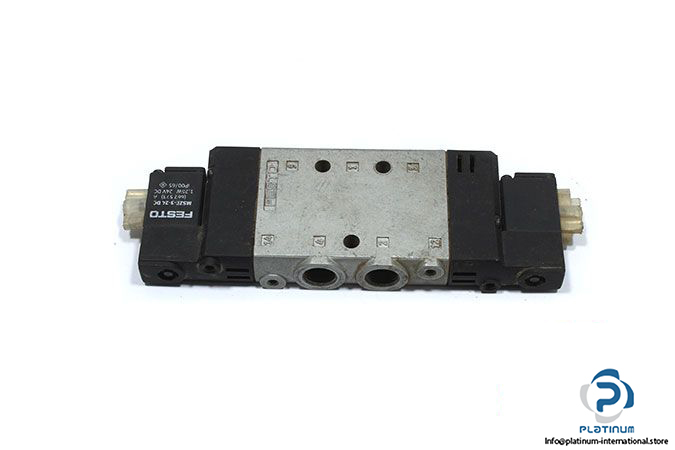

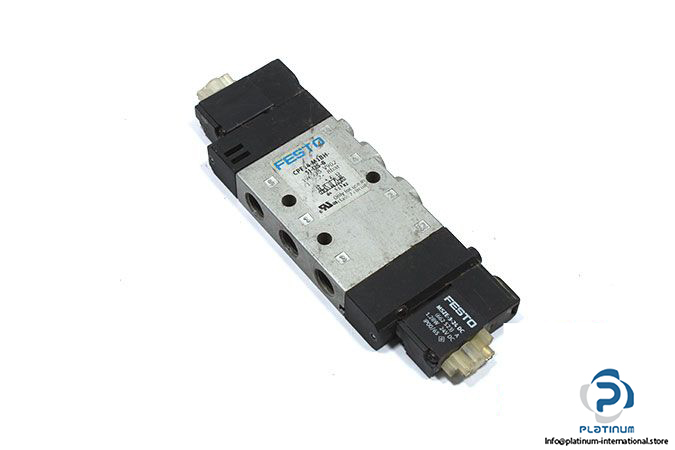

FESTO CPE14-M1BH-5J-QS-8 DOUBLE SOLENOID VALVE WITH COIL
The FESTO CPE14-M1BH-5J-QS-8 is a high-performance 5/2 bistable double solenoid valve designed for fast and efficient pneumatic control. Featuring a piston gate valve design, this model delivers robust performance under pressure, ideal for industrial automation. Supplied with the FESTO MSZE-3-24 DC coil for reliable electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE14-M1BH-5J-QS-8
Part No.: 196908
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2 bistable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 8 bar |
| Nominal Flow Rate | 680 l/min |
| Pneumatic Connection | QS-8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |

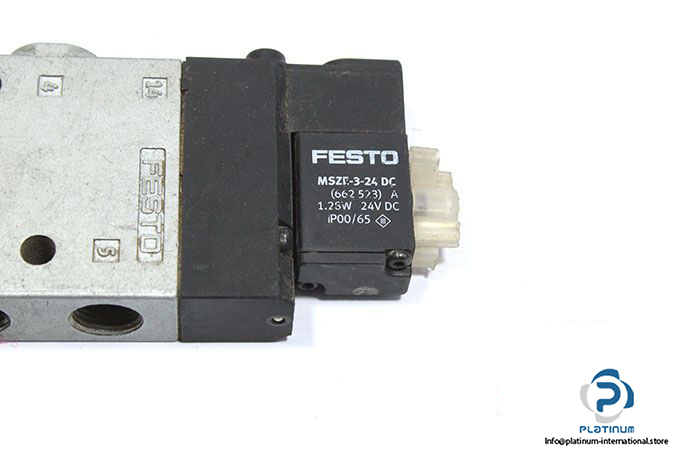

| Attachment | FESTO 662523 SOLENOID COIL |
| Part No. | 662523 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.25 W |
| Protection Class | IP00 / IP65 |
