Festo 196916 Single Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
SINGLE SOLENOID VALVE
FESTO CPE10-M1BH-3GLS-M7 single solenoid valve with MSZE-3-24 DC coil, ideal for 3/2-way air control in industrial automation systems.3/2-wayAirAutomationcoilCompactControlCPE10-M1BH-3GLS-M7dcFestoIndustrialMSZE-3-24PneumaticSinglesolenoidValve
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

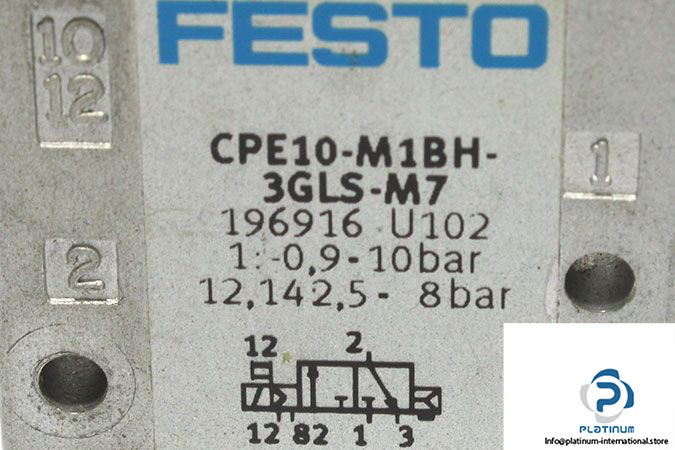

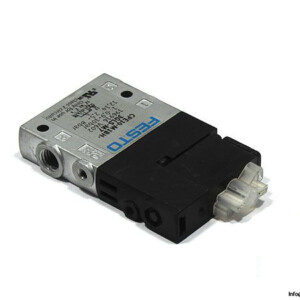

FESTO CPE10-M1BH-3GLS-M7 SINGLE SOLENOID VALVE WITH MSZE-3-24 DC COIL
The FESTO CPE10-M1BH-3GLS-M7 is a high-performance single solenoid valve designed for efficient control of compressed air systems. With a 3/2-way closed, monostable function and compact M7 connections, it is ideal for industrial automation setups. This valve is equipped with the FESTO MSZE-3-24 DC solenoid coil to ensure reliable electrical actuation and optimized energy usage.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE10-M1BH-3GLS-M7
Part No.: 196916
Valve Technical Information
- Fluid: Air
- Valve Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Working Pressure: 2 / 10 bar
- Pilot Pressure: 2.8 / 8 bar
- Nominal Flow Rate: 400 l/min
- Material: Aluminium Die-cast
- Pneumatic Connection: M7
- Ambient Temperature: -5 / 50 °C

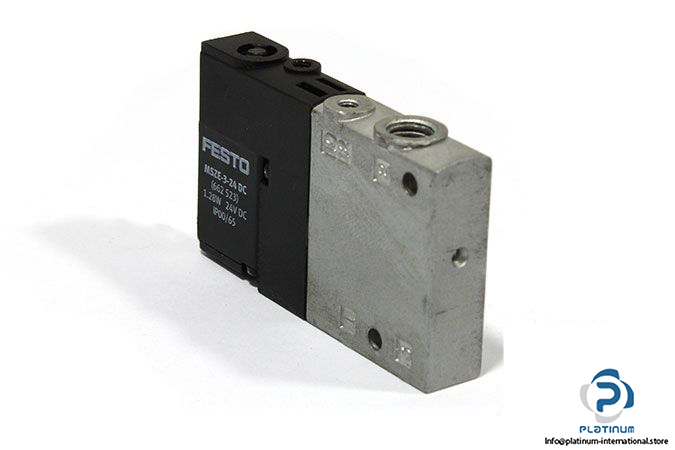

Solenoid Coil: FESTO MSZE-3-24 DC
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-24 DC
Part No.: 662523
Coil Technical Information
- Supply Voltage: 24 V DC
- Power Consumption: 1.28 W
- Protection Class: IP00/IP65
