Festo 196931 AIR Solenoid Valve
Neu
Auf Lager3 EinheitenVersandbereit
55,00$
AIR SOLENOID VALVE
FESTO CPE14-M1BH-3OL-1/8 air solenoid valve with MSZE-3-24 DC coil, 3/2 monostable function, 900 l/min flow rate, and G1/8 pneumatic connection.3/2ActuationAircoilControlCPE14-M1BH-3OL-1/8dcElectricalFestoflowG1/8IndustrialMSZE-3-24PneumaticsolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

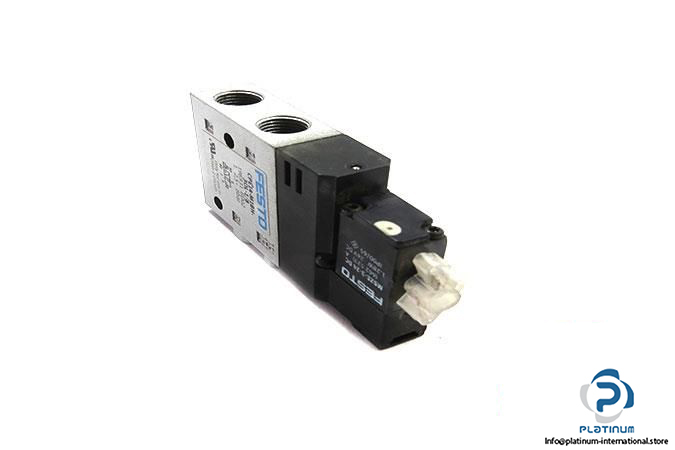

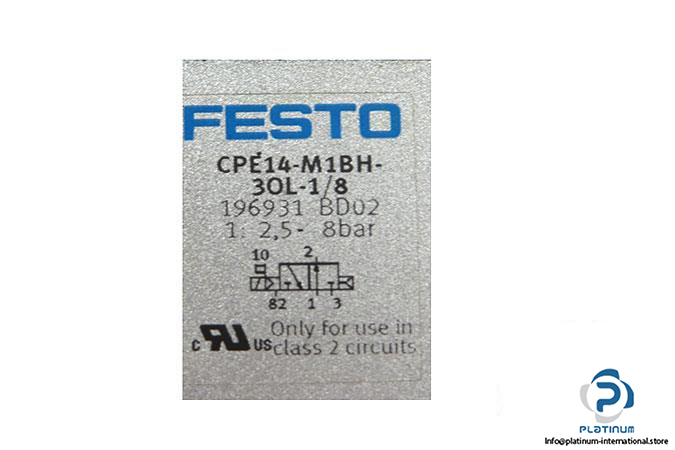

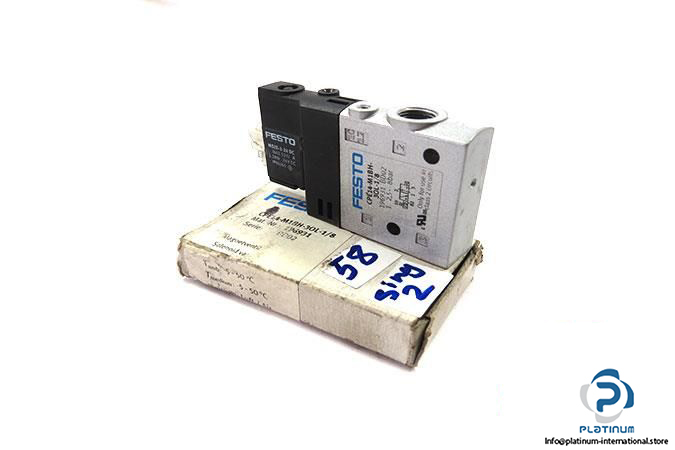

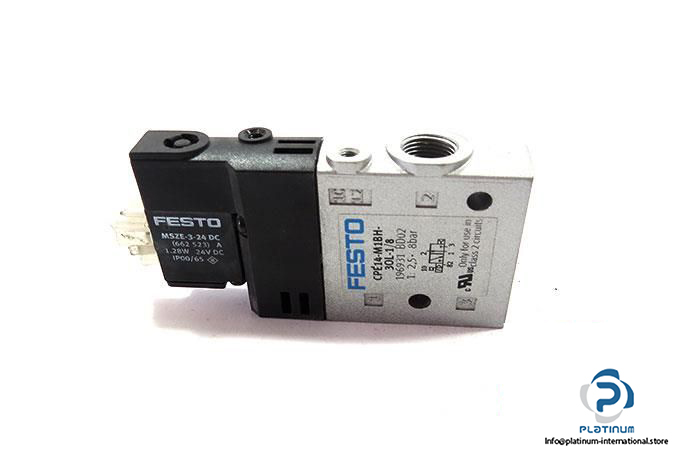

FESTO CPE14-M1BH-3OL-1/8 AIR SOLENOID VALVE WITH COIL
The FESTO CPE14-M1BH-3OL-1/8 is a high-performance air solenoid valve designed for efficient and reliable pneumatic control. Featuring a piston seat design and monostable 3/2 valve function, this unit ensures fast and accurate flow switching. Paired with the FESTO MSZE-3-24 DC coil, it delivers precise electrical actuation for industrial automation applications.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPE14-M1BH-3OL-1/8
Part No.: 196931
Coil Technical Information
| Fluid | Air |
| Design | Piston seat |
| Valve Function | 3/2 open, monostable |
| Type of Actuation | Electrically |
| Medium Pressure | 2.5 ... 8 bar |
| Nominal Flow Rate | 900 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -10 / 60 °C |
| Attachment | FESTO MSZE-3-24 DC SOLENOID COIL |
| Part No. | 662523 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.28 W |
| Protection Class | IP00 / IP65 |
