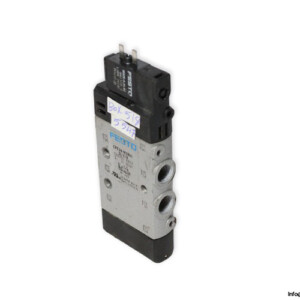

Festo 196941 Single Solenoid Valve
Neu
Auf Lager11 EinheitenVersandbereit
75,00$
SINGLE SOLENOID VALVE
FESTO CPE14-M1BH-5L-1/8 single solenoid valve with MSZE-3-24V DC coil offers 5/2-way monostable function, 800 l/min flow, and durable pneumatic performance.5/2-WayAircoilCPE14-M1BH-5L-1/8dcElectricFestoflowHighIndustrialMSZE-3-24VPneumaticSinglesolenoidValve
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

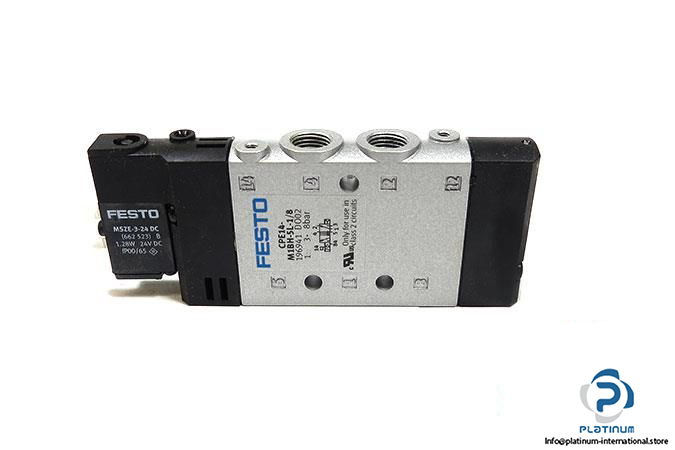

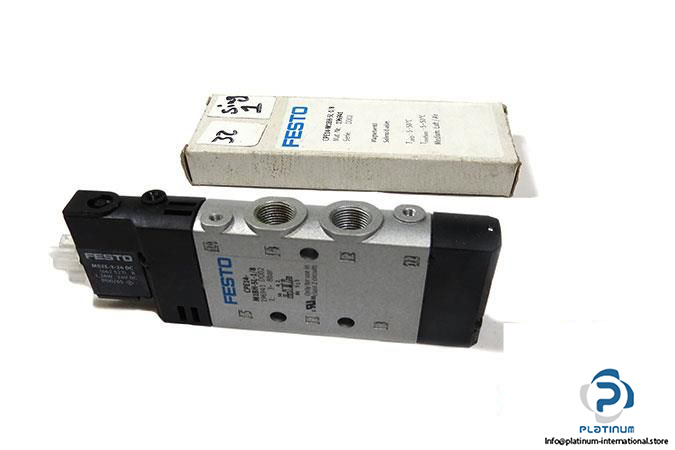

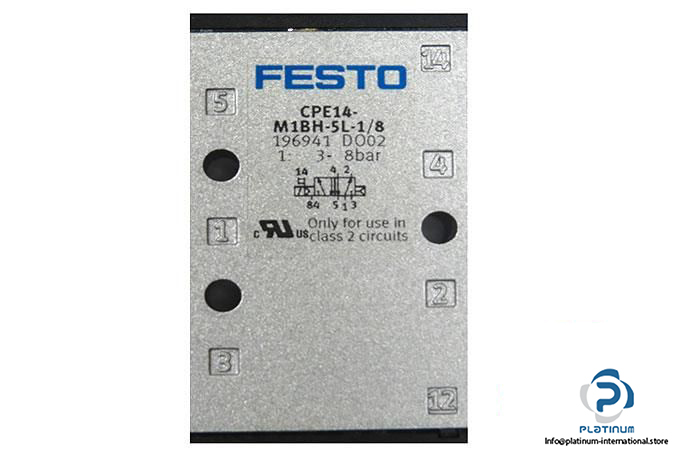

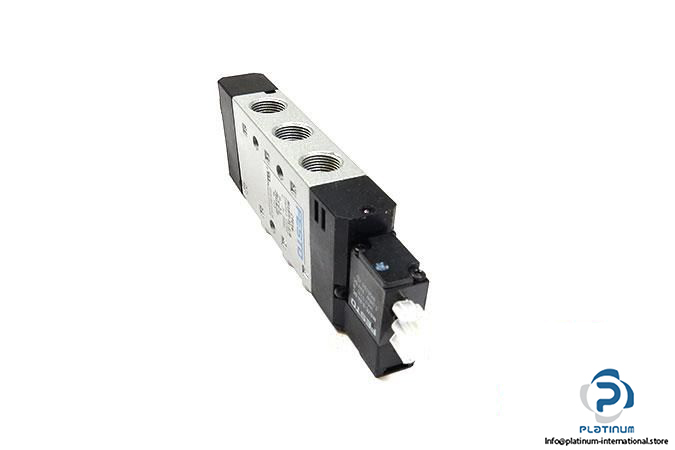

FESTO CPE14-M1BH-5L-1/8 SINGLE SOLENOID VALVE WITH MSZE-3-24V DC COIL
The FESTO CPE14-M1BH-5L-1/8 is a high-performance single solenoid valve featuring a 5/2-way monostable function and robust die-cast aluminum body. It is designed for fast and efficient control in pneumatic systems, delivering a flow rate of up to 800 l/min. Paired with the MSZE-3-24V DC solenoid coil, this assembly ensures reliable operation with minimal energy consumption.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE14-M1BH-5L-1/8
Part No.: 196941
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 8 bar |
| Nominal Flow Rate | 800 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |
| Attachment | FESTO MSZE-3-24V DC SOLENOID COIL |
| Part No. | 662523 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.28 W |
| Protection Class | IP00 / IP65 |
