Festo 19701 Single Solenoid Valve
Neu
Auf Lager1 EinheitVersandbereit
100,00$
SINGLE SOLENOID VALVE
FESTO MVH-5-1/4-B single solenoid valve with MSV-3 coil offers precise 5/2-way control, high flow rate, and robust performance in pneumatic systems.5/2-WayActuatedAircoilControlElectricallyFestoflowHighMonostableMSV-3MVH-5-1/4-BPneumaticSinglesolenoidValve
Gebraucht
Auf Lager 45,00$
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

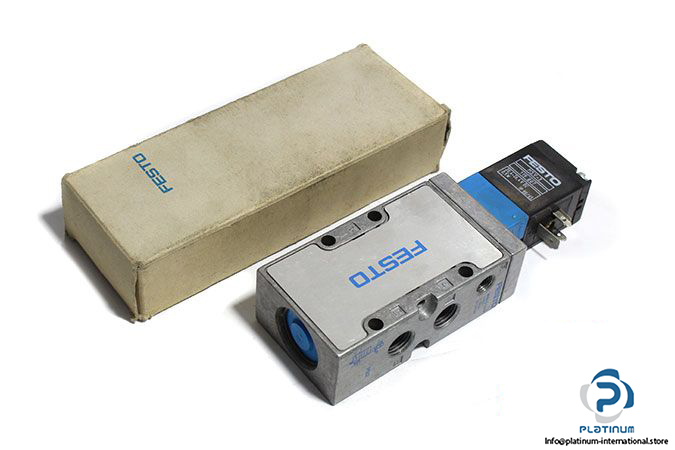

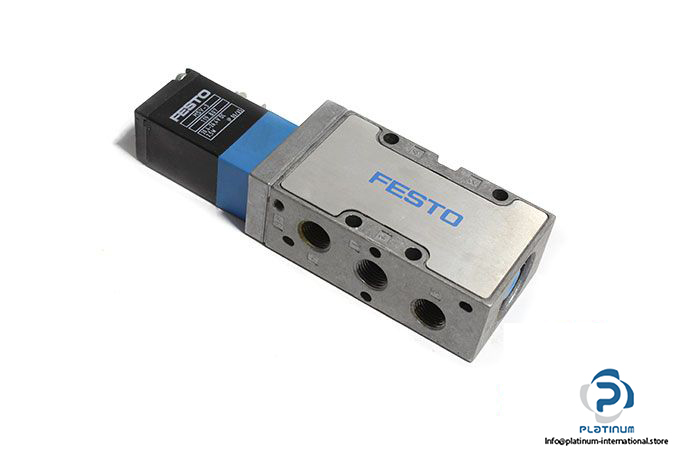

FESTO MVH-5-1/4-B SINGLE SOLENOID VALVE WITH MSV-3 COIL
The FESTO MVH-5-1/4-B is a high-performance single solenoid valve designed for precise control in pneumatic systems. Featuring a durable poppet seat design and monostable 5/2-way function, this valve ensures reliability and efficiency in automation applications. Paired with the FESTO MSV-3 solenoid coil, it delivers fast response and consistent operation under demanding conditions.
Manufacturer: FESTO
Type: Single Solenoid Valve

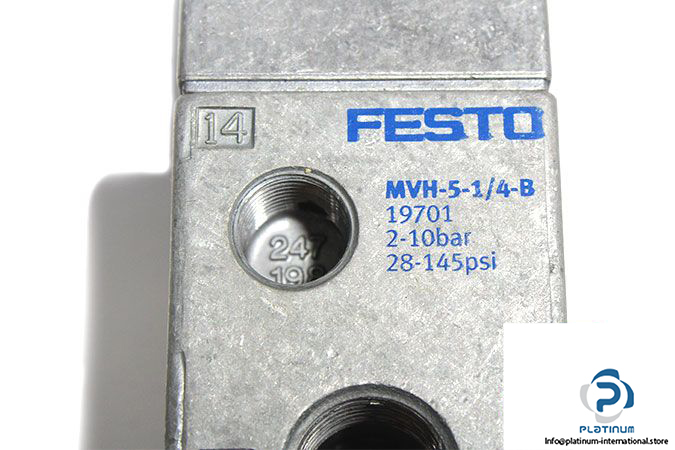

Model: MVH-5-1/4-B
Part No.: 19701
Coil Technical Information
| Fluid | Air |
| Design | Poppet seat |

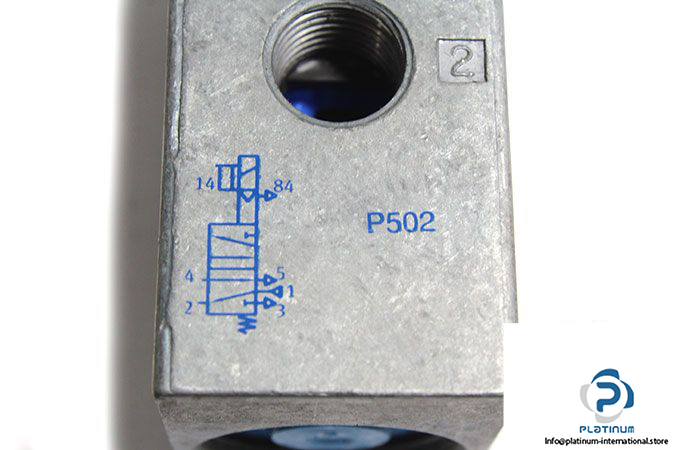

| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 10 bar |
| Nominal Flow Rate | 1300 l/min |
| Pneumatic Connection | G1/4 |
| Material | Aluminium die cast |
| Ambient Temperature | -5 / 50 °C |

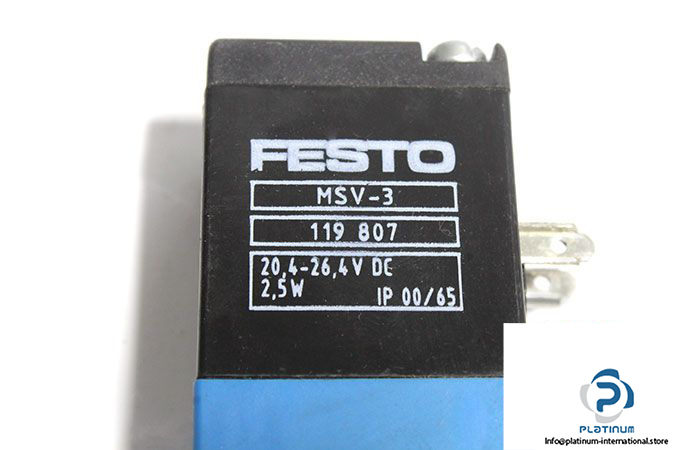

| Solenoid Coil Attachment | FESTO MSV-3 |
| Part No. | 119807 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
