Festo 19705 Solenoid Valve
Neu
Auf Lager2 EinheitenVersandbereit
Solenoid Valve
The FESTO MFH-5-3/8-B is an electric 5 by 2 way monostable valve with 2000 liters per minute flow rate, 2.5 to 10 bar operating pressure, and die-cast aluminium body for reliable pneumatic control.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

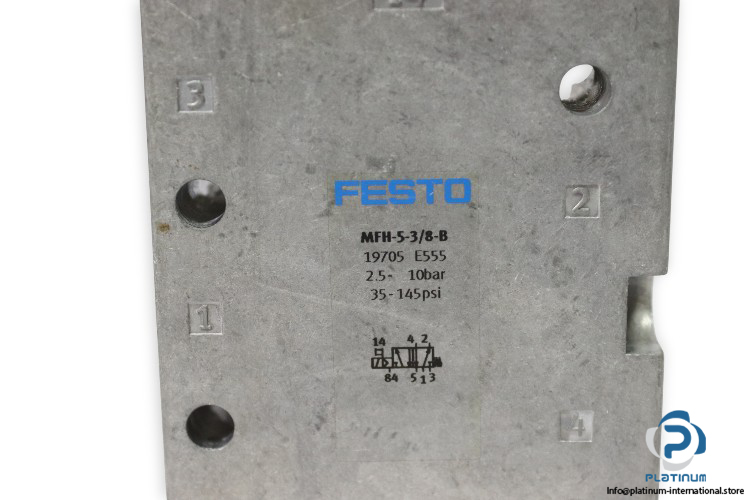

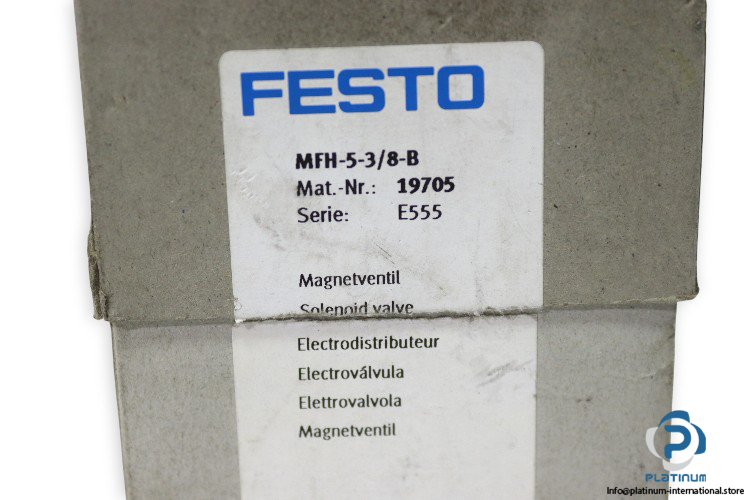

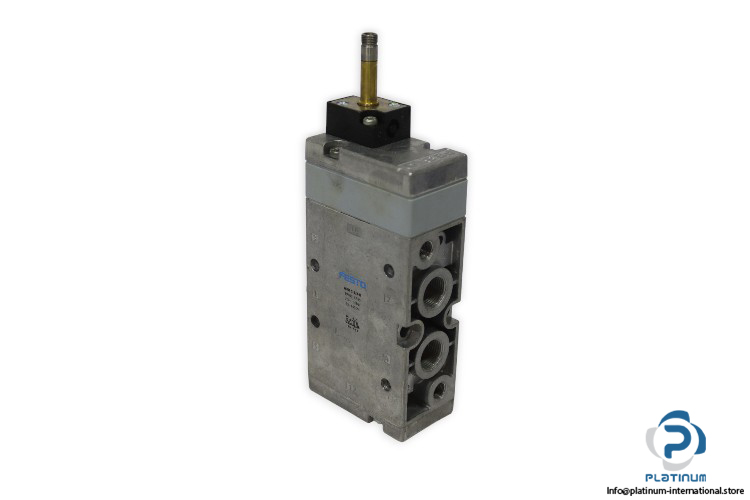

FESTO MFH-5-3/8-B Solenoid Valve
The FESTO MFH-5-3/8-B Solenoid Valve is a high-quality pneumatic valve designed for reliable and efficient air control in automation systems. With a robust die-cast aluminium body, mechanical spring reset, and high flow rate, it provides consistent performance in industrial environments.
Manufacturer: FESTO
Type: Solenoid Valve
Model: MFH-5-3/8-B
Part Number: 19705
Series: E555
| Valve Function | 5 by 2 way, monostable |
| Standard Nominal Flow Rate | 2000 liters per minute (DIN 1343) |
| Pneumatic Connection, Port 1 | G3 by 8 |
| Type of Actuation | Electric |
| Construction Width | 40 millimeters |
| Operating Pressure | 2.5 bar to 10 bar |
| Design | Piston gate valve |
| Type of Reset | Mechanical spring |
| Nominal Size | 12 millimeters |
| Grid Dimension | 41 millimeters |
| Exhaust Air Function | With flow control option |
| Material Seals | NBR |
| Material Housing | Die cast aluminium |
| Ambient Temperature | minus 5 to 40 degree Celsius |
| Port Size | G3 by 8 |
