Festo 197271 Tandem Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
550,00$
Tandem High-Force Cylinder
FESTO ADVUT-63X2-70-A-P-A is a high-performance tandem cylinder designed for industrial automation applications requiring enhanced force output. Featuring a 63 mm x 2 cylinder diameter, 70 mm stroke length, and double-acting operation, it delivers precision and durability for demanding environments.102563ActingActuatorbarCylinderDoubleFestoHighIndustrialmmPneumaticPrecisionPressureProximitySensingStrokeTandem
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

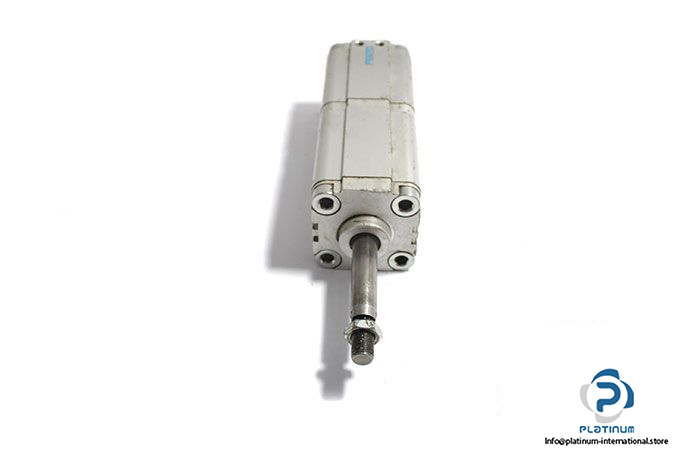

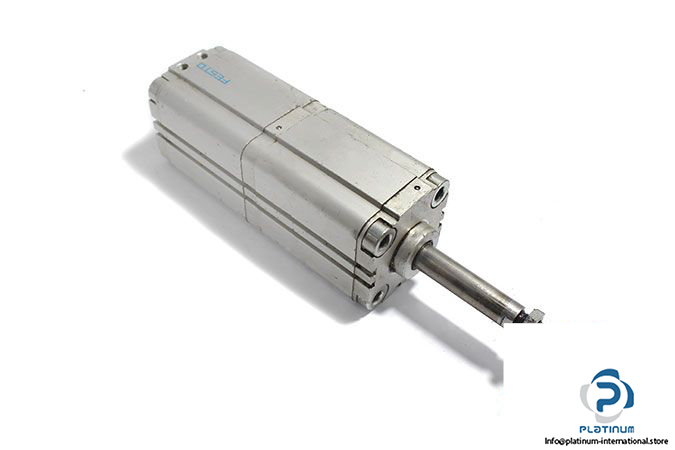

FESTO ADVUT-63X2-70-A-P-A Tandem High-Force Cylinder
The FESTO ADVUT-63X2-70-A-P-A Tandem High-Force Cylinder is designed for applications requiring enhanced force output while maintaining compact dimensions. With its double-acting operation and flexible cushioning, it ensures efficient and precise movement in industrial automation systems. Engineered with high-quality materials, it offers exceptional durability and performance under demanding conditions.
- Manufacturer: FESTO
- Type: Tandem High-Force Cylinder

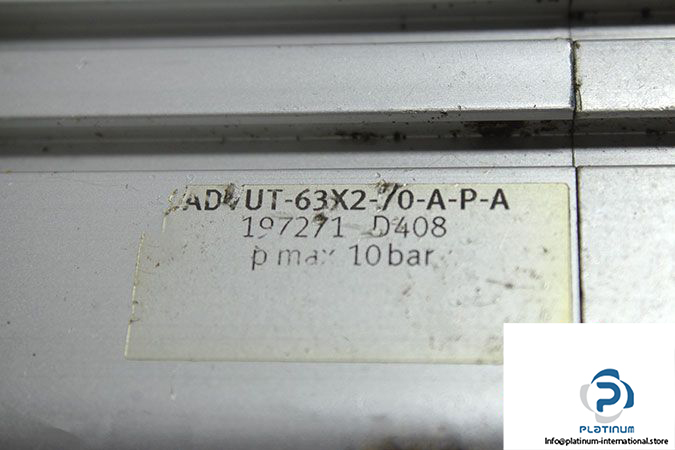

- Model: ADVUT-63X2-70-A-P-A
- Part No.: 197271
Technical Specifications
- Cylinder Diameter: 63 mm x 2
- Stroke Length: 70 mm
- Piston Rod Thread: Male thread
- Operating Pressure: 0.6 / 10 bar
- Cushioning: Flexible cushioning rings/pads at both ends
- Position Sensing: Via proximity sensor
- Pneumatic Connection: G1/8
- Mode of Operation: Double-Acting
- Temperature Range: -20 / 80 °C
Materials
- Cylinder Tube: Aluminium wrought alloy, smooth anodised
- Piston Rod: High-alloy steel
