Festo 2199 Single Solenoid Valve With Coil
Gebraucht
Auf Lager4 EinheitenVersandbereit
Magnetventil Festo MCH-3-1/8 Einzelmagnetventil, 3/2-Wege monostabile Membrandesign mit G1/8 Anschluss, Druckbereich 0–7 bar, geliefert mit MSW-230AC Spule.
2199230v3/23592ACAirAluminiumcoilControlFestoG1/8IndustrialMCH-3-1/8MonostableMSW-230ACPneumaticPneumaticssolenoidValveWay
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

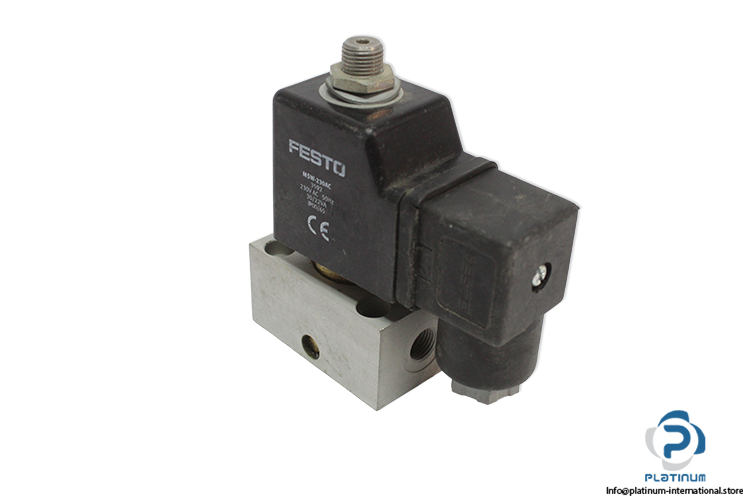

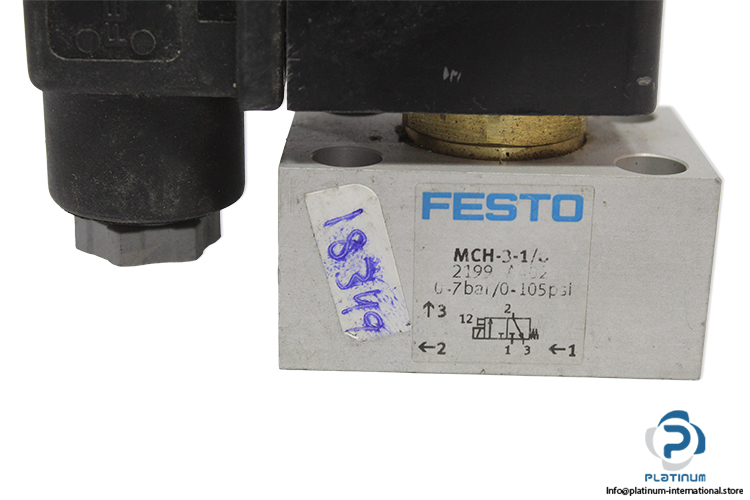

Festo MCH-3-1/8 Single Solenoid Valve
The Festo MCH-3-1/8 is a single solenoid valve designed for pneumatic control applications. It features a poppet valve design with spring return and is suitable for reliable air flow control in industrial systems.
Manufacturer: Festo
Type: Single Solenoid Valve
Model: MCH-3-1/8
Part No.: 2199

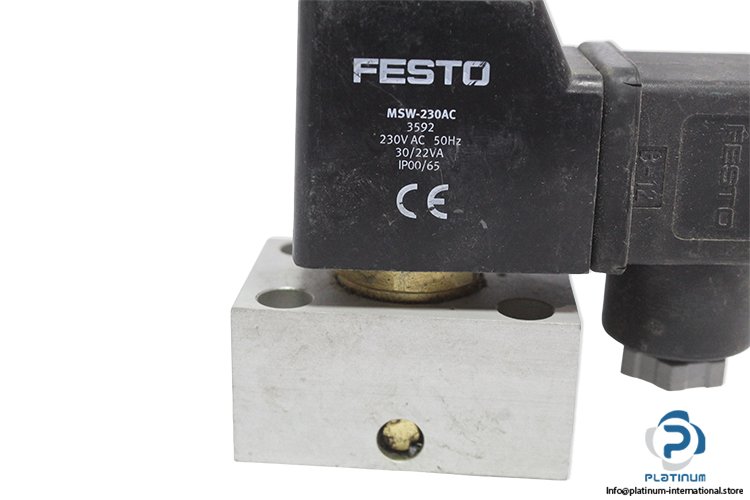

Attachment “ Festo 3592 Solenoid Coil
| Fluid | Air |
| Design | Poppet Valve With Spring Return |
| Function | 3/2-Way, Closed, Monostable |
| Type Of Actuation | Electrically |
| Operating Pressure | 0 / 7 bar |
| Nominal Flow Rate | 160 l/min |
| Pneumatic Connection | G1/8 |
| Material | Aluminium |
| Ambient Temperature | -5 / 40 °C |
| Part No. | 3592 |
| Supply Voltage | 230 V AC |
| Power Consumption | 3/22 VA |
| Frequency | 50 Hz |
| Protection Class | IP00/65 |
