Festo 2201 Single Solenoid Valve With Coil
Gebraucht
Auf Lager1 EinheitVersandbereit
Festo MCH-4-1/4 Solenoid Valve with MSG-24 Coil “ 4/2 function, aluminum body, 1300 l/min flow, G1/4 port, IP65 protection, and 24 V DC operation. Suitable for precise pneumatic control.
130024VDC4/2AluminumAutomationcoilconnectionFestoG1/4IndustrialIP65l/minMCH-4-1/4MSG-24PneumaticSinglesolenoidValveWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

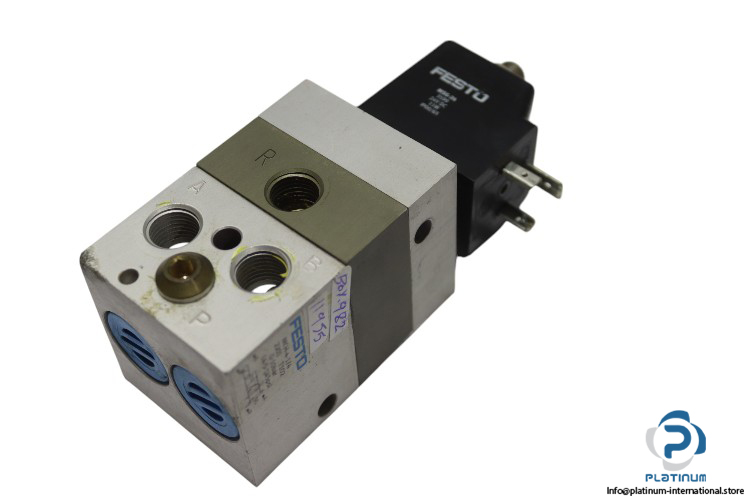

Festo MCH-4-1/4 Single Solenoid Valve with MSG-24 Coil

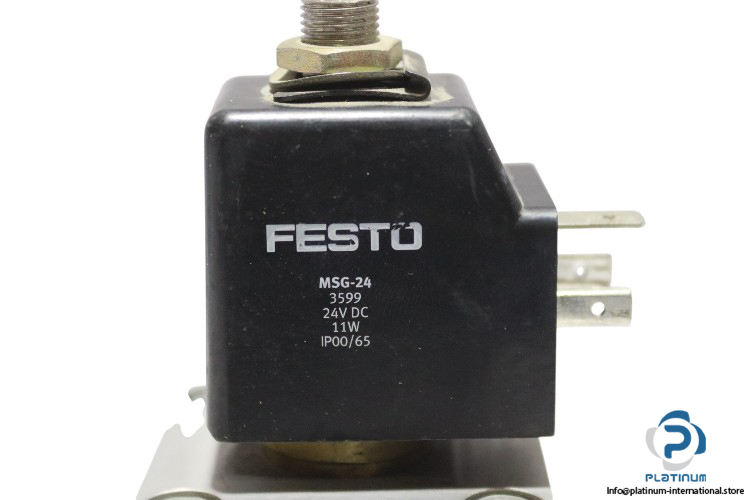

The Festo MCH-4-1/4 is a high-performance single solenoid valve designed for precise pneumatic control in automation systems. With a robust aluminum body and poppet seat design, it delivers a flow rate of up to 1300 l/min and operates efficiently across a wide pressure and temperature range. This unit is paired with the FESTO 3599 MSG-24 solenoid coil for reliable 24 V DC actuation.
Manufacturer: Festo
Type: Single Solenoid Valve
Model: MCH-4-1/4
Part No.: 2201
Solenoid Coil Attachment:
| Type of Actuation | Electrical |
| Function | 4/2 |
| Operating Pressure | 2 to 10 bar |
| Fluid | Air |
| Flow Rate | 1300 l/min |
| Design | Poppet Seat |
| Pneumatic Connection | G1/4 |
| Medium Temperature | -10 to 60 °C |
| Ambient Temperature | -5 to 40 °C |
| Material | Aluminum |
| Protection Class | IP65 |
| Part No. | 3599 |
| Voltage | 24 V DC |
