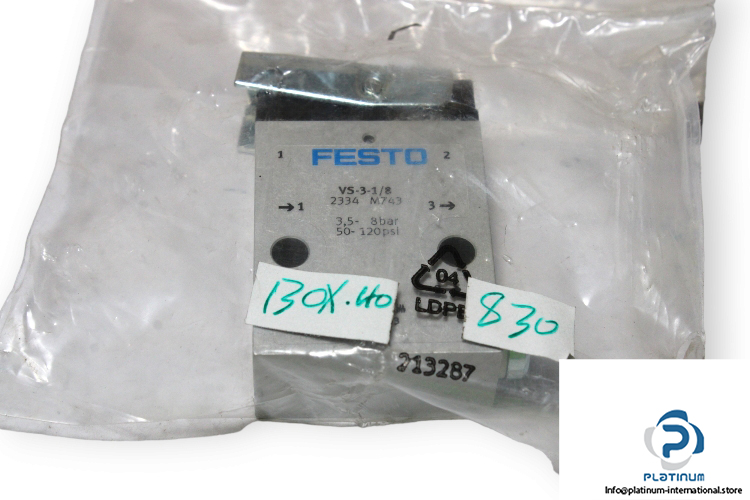

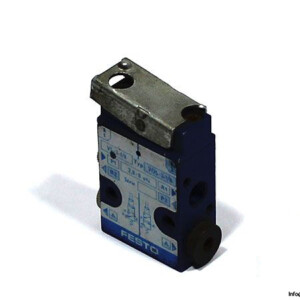

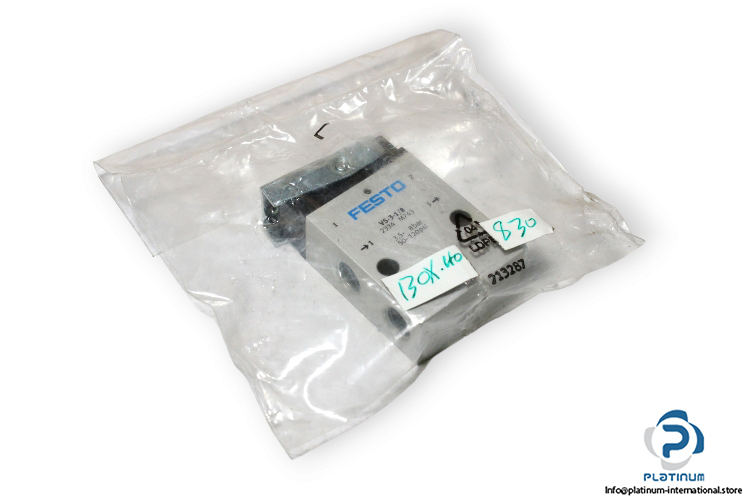

Festo 2334 Stem Actuated Valve
Neu
Auf Lager2 EinheitenVersandbereit
STEM ACTUATED VALVE
FESTO VS-3-1/8 mechanically actuated valve with 3/2-way function, poppet seat design, and anodized aluminum body for pneumatic applications.3/2-wayActuatedAirAluminumAnodizedconnectionFestoG1/8IndustrialMechanicalPneumaticPoppetSeatStemValveVS-3-1/8
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FESTO VS-3-1/8 STEM ACTUATED VALVE
The FESTO VS318 is a robust stem-actuated valve engineered for reliable mechanical control of air flow. Designed with a poppet seat mechanism and a 3/2-way, normally closed, monostable function, it offers dependable operation in a compact anodized aluminum body.
Manufacturer: FESTO
Type: Stem Actuated Valve
Model: VS-3-1/8
Part No.: 2334
| Fluid | Air |
| Design | Poppet seat |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Mechanically |
| Operating Pressure | 3.5 to 8 bar |
| Nominal Flow Rate | 146 l/min |
| Actuating Force | 3 N |
| Pneumatic Connection | G1/8 |
| Material | Anodized aluminum |
| Ambient Temperature | -10 to 60 °C |
