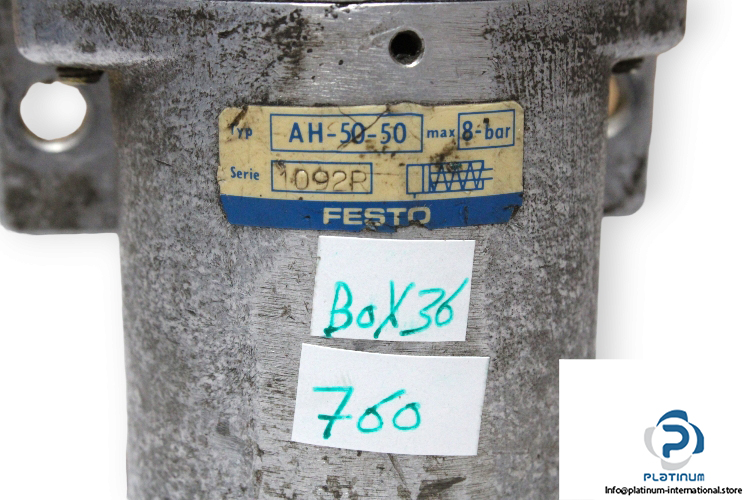

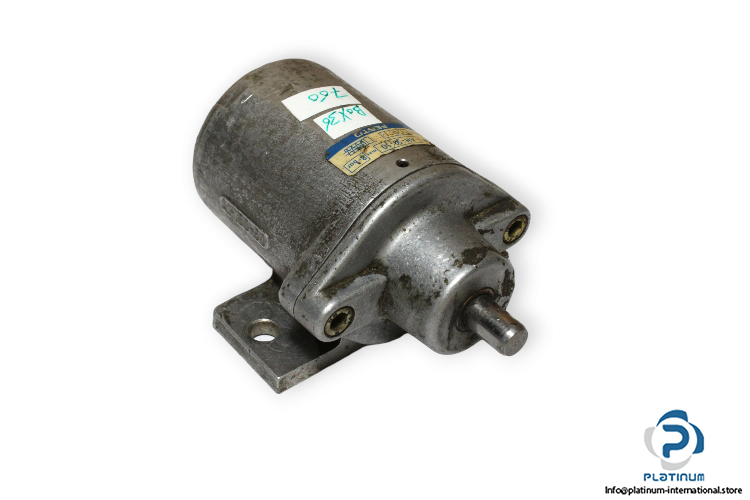

Festo 2390 Single Acting Cylinder

Manufacturer: FESTO
Type: Single acting cylinder
Model: AH-50-50
Part No.: 2390

Mode of operation: Single, pushing
Shape piston: Round
Shape of piston rod: Round
Piston, nominal size: 50
Stroke: 50 mm
Piston rod diameter: 10 mm
Operating pressure min.: 1,5 bar
Operating pressure max.: 8 bar
Minimum ambient temperature: -20 °C
Maximum ambient temperature: 80 °C
Material of cap: Cast aluminium,Die-cast aluminium
Material of piston rod: High-alloy steel
Air connection type cover cap: Female thread
EE Connecting thread for end cap: G 1/4
Effective force (theor.) at 6 bar, adv: 0.1020 N
