Festo 30475 Double Solenoid Valve
Neu
Auf Lager10 EinheitenVersandbereit
DOUBLE SOLENOID VALVE
FESTO JMVH-5-1/8-B 5/2 double solenoid valve with 13464 coil offers precise pilot-controlled actuation and 1000 l/min airflow for compressed air systems.134645/2AirAutomationcoilDoubleFestoflowHighIndustrialJMVH-5-1/8-BPilot-ControlledPneumaticsolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

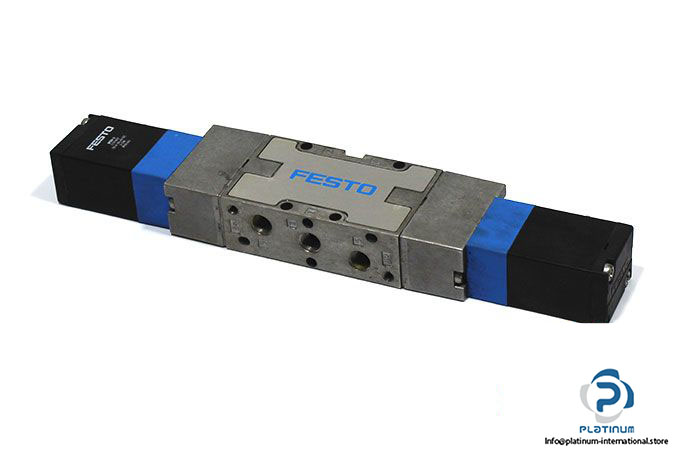

FESTO JMVH-5-1/8-B DOUBLE SOLENOID VALVE WITH 13464 COIL
The FESTO JMVH-5-1/8-B is a high-performance 5/2 double solenoid valve engineered for fast and precise pneumatic actuation. With a pilot-controlled mechanism, durable aluminum housing, and optimized flow characteristics, it is suitable for a wide range of industrial automation systems.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: JMVH-5-1/8-B
Part No.: 30475
Coil Technical Information
| Fluid | Compressed Air |
| Function | 5/2 Double Solenoid |
| Type of Actuation | Electrically |
| Operating Pressure | 2 / 10 bar |
| Standard Nominal Flow Rate | 1000 l/min |
| Type of Control | Pilot-controlled |
| Pneumatic Connection | G1/8 |
| Pilot Exhaust Air Port 84, 82 | M5 |
| Width | 26 mm |
| Housing Material | Die-cast Aluminum |
| Seals Material | NBR |
| Fluid Temperature | -5 / 50 °C |
| Attachment | FESTO 13464 SOLENOID COIL |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
