Festo 30615 Double Solenoid Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
DOUBLE SOLENOID VALVE WITH COIL
FESTO JMEH-5/2-1/8-P double solenoid valve with MEH-3-24V DC coil, 5/2 way function, 500 l/min flow rate, and durable die-cast aluminum body.24v5/2Aluminumcoilconnectiondcdie-castDoubleFestoG1/8IndustrialJMEH-5/2-1/8-PMEH-3-24VPneumaticsolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

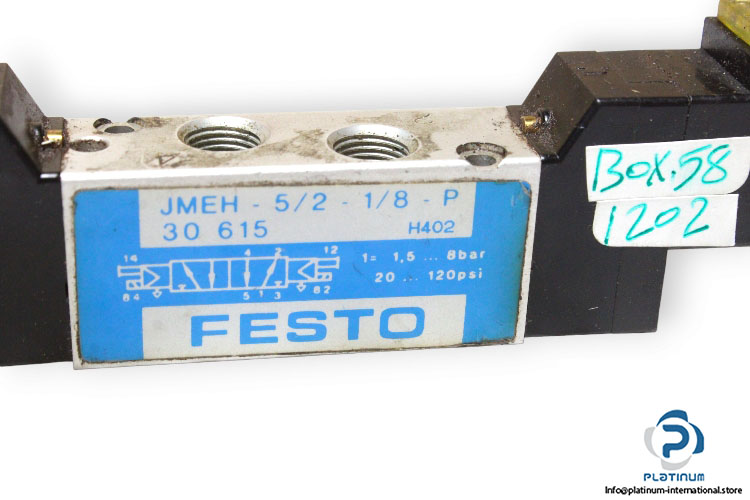

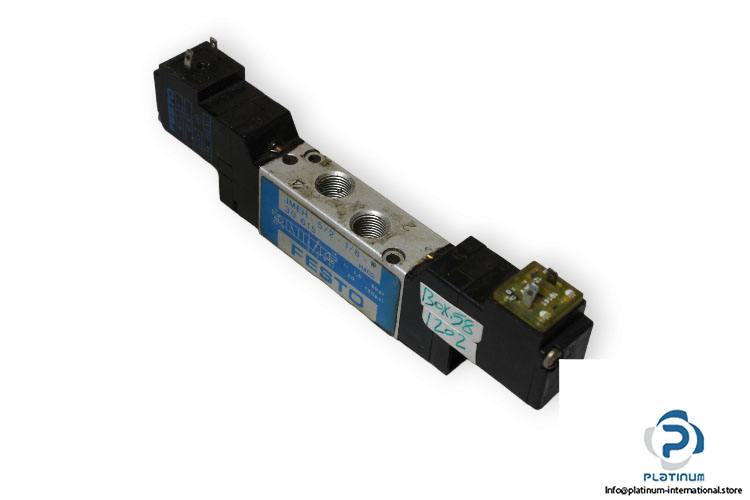

FESTO JMEH-5/2-1/8-P DOUBLE SOLENOID VALVE WITH COIL
The FESTO JMEH-5/2-1/8-P is a high-performance double solenoid valve designed for precise air control applications. With robust construction and efficient electrical actuation, it ensures smooth operation and durability in industrial environments. Supplied with a FESTO MEH-3-24V DC solenoid coil for reliable power and compact integration.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: JMEH-5/2-1/8-P
Part No.: 30615

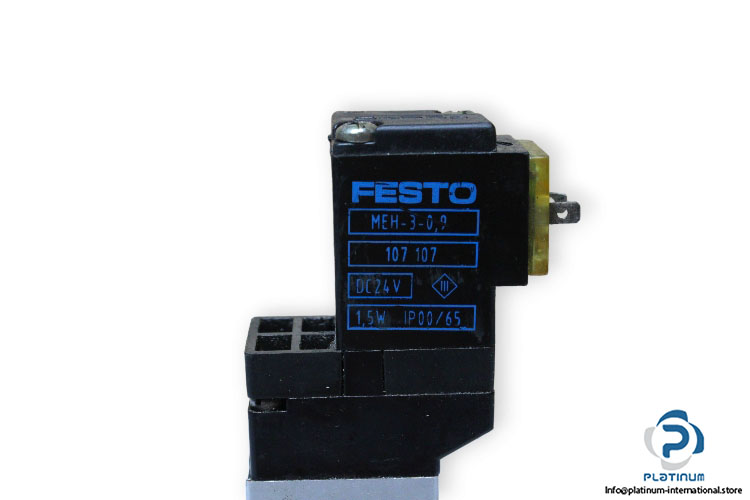

Coil Technical Information
| Fluid | Air |
| Valve Function | 5/2 Way |
| Type of Actuation | Electrically |
| Operating Pressure | 1.5 to 8 bar |
| Nominal Flow Rate | 500 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast Aluminum |
| Ambient Temperature | -5 to 50 °C |
| Solenoid Coil Attachment | FESTO 107 107 |
| Part No. | 107107 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
