Festo 3394 Stem Actuated Valve
Gebraucht
Auf Anfrage verfügbar
STEM ACTUATED VALVE
FESTO VS-4-1/8 is a mechanically operated 4/2-way valve with poppet seat design, delivering reliable pneumatic control in compact systems.4/2-WayActuatedAluminumAnodizedControlFestoflowG1/8IndustrialmechanicallyMonostablePneumaticPoppetSeatStemValveVS-4-1/8
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

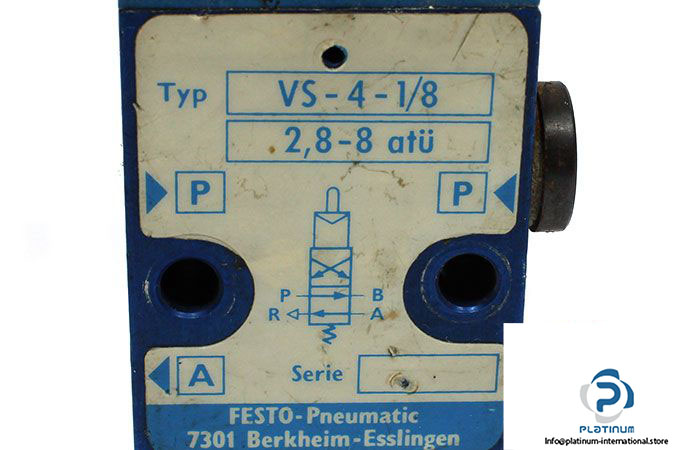

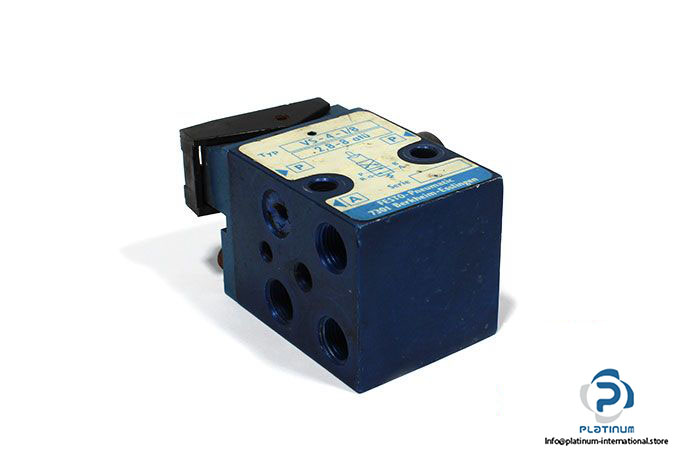

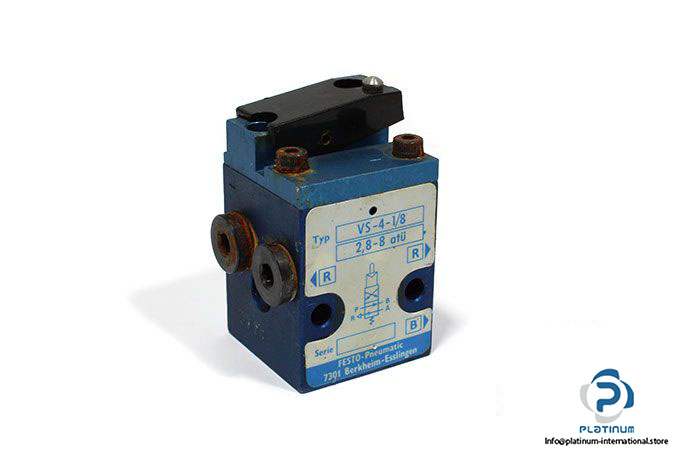

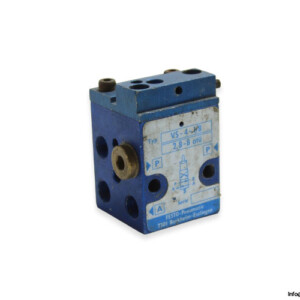

FESTO VS-4-1/8 STEM ACTUATED VALVE
The FESTO VS418 is a robust stem actuated valve engineered for mechanical actuation in pneumatic systems. Its monostable 4/2-way function and poppet seat design offer dependable flow control, even under varying pressures and environmental conditions.
Manufacturer: FESTO
Type: Stem Actuated Valve
Model: VS-4-1/8
Part No.: 3394
| Fluid | Air |
| Design | Poppet seat |
| Function | 4/2-way, monostable |
| Type of Actuation | Mechanically |
| Operating Pressure | 3.5 / 8 bar |
| Nominal Flow Rate | 140 / 147 l/min |
| Actuating Force | 3.2 N |
| Pneumatic Connection | G1/8 |
| Material | Anodized aluminum |
| Ambient Temperature | -10 / 60 °C |
