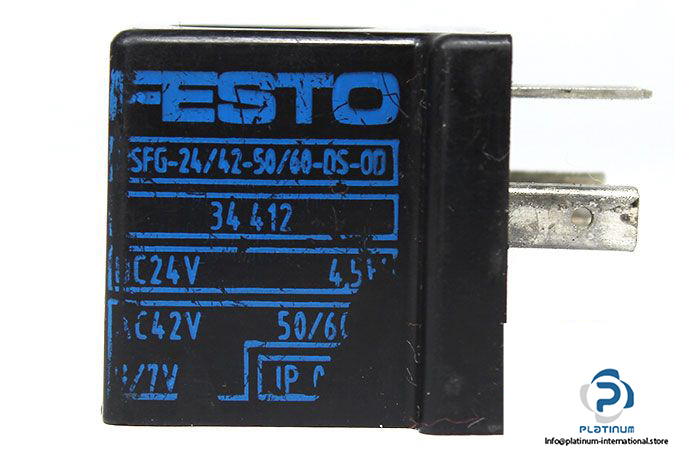

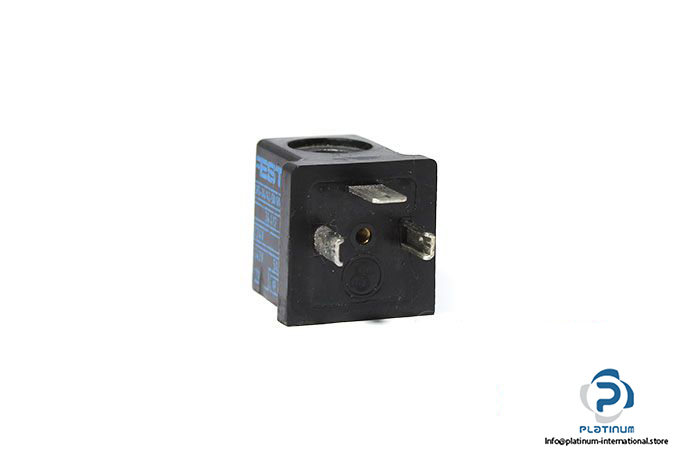

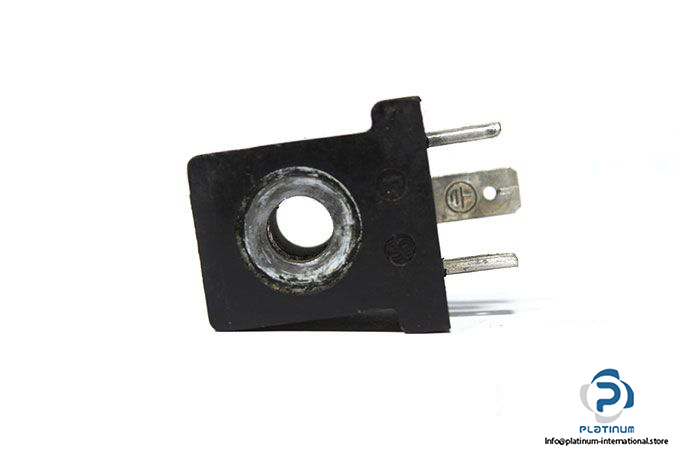

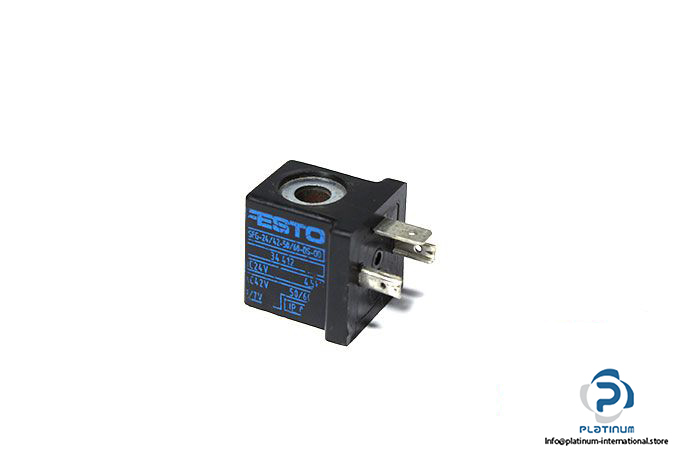

Festo 34412 Solenoid Coil

Manufacturer: FESTO

Type: Solenoid Coil

Model: MSFG-24/42-50/60-DS-OD

Part No.: 34412

MRN: 4052568009779

Plug design: Cylindrical

Power supply:

Voltage: 24 V DC

• Power consumption: 5 W

Voltage: 42 V AC

• Frequency: 50/60 Hz
• Initial power: 9 VA
• Holding power: 7 VA

Electrical connection: 3-pin

Pick up time: min. 10 ms

Inner diameter: 8.1 mm

Length: 29.2 mm

Solenoid coil material: Steel, Copper, Duroplast

Ambient temperature: -5 °C … 40 °C

Protection Class: IP65

Weight: 0.05 kg
