Festo 34494 32X100 Guide Unit
Gebraucht
Auf Lager1 EinheitVersandbereit
Guide Unit
Festo FENG-32-100-KF precision guide unit with recirculating ball bearing and attached DSW-32-100-P-B round cylinder. 100 mm stroke, 32 mm size, and high load capacity for industrial automation.16142534494AutomationBallbearingCylinderDSW-32-100-P-BFENG-32-100-KFFestoGuideIndustrialLinearP508PneumaticR402RecirculatingRoundUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

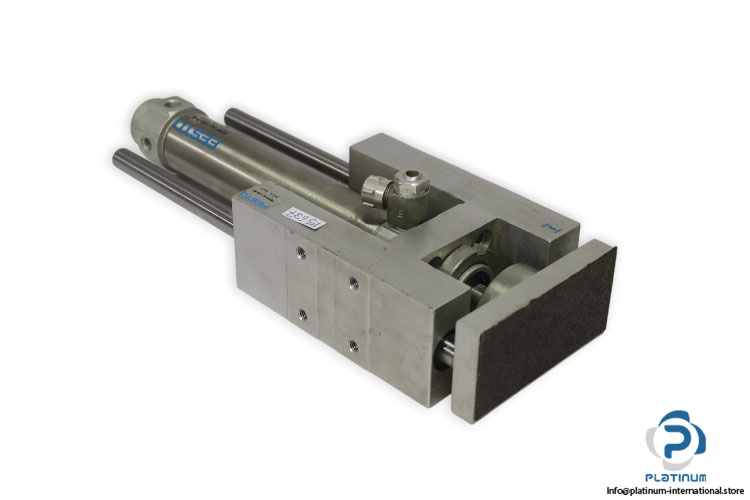

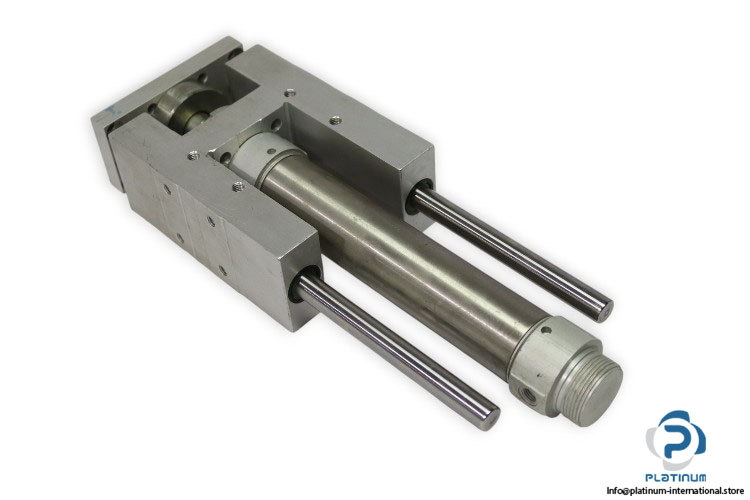

Festo FENG-32-100-KF Guide Unit
The Festo FENG-32-100-KF is a precision-engineered guide unit designed for smooth linear motion with high load capacity. Featuring a robust recirculating ball bearing guide and paired with a FESTO DSW-32-100-P-B round cylinder, this assembly delivers accurate and reliable operation in industrial automation applications.
Manufacturer: Festo
Type: Guide Unit

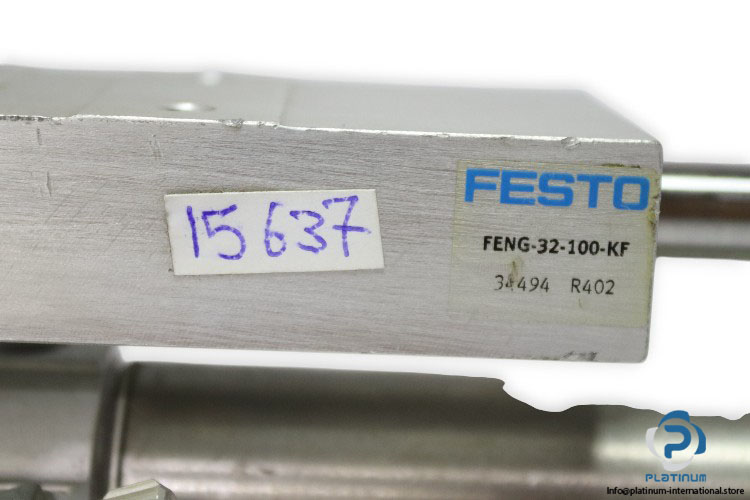

Model: FENG-32-100-KF
Part No.: 34494
Ref. Code: R402

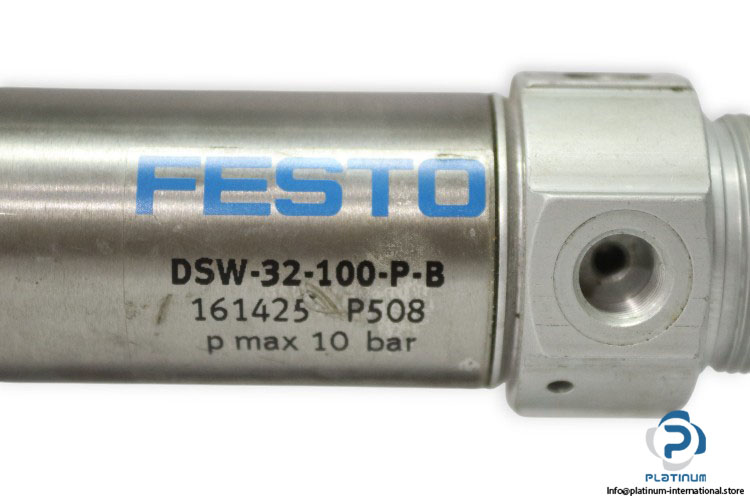

Attached Cylinder “ FESTO DSW-32-100-P-B
| Size | 32 |
| Stroke | 100 mm |
| Mounting Position | Any |
| Guide | Recirculating Ball Bearing Guide |
| Structural Design | Guide |
| Ambient Temperature | -20 °C / 80 °C |
| Max. Force | 750 N |
| Max. Force Static | 1020 N |
| Max. Torque Mx | 28 Nm |
| Max. Static Moment Mx | 38 Nm |
| Part No. | 161425 |
| Ref. Code | P508 |
| Stroke | 100 mm |
| Piston Diameter | 32 mm |
| Cushioning | Flexible cushioning rings or plates at both ends (P) |
| Assembly Position | Any |
| Position Detection | None |
| Variants | Single-ended piston rod |
| Operating Pressure | 1 to 10 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Dried compressed air |
| Ambient Temperature | -20 °C / 80 °C |
| Materials “ Housing | High alloy steel, non-corrosive |
| Materials “ Piston Rod | High alloy steel |
| Connection | G1/8 |
