Festo 34571 Self-Adjusting Shock Absorber
Gebraucht
Auf Lager1 EinheitVersandbereit
Self-Adjusting Shock Absorber
Festo YSR-8-8-C self-adjusting shock absorber with 8 mm stroke length, maximum impact speed of 3 m/s, and high-alloy steel housing. Designed for pushing, single-acting operation in industrial automation applications.AbsorberActingAdjustingAlloyAutomationdamperFestoHighIndustrialmountSelfShockSingleSteelThreadedYSR-8-8-C
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

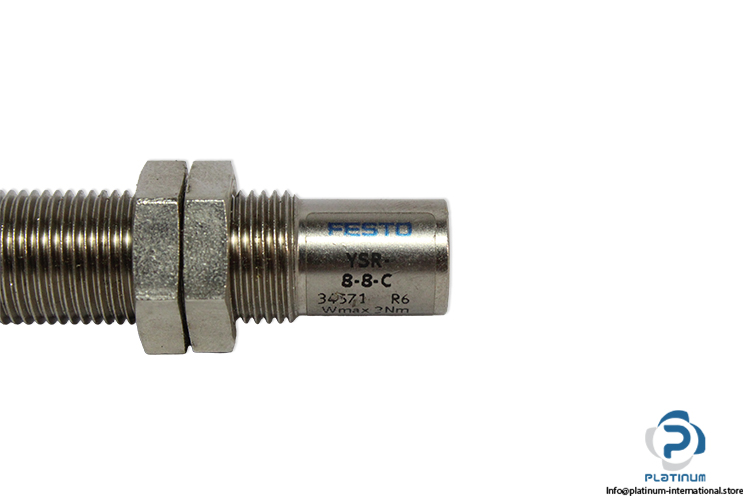

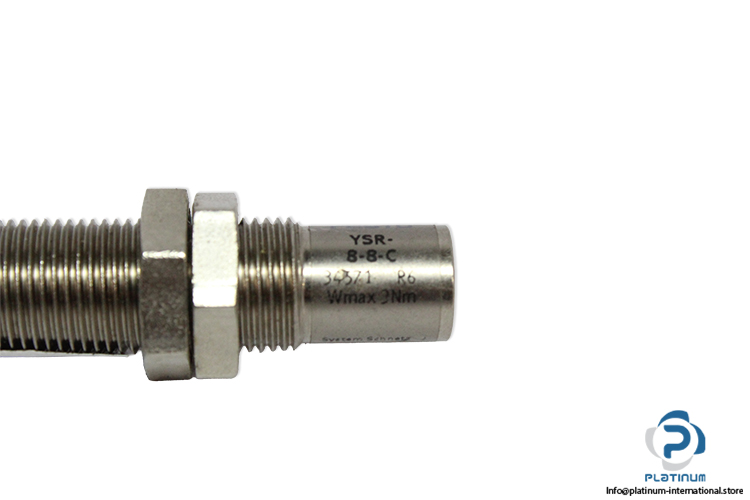

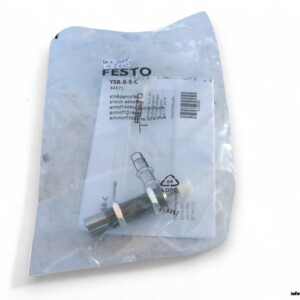

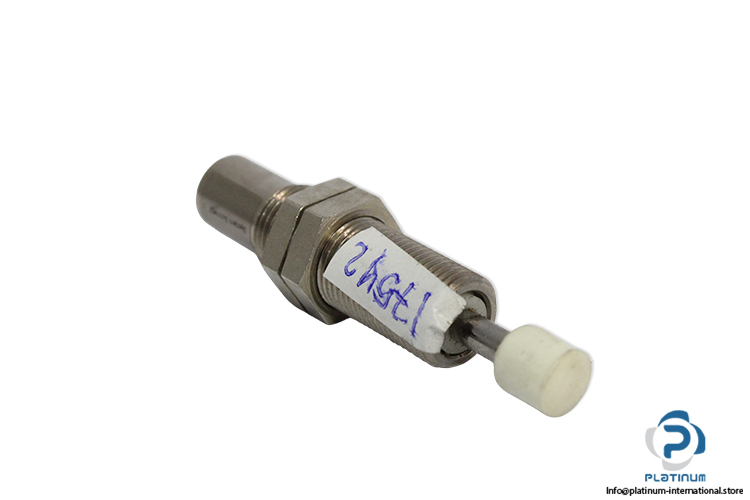

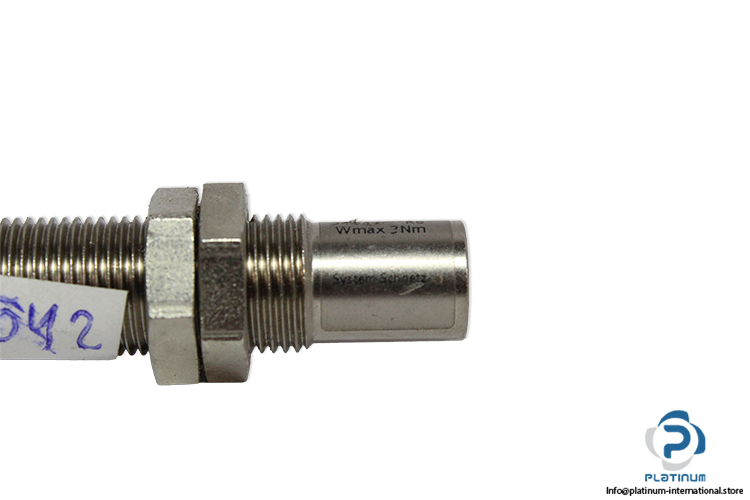

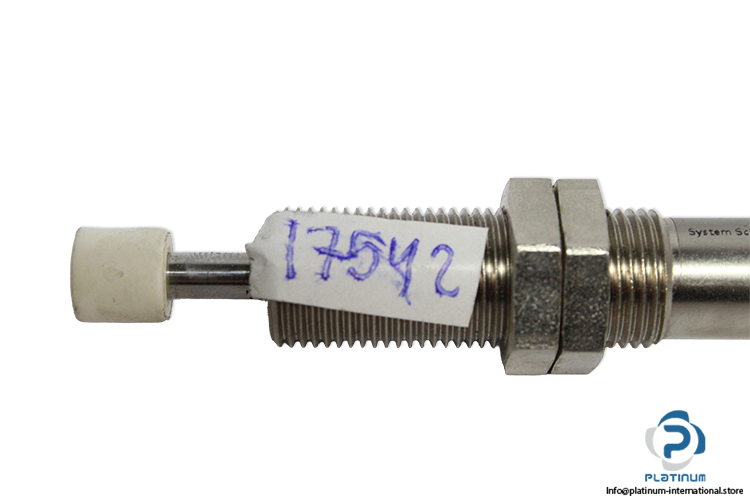

Festo YSR-8-8-C Self-Adjusting Shock Absorber
The Festo YSR-8-8-C is a self-adjusting shock absorber designed to provide reliable energy absorption and controlled deceleration in industrial automation systems. Its robust construction and precise damping characteristics ensure long service life and consistent performance.
Manufacturer: Festo
Type: Self-Adjusting Shock Absorber
Model: YSR-8-8-C
Part No.: 34571
Code: R6
| Size | 8 |
| Stroke Length | 8 mm |
| Rod Diameter | 4 mm |
| Piston Diameter | 8 mm |
| Total Length | 62.3 mm |
| Maximum Working Torque | 3 Nm |
| Type of Mounting | Threaded Lock Nuts |
| Impact Speed | Max. 3 m/s |
| Mode of Operating | Pushing, Single-Acting |
| Reset Force | 2.5 N |
| Housing Material | High-Alloy Steel |
| Ambient Temperature | -10 to 80 °C |
