Festo 34574 Shock Absorber With Mounting Flange
Selbsteinstellender Stoßdämpfer. Der FESTO YSR-20-25-C Stoßdämpfer gewährleistet eine sanfte Bewegungsdämpfung mit 60 J Energieabsorption, 25 mm Hub und einem gehäuse aus verzinktem Stahl. Wird mit der YSRF-S-20-C Montageflansch für sichere Installation geliefert.

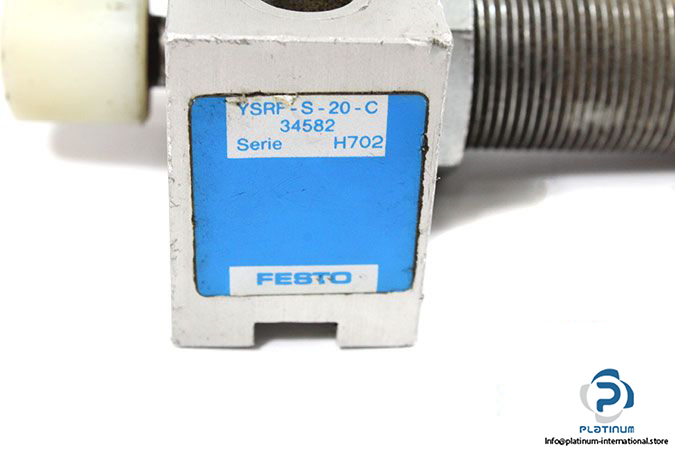

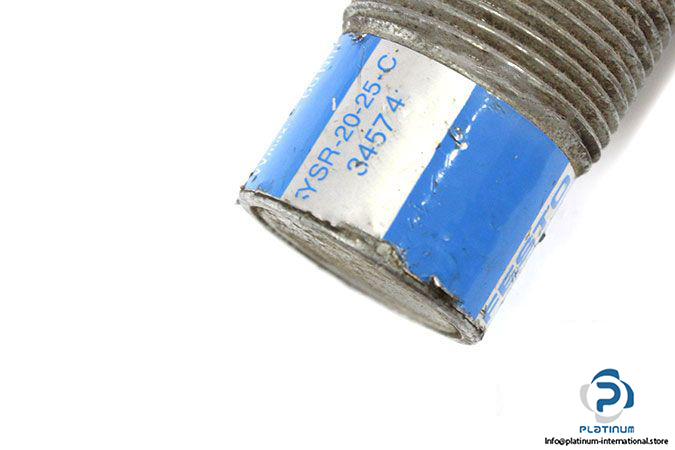

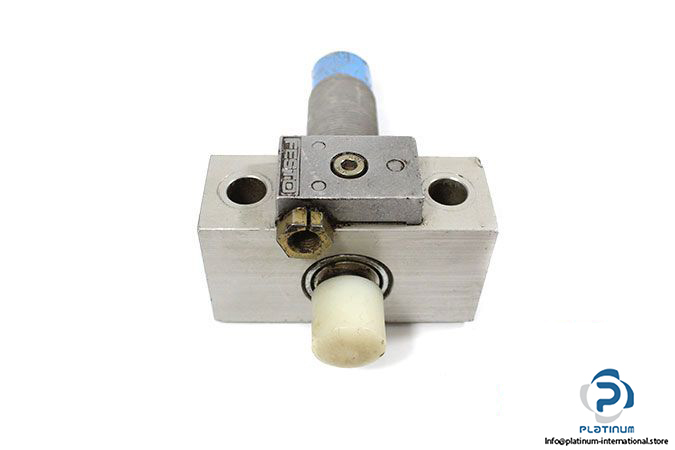

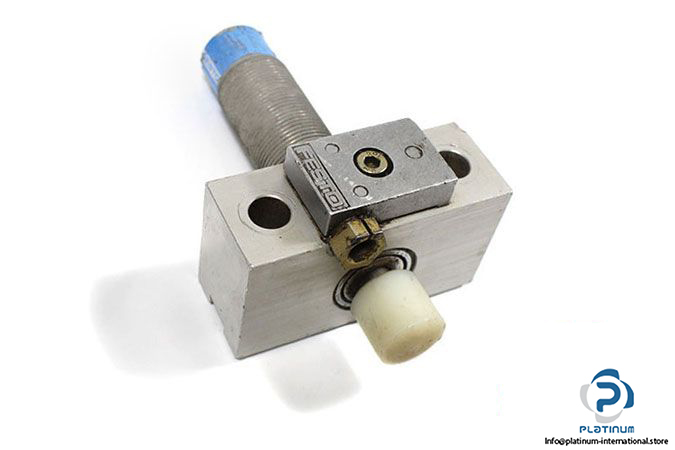

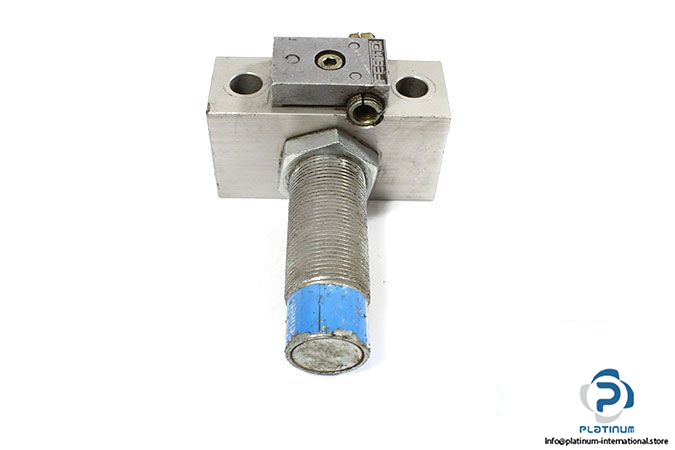

FESTO YSR-20-25-C Self-Adjusting Shock Absorber with YSRF-S-20-C Mounting Flange
The FESTO YSR-20-25-C Self-Adjusting Shock Absorber provides efficient energy absorption and vibration reduction for pneumatic and mechanical systems. It ensures smooth motion control and long service life. Supplied with the FESTO YSRF-S-20-C Mounting Flange for secure installation and precision alignment.
Manufacturer: FESTO
Type: Self-Adjusting Shock Absorber
Model: YSR-20-25-C
Part Number: 34574
Technical Information
| Maximum Energy Consumption per Stroke | 60 J |
| Cushioning | Self adjusting |
| Reset Force | 10 N |
| Housing Material | Steel galvanized |
| Piston Rod Material | High alloy steel |
| Size | 20 mm |
| Stroke Length | 25 mm |
| Rod Diameter | 10 mm |
| Cushioning Length | 25 mm |
| Maximum Stop Force | 3000 N |
| Diameter and Step for Threaded Surface | M26 x 1.5 |
| Temperature Range | minus 10 to 80 degree Celsius |

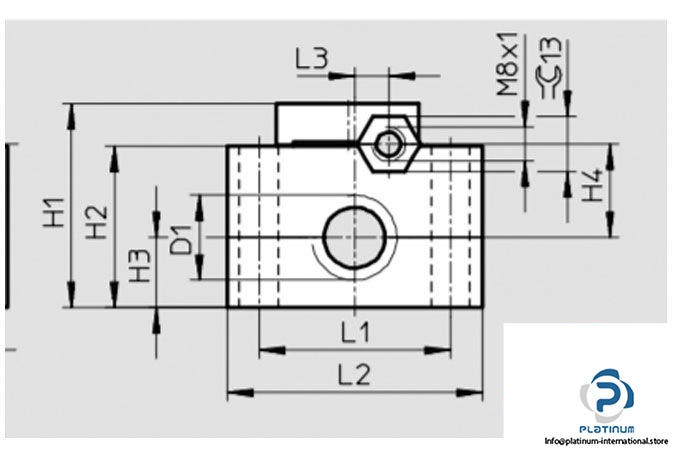

| Attachment | FESTO 34582 Mounting Flange |
| Part No. | 34582 |
| Type of Mounting | With through hole |
| Housing Material | Steel galvanized |
| Size | 20 mm |
| Diameter (D1) | 26 mm |
| Length (L2) | 80 mm |
| Height (H1) | 52 mm |
