FESTO 34721 ISO cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Pneumatic Cylinder
FESTO DSNU-25-320-PPV-A double-acting ISO cylinder with 25 mm piston diameter and 320 mm stroke. Designed for compressed air operation with adjustable pneumatic cushioning, M10 piston rod thread, and G 1/8 ports.25320ActingAirAutomationCompressedCylinderDoubleDsnuDSNU-25-320-PPV-AFestoIndustrialISOmmPneumaticSeriesStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

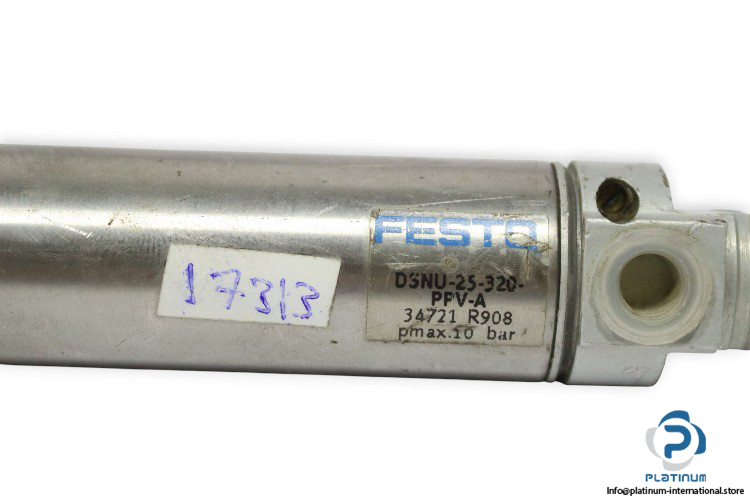

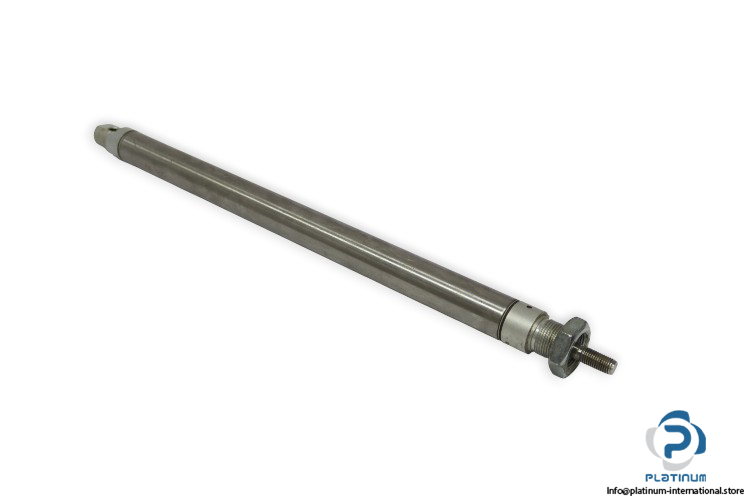

FESTO DSNU-25-320-PPV-A ISO Cylinder
The FESTO DSNU-25-320-PPV-A is a double-acting ISO standard pneumatic cylinder designed for precise linear motion in industrial automation systems. It features adjustable pneumatic cushioning at both ends, ensuring smooth operation and reduced mechanical stress.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DSNU-25-320-PPV-A
Part No.: 34721
Code: R908
| Stroke Length | 320 mm |
| Piston Diameter | 25 mm |
| Fluid | Compressed Air |
| Piston-Rod End | Male Thread |
| Piston Rod Thread | M10 × 1.25 |
| Cushioning | Pneumatic Cushioning, Adjustable At Both Ends |
| Cushioning Length | 17 mm |
| Operating Mode | Double-Acting |
| Operating Pressure | 1 To 10 Bar |
| Max. Pressure | 10 Bar |
| Temperature Range | ˆ’20 To 80 °C |
| Port Size | G 1/8 |
