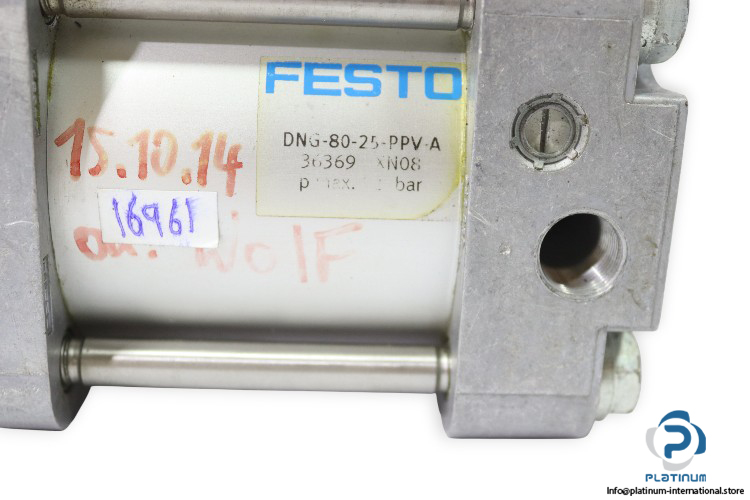

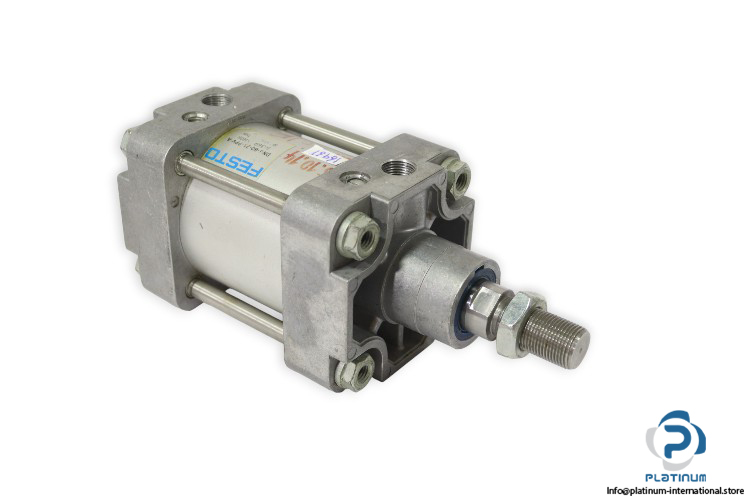

Festo DNG-80-25-PPV-A Standard Cylinder
A high-performance pneumatic cylinder engineered for powerful motion, long service life, and exceptional reliability under continuous industrial use. With a robust 80 mm piston diameter, adjustable pneumatic cushioning, and compatibility with proximity sensors, this cylinder ensures smooth operation, precise positioning, and reduced wear in demanding automation environments. Its durable construction makes it ideal for manufacturing lines, assembly stations, lifting mechanisms, and custom automation applications where strength and accuracy are essential.
Manufacturer: Festo
Type: Standard Cylinder
Model: DNG-80-25-PPV-A
Part No.: 36369
Code: XN08
| Operating Medium | Compressed Air |
| Mode of Operation | Double-Acting |
| Operating Pressure | 0.6 to 12 bar |
| Piston Diameter | 80 mm |
| Stroke Length | 25 mm |
| Cushioning PPV | Pneumatic Cushioning Adjustable at Both Ends |
| Piston Rod Thread | M20x1.5 |
| Piston-Rod End | Male Thread |
| Position Detection | For Proximity Sensor |
| Cushioning Length | 30 mm |
| Theoretical Force at 6 bar (Return Stroke) | 2,721 N |
| Theoretical Force at 6 bar (Advance Stroke) | 3,016 N |
| Connection | G3/8 |
| Ambient Temperature | -20 to 80 °C |
| Cover Material | Aluminum |
| Seal Material | NBR, TPE-U(PU) |
| Piston Rod Material | High Alloy Steel |
| Cylinder Barrel Material | Wrought Aluminum Alloy |
