Festo 3657863 ISO Cylinder
Neu
Auf Lager1 EinheitVersandbereit
ISO CYLINDER
Heavy-duty ISO pneumatic cylinder with 50 mm stroke and 63 mm piston diameter. Features double-acting operation, precise end cushioning, and high-strength construction for industrial automation systems.5063ActingActuatorAirAluminumAutomationcomasCylinCylinderDoubleDSBC-63-50-D3-PPVA-N3FestoG3/4HighIndustrialISOmmModelPistonPneumaticPressureStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

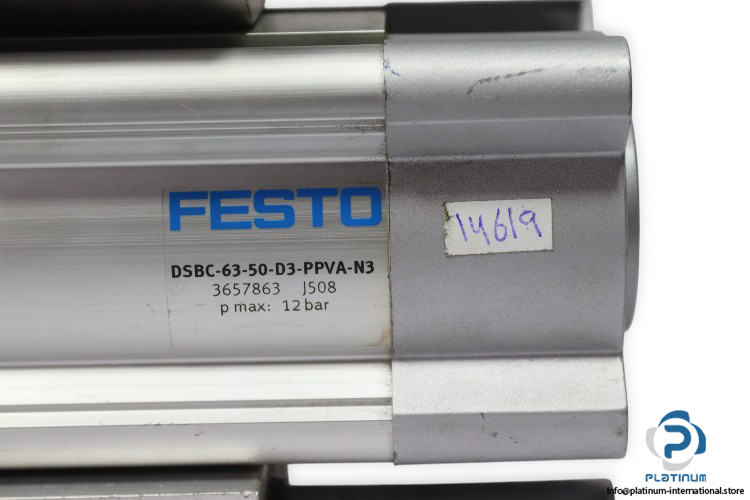

FESTO DSBC-63-50-D3-PPVA-N3 ISO CYLINDER
Robust and high-performance ISO cylinder designed for reliable operation in industrial automation systems. This double-acting pneumatic actuator from Festo features precise cushioning, corrosion-resistant materials, and long service life in demanding environments.
Manufacturer: Festo
Type: ISO Cylinder
Model: DSBC-63-50-D3-PPVA-N3
Part No.: 3657863
Ref. Code: J508
| Stroke | 50 mm |
| Piston Diameter | 63 mm |
| Piston Rod Thread | M16x1.5 |
| Operating Pressure | 0.4 bar to 12 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston Rod End | External thread |
| Cover Material | Die-cast aluminum, coated |
| Piston Seal Material | TPE-U(PU) |
| Material of Piston | Wrought aluminum alloy |
| Piston Rod Material | High-alloy steel |
| Ambient Temperature | -20 °C to 80 °C |
| Pneumatic Connection | G3/4 |
