Festo 3719 PE Converter

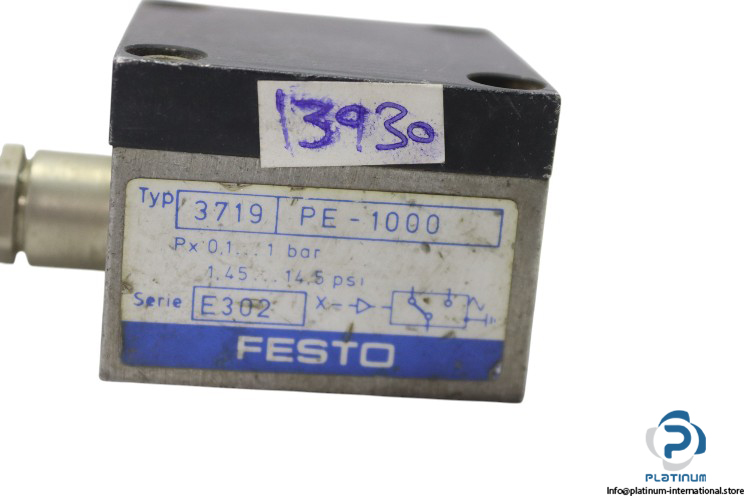

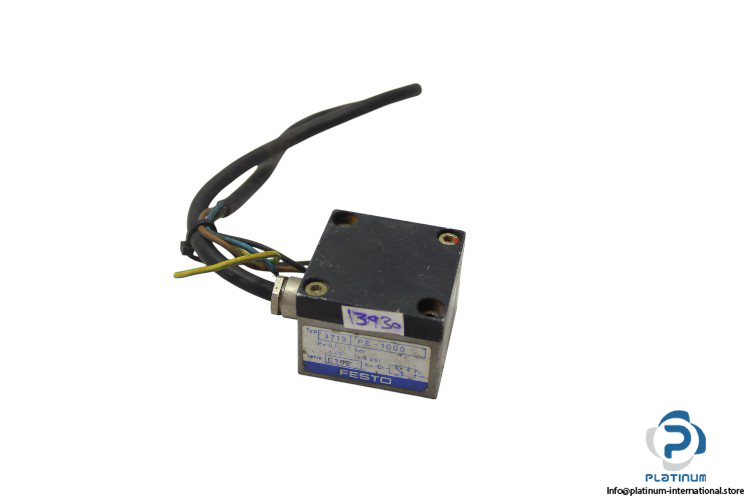

Festo PE-1000 PE Converter

The Festo PE-1000 PE converter is a high-quality device designed for reliable compressed air applications. With a wide operating pressure range from 0.1 bar to 1 bar, it ensures optimal control in industrial environments. Featuring a contact-based switching output, this converter operates with a fixed hysteresis threshold value for precise switching functionality.

Manufacturer: FESTO

Type: PE Converter

Model: PE-1000

MRN: 3719

Ref No: E302

Technical Data:

• Operating Pressure: 0.1 bar … 1 bar
• Operating Medium: Compressed air
• Contamination Level: 3
• Insulation Voltage: 2000 V
• Ambient Temperature: -10°C … 50°C
• Switching Output: Contact-based
• Switching Function: Threshold value with fixed hysteresis
• Switching Element Function: Changeover switch
• Electrical Connection: 4-wire cable
• Housing Material: Die-cast aluminum, anodized
• Degree of Protection: IP62
• Port Size: 5 mm
