PNEUMATIC VALVE
FESTO LC-3-1/4 pneumatic valve with 3/2-way function and VE-5 amplifier actuator for reliable low-pressure air control in industrial settings.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

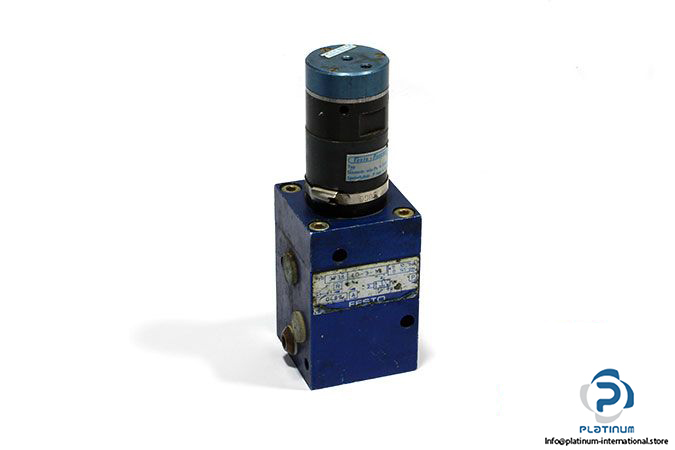

FESTO LC-3-1/4 PNEUMATIC VALVE WITH VE-5 AMPLIFIER ACTUATOR
The FESTO LC314 is a high-performance 3/2-way pneumatic valve engineered for precision air control applications. Manufactured from anodized aluminum for durability, this valve features pneumatic actuation and is compatible with G1/4 connections. The unit comes with the FESTO VE-5 Amplifier Actuator, designed to deliver responsive pilot control in low-pressure environments.
Manufacturer: FESTO
Type: Pneumatic Valve
Model: LC-3-1/4
Part No.: 3738
Actuator Technical Information
| Fluid | Air |
| Valve Function | 3/2-way |
| Type of Actuation | Pneumatically |
| Operating Pressure | 0 / 10 bar |
| Pneumatic Connection | G1/4 |
| Material | Anodized Aluminum |
| Ambient Temperature | -10 / 60 °C |

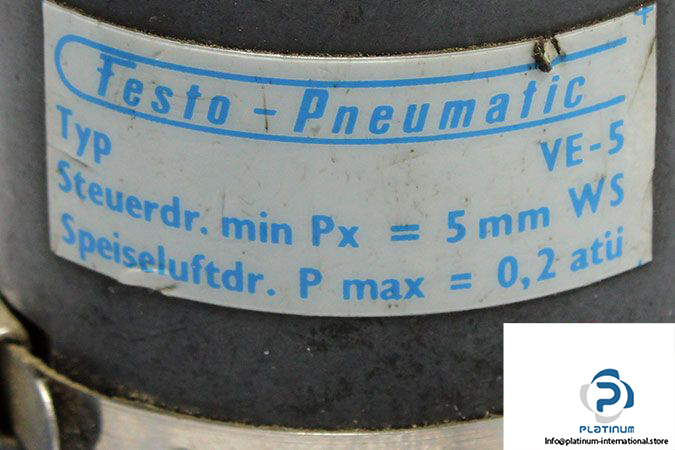

| Amplifier Actuator Attachment | FESTO VE-5 |
| Part No. | 3717 |
| Operating Pressure | 0.1 / 0.3 bar |
| Pilot Pressure Max. | 0.3 bar |
