Festo 43285 Double Solenoid Valve
Neu
Auf Lager4 EinheitenVersandbereit
DOUBLE SOLENOID VALVE
FESTO MDH-5/3G-D-1-C double solenoid valve with piston gate design, includes 119603 solenoid coil for efficient 5/3 way air control in industrial systems.5/3AluminiumCastcoilControlDieDoubleFestoGateIndustrialMDH-5/3G-D-1-CPistonPneumaticsolenoidValveWayWith
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

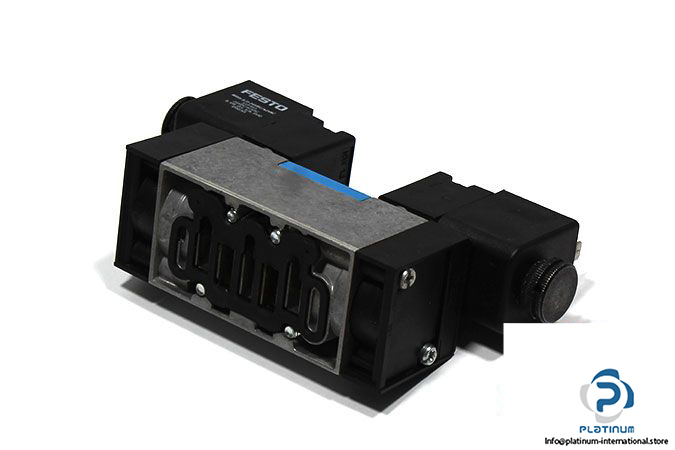

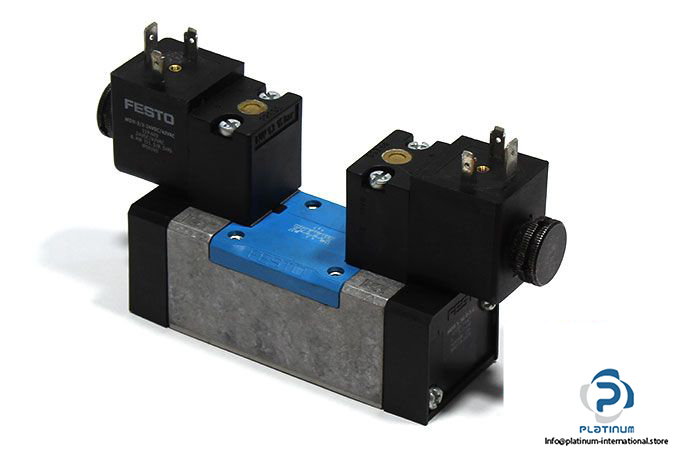

FESTO MDH-5/3G-D-1 C DOUBLE SOLENOID VALVE WITH COIL
The FESTO MDH-5/3G-D-1C is a precision-engineered double solenoid valve built for pneumatic air control in industrial automation. This 5/3 way valve features a piston gate design, high-quality aluminum die-cast body, and reliable sub-based connection. The unit includes a FESTO 119603 solenoid coil for consistent actuation across a wide voltage and frequency range.
Manufacturer: FESTO
Type: Double Solenoid Valve

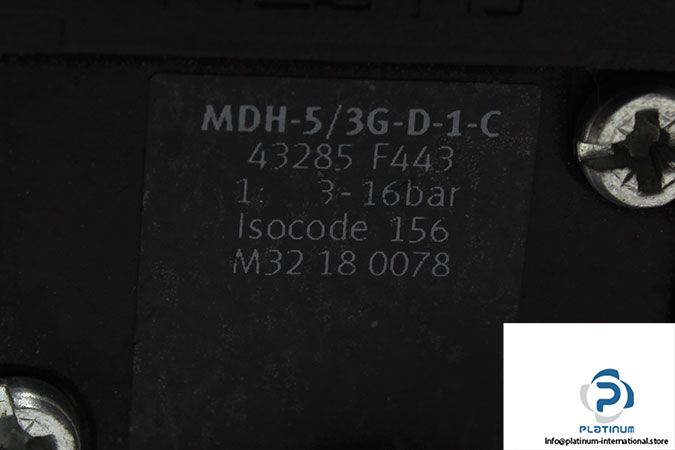

Model: MDH-5/3G-D-1-C
Part No.: 43286
Solenoid Coil Specifications
| Fluid | Air |
| Design | Piston Gate Valve |

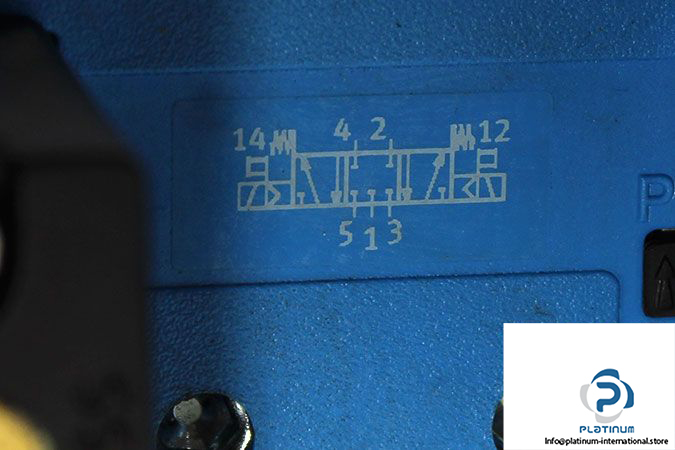

| Function | 5/3 Way |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 16 bar |
| Pneumatic Connection | Sub-Based |
| Material | Aluminium Die Cast |
| Ambient Temperature | -5 / 50 °C |

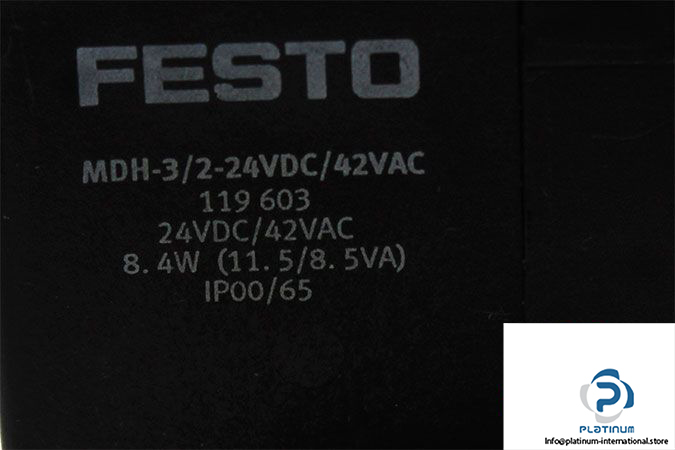

| Attachment | FESTO 119603 SOLENOID COIL |
| Part No. | 119603 |
| Supply Voltage | 24 V DC / 42 V AC |
| Frequency | 50 ... 60 Hz |
| Power Consumption | 8.4 W / 11.5 / 8.5 VA |
| Protection Class | IP00 / IP65 |
