Festo 43295 Double Solenoid Valve
Neu
Auf Lager1 EinheitVersandbereit
DOUBLE SOLENOID VALVE
FESTO MDH-5/3E-D-3-C double solenoid valve with 119603 coil offers 5/3 exhausted functionality, sub-based connection, and IP65-rated protection.1196035/3ActuatedAluminumcoilDoubleElectricallyExhaustedFestoIndustrialIP65MDH-5/3E-D-3-CPneumaticsolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

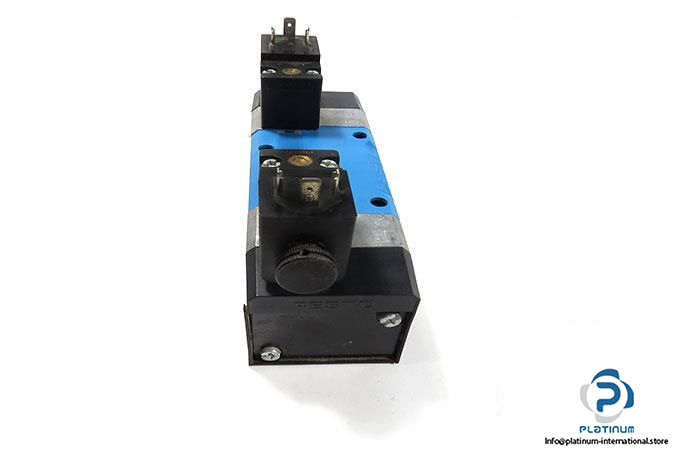

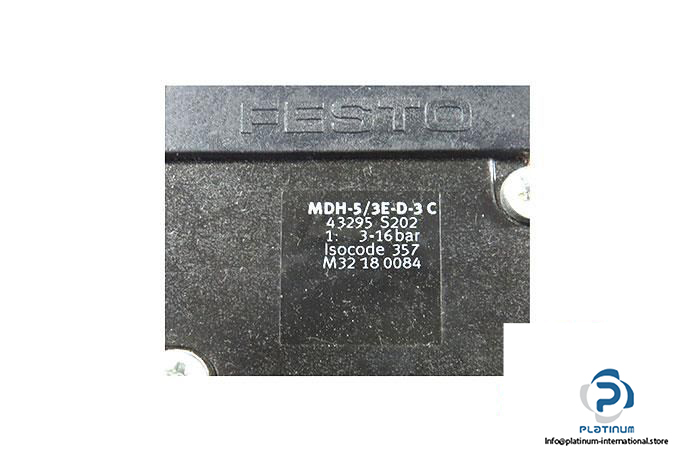

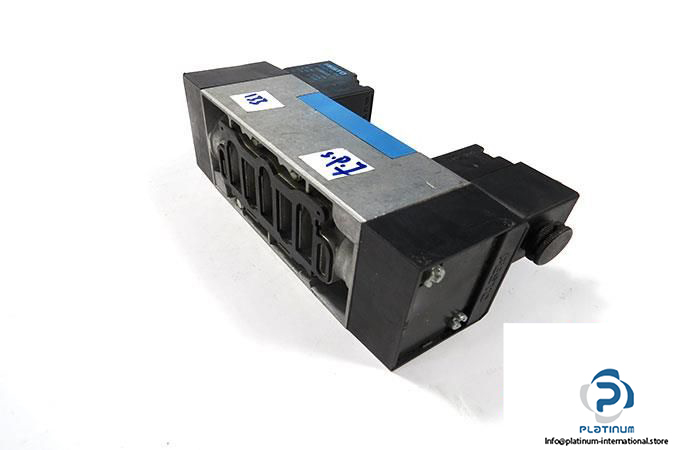

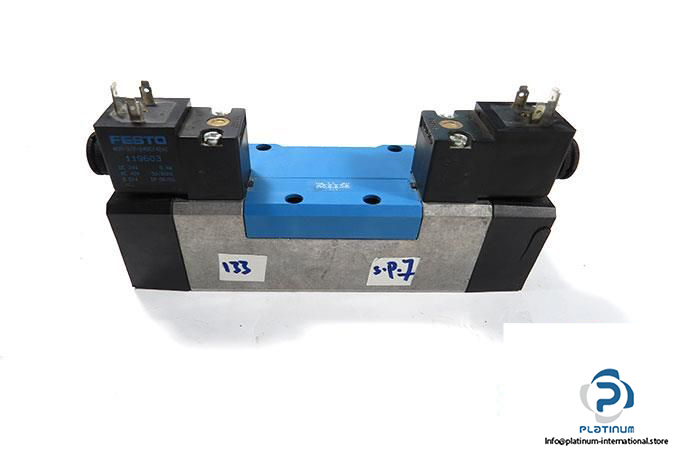

FESTO MDH-5/3E-D-3 C DOUBLE SOLENOID VALVE WITH SOLENOID COIL
The FESTO MDH-5/3E-D-3C is a high-performance double solenoid valve engineered for reliable pneumatic control in industrial systems. Designed for 5/3 exhausted functionality, this valve supports electrically actuated operations and is built with durable aluminum for long-term use. Paired with the FESTO 119603 Solenoid Coil, it offers enhanced responsiveness and protection for demanding environments.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MDH-5/3E-D-3-C
Part No.: 43295
Solenoid Coil Technical Information
| Fluid | Air |
| Valve Function | 5/3 Exhausted |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 16 bar |
| Pneumatic Connection | Sub Based |
| Material | Aluminum |
| Ambient Temperature | -5 / 50 °C |
| Attachment | FESTO 119603 SOLENOID COIL |
| Part No. | 119603 |
| Voltage | 24 V DC / 42 V AC |
| Frequency | 50 ... 60 Hz |
| Power Consumption | 8.5 VA / 8.4 W |
| Protection Class | IP65 |
