Festo 4503 Pneumatic Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
Pneumatic Valve
The Festo J-5-PK-3 Pneumatic Valve offers a 5/2 bistable valve function with a 105 l/min flow rate and 2-8 bar operating pressure. Designed for industrial automation, it features a polymer die-cast zinc housing for enhanced durability.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

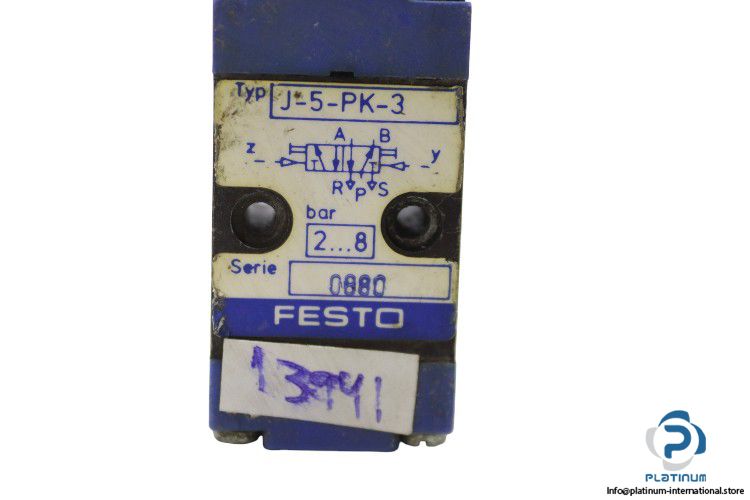

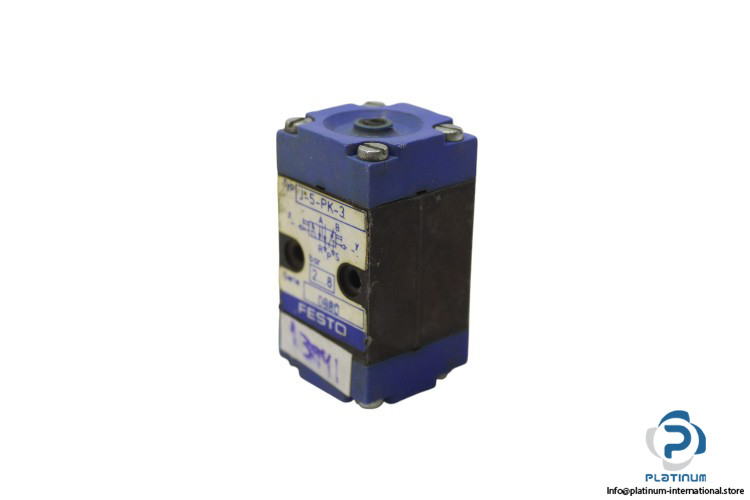

Festo J-5-PK-3 Pneumatic Valve
The Festo J-5-PK-3 Pneumatic Valve is a high-performance 5/2 bistable valve designed for precise control in pneumatic systems. With a nominal flow rate of 105 l/min, it operates efficiently within a pressure range of 2 to 8 bar, offering reliable performance for industrial applications.
Manufacturer: FESTO
Type: Pneumatic Valve
Model: J-5-PK-3
Part No.: 4503
Ref No.: 0880
Technical Data:
- Valve Function: 5/2, bistable
- Standard Nominal Flow Rate: 105 l/min
- Pneumatic Connection 1: PK-3
- Operating Pressure: 2 bar – 8 bar
- Nominal Width: 2.5 mm
- Changeover Time: 9 ms
- Operating Medium: Compressed air
- Ambient Temperature: 0 °C … 60 °C
- Housing Material: Polymer Die-cast zinc
