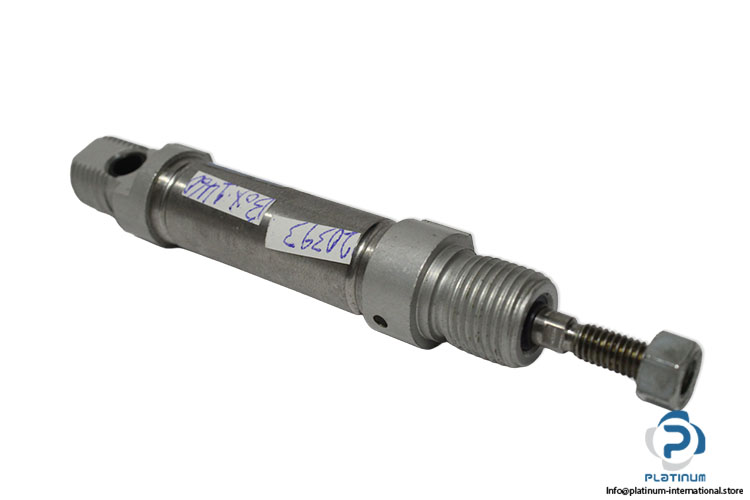

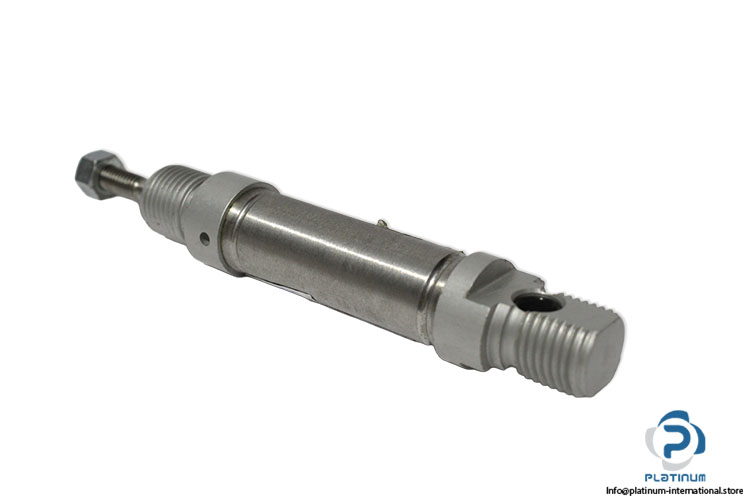

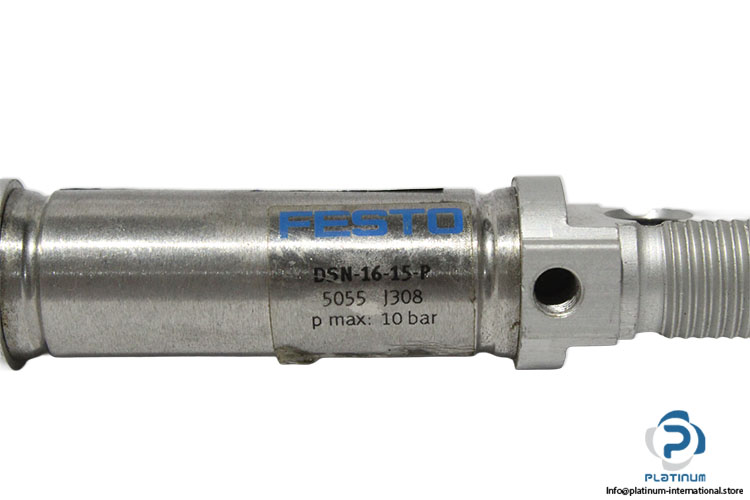

Festo 5055 ISO Cylinder
Neu
Auf Lager1 EinheitVersandbereit
ISO Zylinder Festo DSN-16-15-P ist ein doppeltwirkender pneumatischer ISO Zylinder mit 15 mm Hub, 16 mm Bohrung, M6 Kolbenstangengewinde und korrosionsbeständiger Konstruktion für industrielle Automatisierungsanwendungen.
1516ActingActuatorAirAutomationCompactCorrosionCylinderDoubleDSNFestoIndustrialISOpPneumaticResistant
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 5055 |
| Code | J308 |
| Series | DSN |
| Fluid | Compressed Air |
| Stroke | 15 mm |
| Bore Size | 16 mm |
| Piston Rod Diameter | 6 mm |
| Operating Mode | Double acting, Single rod |
| Variants | Single-ended piston rod |
| Cushion Type | Flexible cushioning rings/plates at both ends |
| Rod Direction | One Side |
| Piston Rod End | Male |
| Mounting type | with accessories |
| Shape | Circular |
| Operating pressure | max. 1.0 MPa /10 bar |
| Piston rod thread | M6 |
| Port size | 5mm |
| Material cover | Wrought aluminum alloy neutral anodisation |
| Material Seals | NBR |
| Material Piston Rod | High alloy steel, non-corrosive |
| Material of cylinder barrel | High alloy steel, non-corrosive |
| Ambient temperature | -20 to 80°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097385 |
| Weight | 0,05 |
