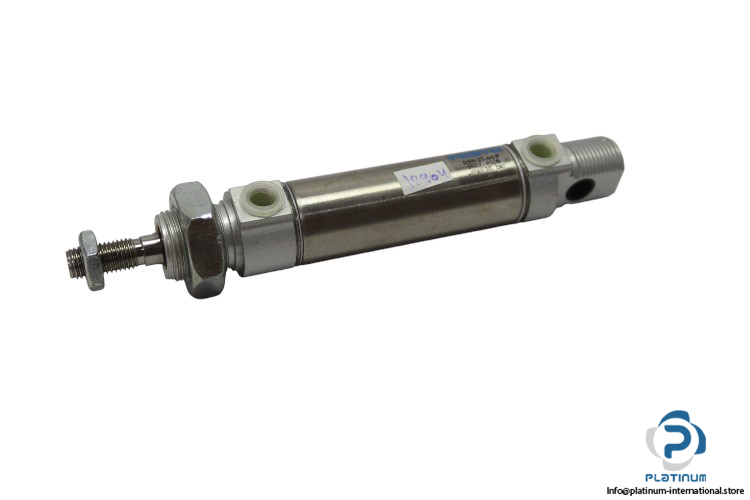

Festo 5077 Round Cylinder
Neu
Auf Lager1 EinheitVersandbereit
Round Cylinder
The Festo DSN-25-40-P round cylinder features a 25 mm piston diameter and 40 mm stroke with a double-acting operation. Built for durability with high-alloy steel and aluminum, it provides reliable performance in compressed air applications up to 10 bar.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

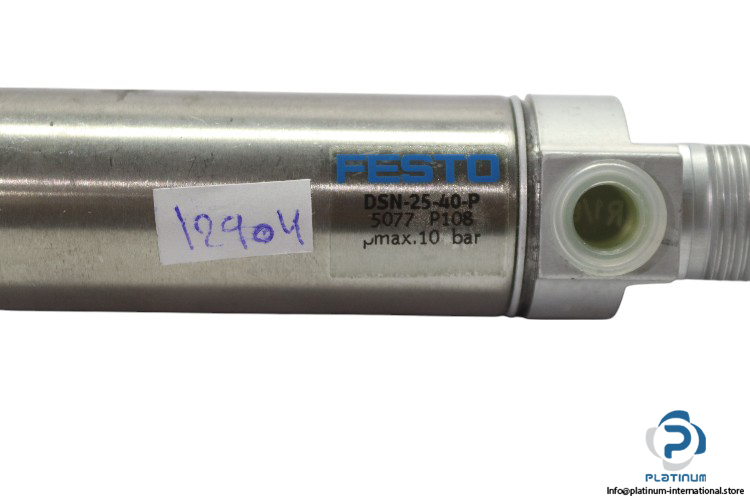

Festo DSN-25-40-P “ Round Cylinder
The Festo DSN-25-40-P round cylinder is a reliable double-acting actuator designed for precise motion control in industrial applications. Made from high-quality materials, it ensures durability and efficiency under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder
Model: DSN-25-40-P
Part No: 5077
| Piston Diameter | 25 mm |
| Stroke | 40 mm |
| Operating Medium | Compressed air |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double acting |
| Operating Pressure max. | 10 bar |
| Piston Rod End | Single-ended piston male rod |
| Ambient Temperature | -20 to 80 °C |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy steel |
| Material Cylinder Barrel | High-alloy steel |
