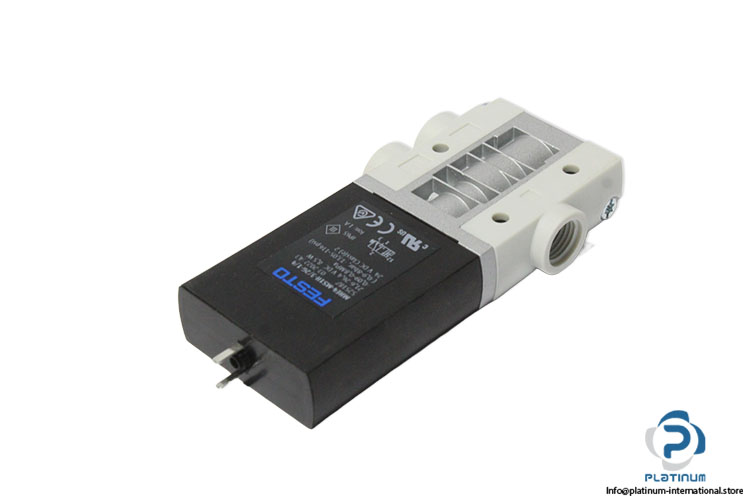

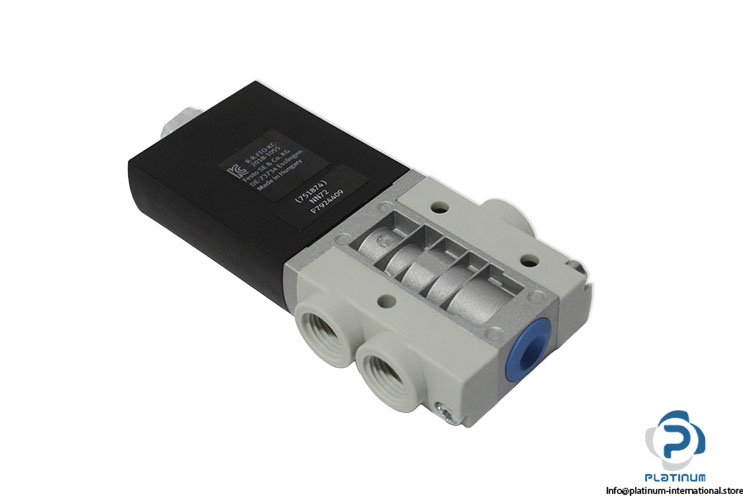

Festo 525187 Single Solenoid Valve
Neu
Auf Lager4 EinheitenVersandbereit
Single Solenoid Valve Compact FESTO single solenoid valve designed for precise pneumatic control, fast electrical actuation, and reliable performance in industrial automation applications.
24v3/2AirAutomationControldcElectricFestoIndustrialIP65MonostablePneumaticPoppetSinglesolenoidValveWay
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Part No. | 525187 |
| Fluid | Air |
| Construction Width | 18 mm |
| Nominal Size | 4 mm |
| Grid Dimension | 24 mm |
| Design | Pressure-Relieved Poppet Valve |
| Function | 3/2-Way, Closed, Monostable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 ... 8 bar/ -0.09 ... 0.8 MPa |
| Nominal Flow Rate | 400 l/min |
| Coil Data | 24 V DC, 2.125 / 8.5 W |
| Pneumatic Connection | G1/4 |
| Material | Die-Cast Zinc, Coated |
| Protection Class | IP65 |
| Ambient Temperature | -5 … 60 °C |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1092971 |
| Weight | 0,30 |
