Festo 527709 On/Off Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
ON/OFF VALVE
FESTO MS4-EE-1/4-10V24 on/off valve with rotary gate design and MSEB-3-24V DC solenoid coil for precise 3/2-way air control in industrial applications.3/2AirAutomationcoildcFestoG1/4GateIndustrialMS4-EE-1/4-10V24MSEB-3-24VOn/OffPneumaticRotaryshut-offsolenoidValveWith
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

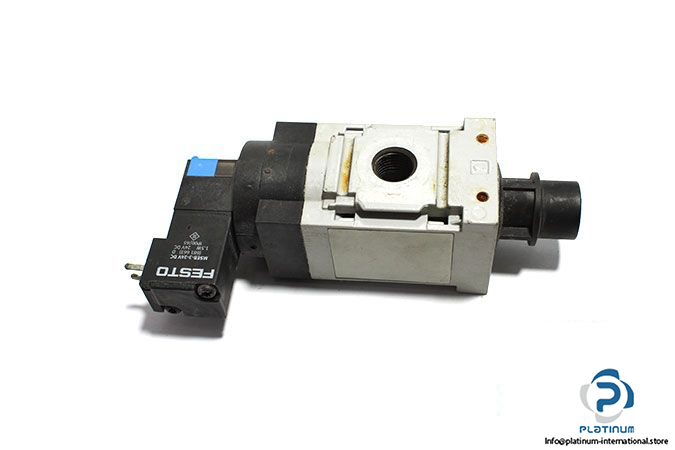

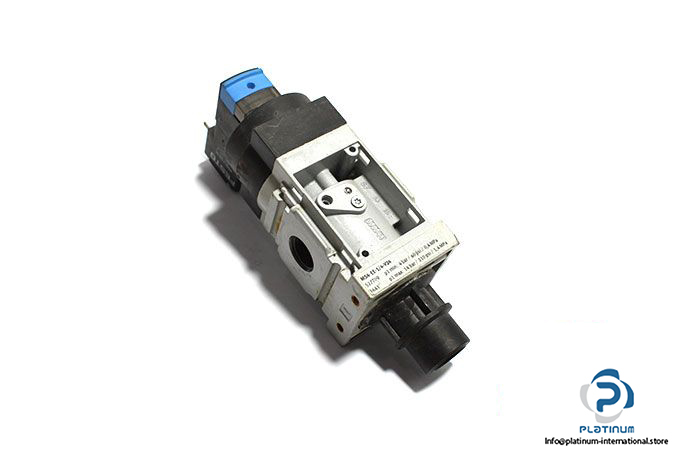

FESTO MS4-EE-1/4-10V24 ON/OFF VALVE WITH SOLENOID COIL
The FESTO MS4-EE-1/4-10V24 is a high-performance electrically actuated on/off valve designed for air flow control in industrial systems. Its rotary gate 3/2-way monostable configuration offers reliable shut-off functionality, making it ideal for dynamic automation environments. This unit is paired with the FESTO MSEB-3-24V DC solenoid coil for efficient signal actuation.
Manufacturer: FESTO
Type: On/Off Valve

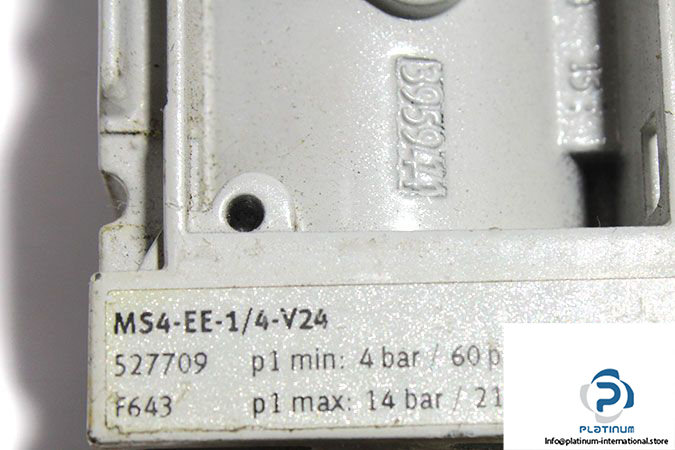

Model: MS4-EE-1/4-10V24
Part No.: 527709
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Rotary gate valve |
| Function | 3/2-way, closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 4 / 14 bar |
| Nominal Flow Rate | 1000 / 2000 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminum |
| Ambient Temperature | -10 / 60 °C |

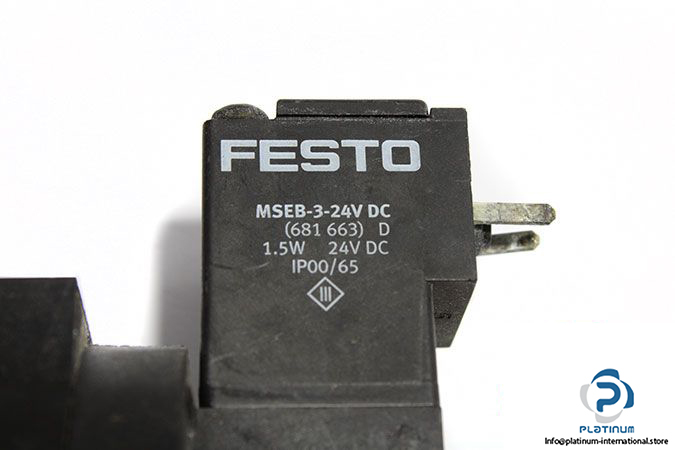

| Attachment | FESTO MSEB-3-24V DC SOLENOID COIL |
| Part No. | 681663 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
