Pneumatic System Air Preparation Equipment

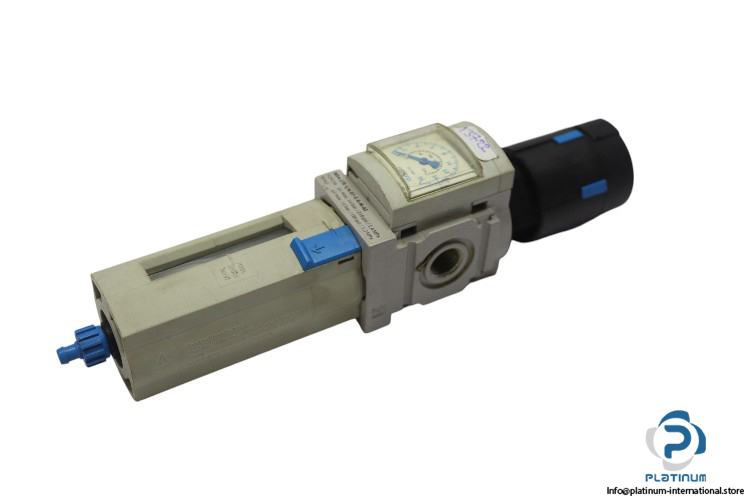

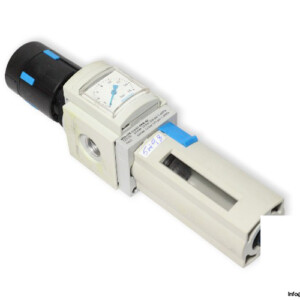

Festo 529156 Filter Regulator With Pressure Gauge

Name: FESTO 529156 FILTER REGULATOR WITH PRESSURE GAUGE
SKU: 1079136
Availability: LimitedAvailability

Gebraucht

Auf Anfrage verfügbar

FILTER REGULATOR

FESTO MS4-LFR-1/4-D7-ERM-AS Filter Regulator offers precise pressure control and 40-micron filtration for compressed air systems. Designed with a high flow rate, robust zinc body, and G 1/4 connection.

SKU

1079136

Kategorie

Air Preparation Equipment

Zustand

Gebraucht

1/4 1500 40 529156 Air Compressed connection Control die-cast Festo filter filtration G l/min Micron MS4-LFR-1/4-D7-ERM-AS Pneumatic Pressure regulator Zinc

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

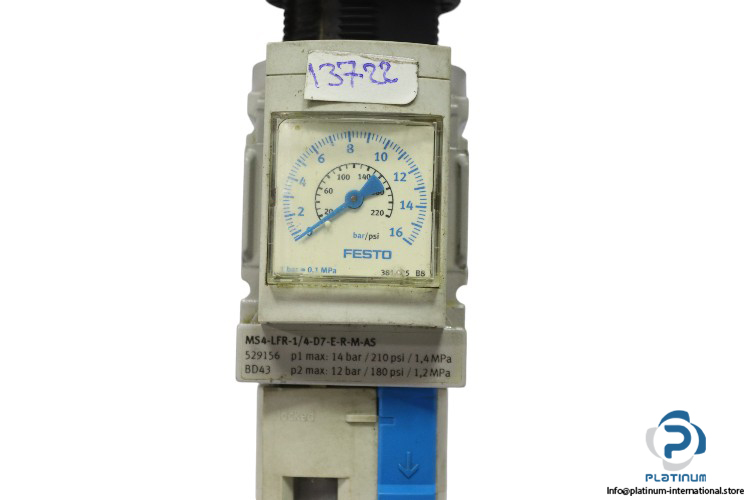

FESTO MS4-LFR-1/4-D7-ERM-AS FILTER REGULATOR

The FESTO MS4LFR14D7ERMAS Filter Regulator is a high-performance unit designed for precise pressure regulation and effective filtration in pneumatic systems. Engineered for reliability and efficiency, it supports a wide range of applications using compressed air or inert gases, and ensures consistent output with durable construction and high flow capacity.

Manufacturer: FESTO

Type: Filter Regulator

Model: MS4-LFR-1/4-D7-ERM-AS

Part No.: 529156

Fluid: Compressed Air / Inert Gases

Filtration Grade: 40 micro

Pressure Regulation Range: 0.5 / 12 bar

Operating Pressure: 0.8 / 14 bar

P1 Max.: 14 bar / 210 PSI / 1.4 MPa

P2 Max.: 12 bar / 180 PSI / 1.2 MPa

Nominal Flow Rate: 1500 l/min

Pneumatic Connection: G 1/4

Material: Die-Cast Zinc
