Festo 529176 Filter Regulator
Gebraucht
Auf Lager1 EinheitVersandbereit
Filter Regulator
The Festo MS6-LFR-1/2-D6-C-R-M-AS filter regulator ensures optimal pressure control and filtration with a 5 µm grade. It features a rotary actuator lock, a pressure gauge, and a high nominal flow rate of 5600 l/min for industrial pneumatic applications.55600comasControlFestofilterfiltrationflowIndustriall/minMS6-LFR-1/2-D6-C-R-M-ASPneumaticPressureregulatorµm
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

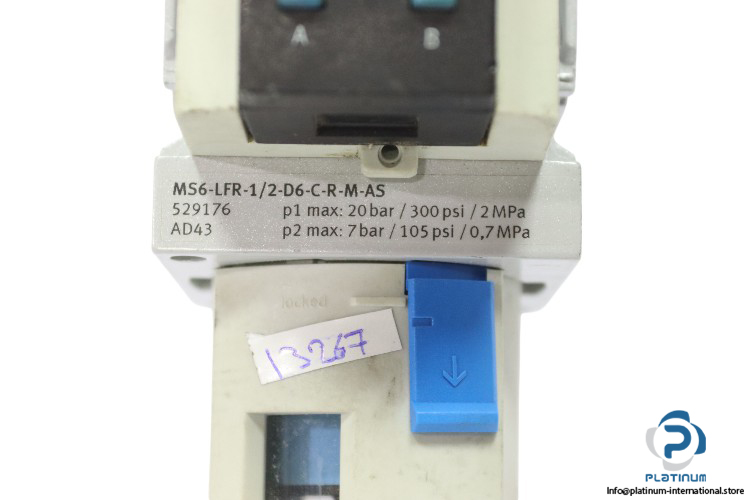

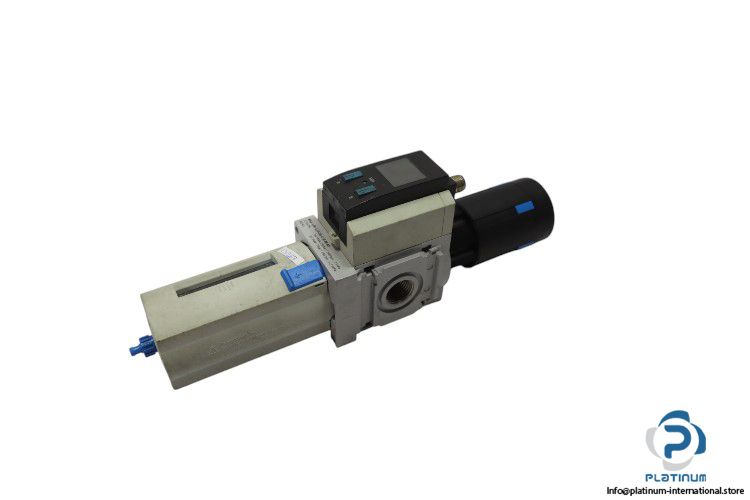

Festo MS6-LFR-1/2-D6-C-R-M-AS “ Filter Regulator
The Festo MS6-LFR-1/2-D6-C-R-M-AS filter regulator is designed for precise pressure control and filtration in industrial pneumatic systems. With a durable die-cast aluminum housing, this unit offers easy condensate drainage and reliable performance across a wide pressure regulation range.
Manufacturer: Festo
Type: Filter Regulator
Model: MS6-LFR-1/2-D6-C-R-M-AS
Part No.: 529176 AD43
Series: MS
Size: 6
| Actuator Lock | Rotary knob with detent, can be closed with accessories |
| Mounting Position | Vertical +/-5 degree |
| Grade of Filtration | 5 µm |
| Condensate Drain | Manually rotating |
| Design | Filter regulator with pressure gauge |
| Max. Condensate Volume | 38 ml |
| Bowl Guard | Plastic bowl guard |
| Operating Pressure | 0.8 bar to 20 bar |
| Pressure Regulation Range | 0.3 bar to 7 bar |
| Standard Nominal Flow Rate | 5600 l/min |
| Material Housing | Die-cast aluminum |
| Pneumatic Connection | G1/2 |
